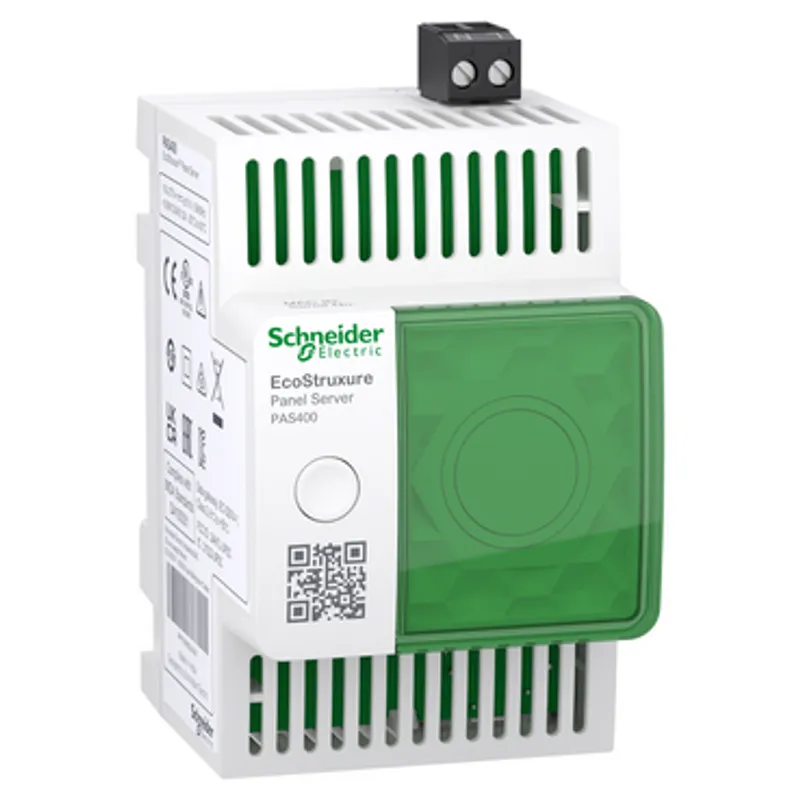

Schneider Electric PAS400
EcoStruxure Panel Server - entry wireless, concentrator 110-277 VAC/DC
- MPN
- PAS400
- EAN
- 3606481014313
- Category
- EcoStruxure™ Panel Server
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric PAS400?
EcoStruxure Panel Server Entry is a gateway, providing connection for wireless smart IoT devices to edge control software or cloud application. Connect wireless devices from Schneider Electric such as PowerTag Energy, PowerLogic HeatTag, PowerTag Ambiant, PowerTag Control and others. User friendly web-pages offer first-level of monitoring of measurements of all the connected devices including log of all predefined alarms. Simple troubleshooting of the system through embedded web-pages with advanced diagnostic information and logs. Easy commissioning through embedded web-pages or with EcoStruxure Power Commission on your laptop, or mobile, that will offer commissioning reports and advanced features. Product dimensions are as follows: width 54 millimeters, depth 70,2 millimeters and height 93 millimeters. From 110 to 277 VAC/DC 50-60Hz 3.5W/12VA Max Power Supply. -25°C to +60°C Operating temperature. 5-95% relative humidity. Major certifications including CE, UL/CSA, IEC61010, UL61010, IEC62974-1, Marine certification, RCM, EAC and UKCA. The gateway can be DIN rail mounted in a modular enclosure. It has IP20 connectors, IP40 front face nose and IP30 on others faces. One 10/100 Base-T Ethernet RJ45 connector. Perfect fit for EcoStruxure Edge Software such as Power Monitoring Expert, Power Operations and EcoStruxure Building Operations. Designed for EcoStruxure Cloud Applications such as Energy Hub, Asset Advisor and Resource Advisor.
Specifications
Specifications
| Range | EcoStruxure |
| Product name | Panel Server Entry |
| Product or component type | Gateway |
| Device short name | PAS400 |
| Device application | Gateway |
| [Us] rated supply voltage | 110...277 V AC 50/60 Hz |
| Communication gateway | Ethernet TCP/IP to wireless devices |
| Product compatibility | Wireless access point |
| Communication port protocol | Modbus TCP, DHCP, HTTPS, NTP/SNTP, IPv4, IPv6, TCP/IP |
| Communication port support | 1 RJ45: ETHERNET |
| Number of server device(s) | 20 wireless (IEEE 802.15.4) product(s) - mixed |
| Number of devices | 64 Modbus TCP/IP |
| Number of inputs | 0 |
| Connections - terminals | Power supply: screw terminal block (top) 1.5…2.5 mm² cable(s), Communication: screw terminal block (bottom) 0.14…1.5 mm² cable(s) |
| Tightening torque | Power supply: 0.6 N.m, Communication: 0.25 N.m |
| Wire stripping length | Power supply: 7 mm, Communication: 7 mm |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Product certifications | CE, cULus, CB, RCM, UKCA, FCC, IC, DNV Marine, ANSI RF, IACS E10 |
| Standards | IEC 61010, IEC 61010-1, IEC 61010-2-201, UL 61010, UL 61010-1, UL 61010-2-201, EN 61010-1, EN 61010-2-201, CAN/CSA C22.2 No. 61010-1-12, CAN/CSA C22.2 No. 61010-2-201, IEC 62974-1, IEC 61326-1, EN 61326-1, ETSI EN 301 489-1, ETSI EN 301 489-17, EN 301-893, EN 55032, CISPR 11, ETSI EN 300 328, IEEE 802.15.4, IEEE 802.11a/b/g/n, IEEE 802.3 af/at, FCC CFR 47 part 15 class A, EN 62311, IEC 62311, ANSI C63.10, EN 62974-1, DNVGL-GC-0339 |
| Depth | 70.2 mm |
| Height | 93 mm |
| Width | 54 mm |
| Net weight | 163 g |
| Data recording | Real time data monitoring |
| Data buffer for data publication (cloud, SFTP, HTTPS) depending on network | 1 month(s) |
| Function available | Embedded web page for configuration and upgrade, Diagnosis capabilities, Diagnostic report, Diagnostics on communication, Energy management, With integrated web server, Firmware update, Backup/restore configuration, Configurable event |
| Product specific application | Wireless Schneider Electric devices ecosystem |
| Web services | HTTPS server, SFTP publication (CSV / JSON), HTTPS publication (CSV / JSON) |
| Communication service | Device Profile for Web Services (DPWS), Modbus TCP server, SNTP client, DHCP client, RSTP |
| Commissioning interface | EcoStruxure Power Commission desktop, EcoStruxure Power Commission Mobile (through Wi-Fi Access point), Web page |
| Realtime clock | With RTC-battery set, With user calibration |
| Time synchronisation protocol | NTP, SNTP |
| Range compatibility | EcoStruxure Facility Expert, EcoStruxure Building Operation, EcoStruxure Power Operation, EcoStruxure Power Monitoring Expert, EcoStruxure Asset Advisor, EcoStruxure Energy Hub, EcoStruxure Resource Advisor, Third party SCADA |
| Communication iinterface | Wireless (IEEE802.15.4) product |
| Relative humidity | 5…95 % |
| IP degree of protection | IP40 (front face), IP20 (casing) |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Pollution degree | 2 |
| Operating altitude | < 2000 m |
Packaging
| Package 1 | 1 PCE, 10.500 cm × 8.500 cm × 6.000 cm (L × W × H), 215.000 g |
| Package 2 | 45 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.300 kg |
