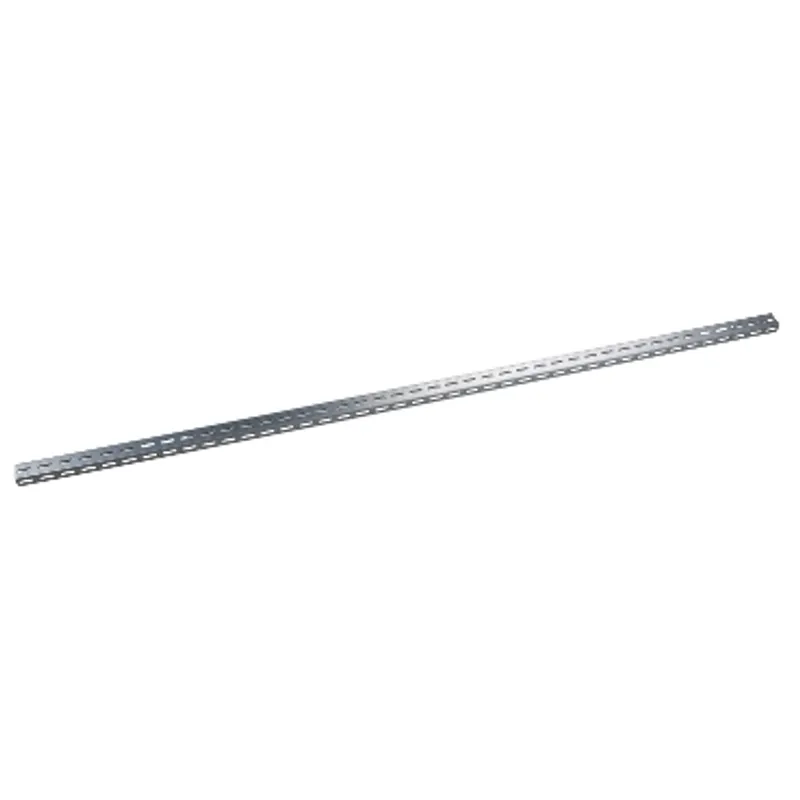

Schneider Electric NSYVR20
Set of 2 standard vertical rails for fixing of chassis and cross rails - 2000 mm
- MPN
- NSYVR20
- EAN
- 3606485133720
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYVR20?
This is a galvanized steel standard upright for PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SFX and PanelSeT SMX electrical enclosures. The height, width and depth are 2000mm, 50mm and 30mm respectively. The real height is 1896mm. The thickness is 2mm. The uprights are used for mounting chassis and fixing wiring accessories. Mounting is adjustable in height every 25mm and adjustable in height every 50mm. It is a set of 2 uprights.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Standard upright |
| device application | Multi-purpose |
| enclosure nominal dimensions | - H: 2000 mm |
| Mounting support | Mounting plate fixing bracket, Upright fixing bracket |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT PanelSeT SM SM, PanelSeT SFX PanelSeT SFX, PanelSeT SMX PanelSeT SMX |
| Device composition | 2 upright |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Adjustment | Adjustable in height every 25 mm, Adjustable in height every 50 mm |
| Length | 1896 mm |
| Height | 2000 mm |
| Width | 50 mm |
| Depth | 30 mm |
| thickness | 2 mm |
Packaging
| Package 1 | 1 PCE, 190.000 cm × 5.000 cm × 3.500 cm (L × W × H), 5.064 kg |
| Package 2 | 140 P2M, 200.000 cm × 120.000 cm × 55.000 cm (L × W × H), 735.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYVR20: frequently asked questions
When can NSYVR20 be shipped?
NSYVR20 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYVR20 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYVR20 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYVR20, subject to availability and destination.
