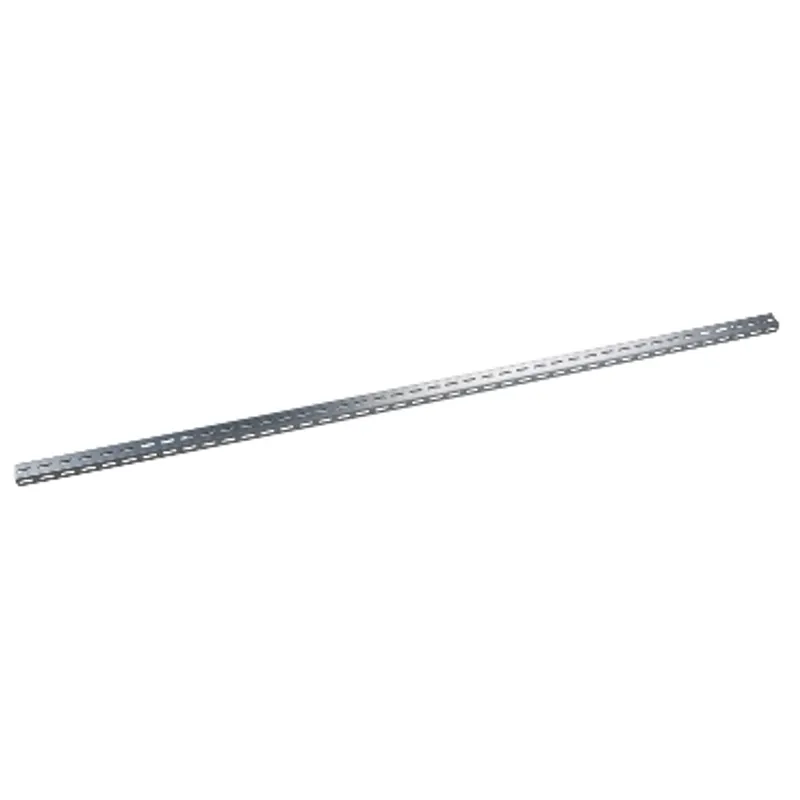

Schneider Electric NSYVR22
Set of 2 standard vertical rails for fixing of chassis and cross rails - 2200 mm
- MPN
- NSYVR22
- EAN
- 3606485133737
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYVR22?
This is a galvanized steel standard upright for PanelSeT SFN, PanelSeT SF, PanelSeT SM, PanelSeT SFX and PanelSeT SMX electrical enclosures. The height, width and depth are 2200mm, 50mm and 30mm respectively. The real height is 2096mm. The thickness is 2mm. The uprights are used for mounting chassis and fixing wiring accessories. Mounting is adjustable in height every 25mm and adjustable in height every 50mm. It is a set of 2 uprights.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Standard upright |
| device application | Multi-purpose |
| enclosure nominal dimensions | - H: 2200 mm |
| Mounting support | Upright fixing bracket, Mounting plate fixing bracket |
| Range compatibility | PanelSeT PanelSeT SF SF, PanelSeT PanelSeT SM SM |
| Device composition | 2 upright |
| Quantity per set | Set of 1 |
| Material | Galvanised steel |
| Adjustment | Adjustable in height every 25 mm, Adjustable in height every 50 mm |
| Length | 2096 mm |
| Height | 2200 mm |
| Width | 50 mm |
| Depth | 30 mm |
| thickness | 2 mm |
Packaging
| Package 1 | 1 PCE, 210.000 cm × 5.500 cm × 3.500 cm (L × W × H), 5.644 kg |
| Package 2 | 120 PAL, 210.000 cm × 120.000 cm × 57.000 cm (L × W × H), 720.000 kg |
