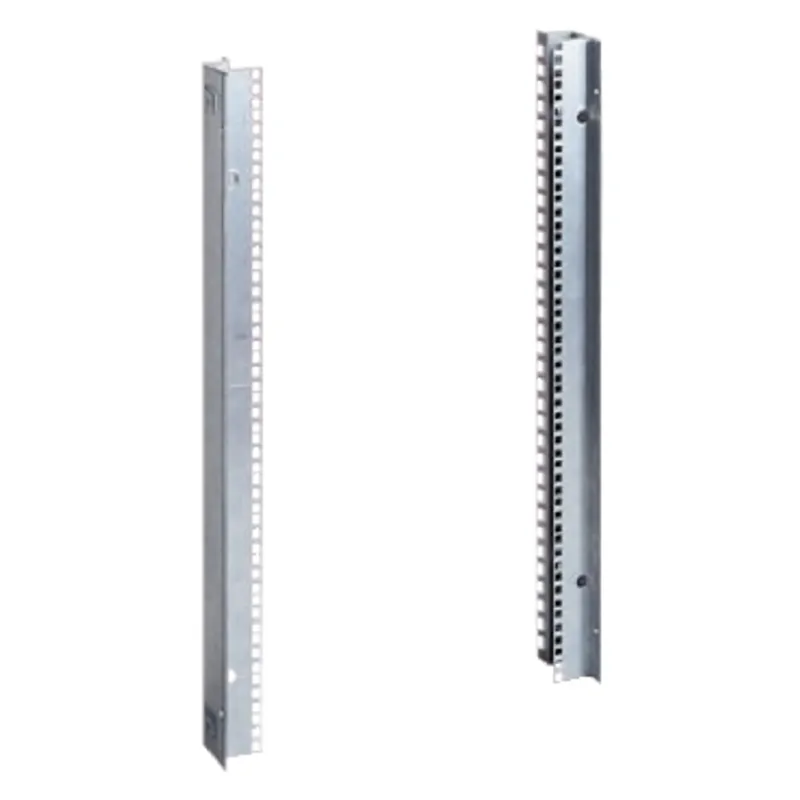

Schneider Electric NSYVDM8UF
19" fixed chassis 8U PanelSeT
- MPN
- NSYVDM8UF
- EAN
- 3606480174766
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYVDM8UF?
Fixed chassis allow mounting rackable electronic equipment with 19" server racks in PanelSeT S3D, PanelSeT S3X, PanelSeT VDM and PanelSeT CRN enclosures The nominal width is 600mm The nominal height is 400mm The depth is 420mm Supports mounting of 8 units Depth adjustable in steps of 12mm The kit supplied with fixing elements and 2 19" uprights The strips are manufactured from 2mm grey galvanised steel (RAL 7035) The product is be mounted on front of enclosure and step slide The permanent permissible load is 3kg per unit Net weight is 2,3kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Mounting accessory |
| Product or component type | 19" rack |
| Application | Electronic application, Multi-purpose |
| For enclosure nominal dimensions | - H: 400 mm W: 600 mm D: 200 mm, - H: 400 mm W: 600 mm D: 250 mm |
| Rack type | Fixed |
| Mounting location | Front of enclosure, Step slide |
| Range compatibility | PanelSeT PanelSeT S3D, PanelSeT PanelSeT S3X, PanelSeT PanelSeT VDM, PanelSeT PanelSeT CRN |
| Device composition | Fixing elements, 2 19" uprights |
| Number of units 19" | 8 |
| Material | Galvanised steel |
| Enclosure/cubicle description | Wall-mounted enclosure |
| fixing mode | By fixing element |
| Adjustment | Adjustable in depth, pitch 12.5 mm, on the step slide |
| Colour | Grey (RAL 7035) |
| Permanent permissible load | 3 kg per unit |
| Height | Nominal: 400 mm |
| Width | Nominal: 600 mm |
| Depth | 420 mm |
| thickness | 2 mm |
| Net weight | 2.3 kg |
Packaging
| Package 1 | 1 PCE, 42.500 cm × 11.000 cm × 7.000 cm (L × W × H), 2.284 kg |
| Package 2 | 160 PAM, 120.000 cm × 100.000 cm × 100.000 cm (L × W × H), 378.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYVDM8UF: frequently asked questions
When can NSYVDM8UF be shipped?
NSYVDM8UF is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYVDM8UF in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYVDM8UF and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYVDM8UF, subject to availability and destination.
