Schneider Electric NSYTSACRND
PanelSeT CRN Insulated 460x163mm RAL7035.
- MPN
- NSYTSACRND
- EAN
- 3606480211539
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTSACRND?

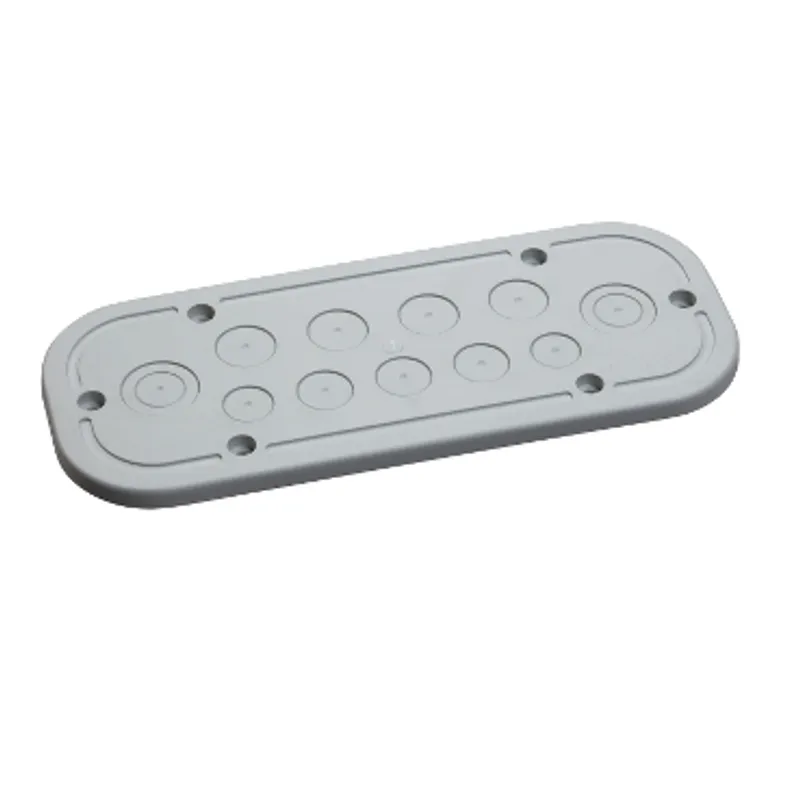

Multi-purpose cable gland plate for PanelSeT CRN enclosures The product is made of polyethylene (PE) foam seal and ABS with 30 % fibre glass plate The plate is 1mm thick The width is 460mm and real width is 480mm The height is 163mm and height is 15mm The depth is 163mm The set contains fixing elements, 1 plate and 1 separated seal The cable gland plate is to be mounted on enclosure bottom
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT CRN PanelSeT CRN |
| Mounting location | Enclosure bottom |
| Cable gland type | Knock-out |
| Cable entry | 2 knock-outs Pg 11, 4 knock-outs Pg 29/16, 2 knock-outs Pg 36/29, 7 knock-outs Pg 13.5, 7 knock-outs Pg 16, 4 knock-outs Pg 21/11 |
| Device composition | Fixing elements, 1 plate, 1 separated seal |
| Quantity per set | Set of 1 |
| Material | Seal: polyethylene (PE) foam, Plate: ABS with 30 % fibre glass |
| Colour | Plate: grey (RAL 7035) |
| Number of cut-out | Pre-marked hole |
| Height | 163 mm, 15 mm |
| Width | 460 mm, Real: 480 mm |
| Depth | 163 mm |
| Net weight | 0.342 kg |
| thickness | 1 mm |
Packaging
| Package 1 | 1 PCE, 48.000 cm × 21.000 cm × 2.000 cm (L × W × H), 342.000 g |
