Schneider Electric NSYTSA2417SE

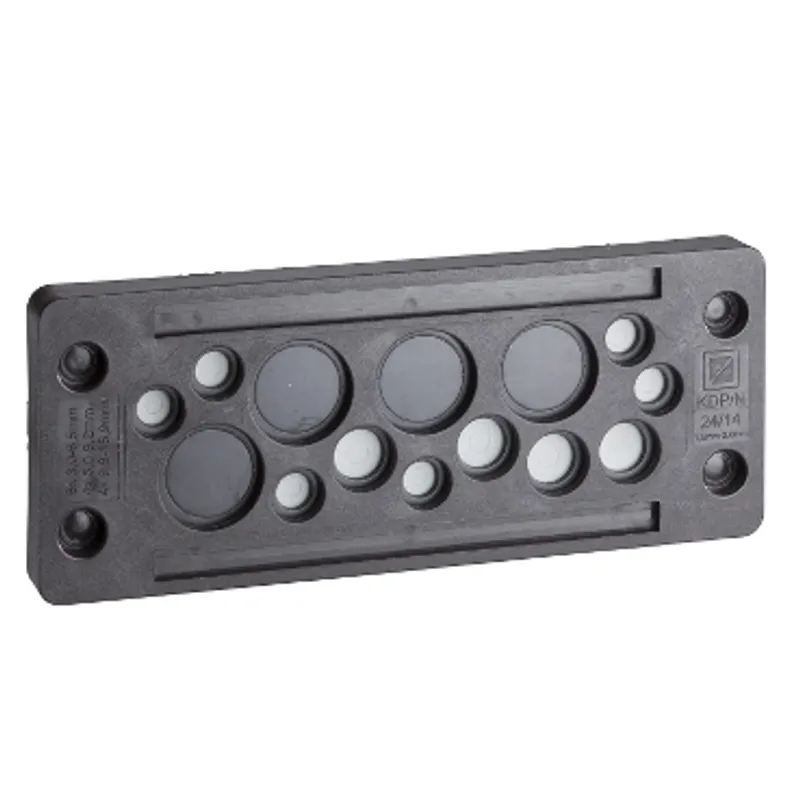

Cable passage IP65 w/o connectors, 17 entries.
- MPN
- NSYTSA2417SE
- EAN
- 3606480168239
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTSA2417SE?
Schneider Electric Cable passage IP65 w/o connectors, 17 entries., manufacturer part number NSYTSA2417SE. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Quick entrance plate |
| Accessory / separate part category | Cable management accessory |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT S3D compact enclosure, PanelSeT CRN compact enclosure, PanelSeT S3CM control enclosure, PanelSeT SBM industrial box, PanelSeT PLA suitable enclosure, PanelSeT PHD suitable enclosure, PanelSeT PLM compact enclosure, PanelSeT PLS insulating modular box, PanelSeT S3HD compact enclosure |
| Device composition | 1 fixing elements, 1 plate |
| Quantity per set | Set of 1 |
| Mounting support | Cable gland plate, Body of enclosure |
| Material | Polyamide |
| Fixing mode | By fixing element |
| Total cable entry number | 17 |
| Cable entry number | 17 x 5…9.2 mm |
| Height | Real: 14 mm |
| Width | Real: 146 mm, Cut-out: 112 mm, Fixing center: 130 mm |
| Depth | Real : 58 mm, Cut-out : 36 mm, Fixing centre : 32 mm |
| Net weight | 0.164 kg |
| IP degree of protection | IP65 |
Packaging
| Package 1 | 1 PCE, 16.500 cm × 8.000 cm × 3.500 cm (L × W × H), 164.000 g |
| Package 2 | 10 CAR, 30.000 cm × 20.000 cm × 20.000 cm (L × W × H), 1.684 kg |
| Package 3 | 400 PAM, 120.000 cm × 100.000 cm × 50.000 cm (L × W × H), 85.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTSA2417SE: frequently asked questions
When can NSYTSA2417SE be shipped?
NSYTSA2417SE is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTSA2417SE in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTSA2417SE and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTSA2417SE, subject to availability and destination.
