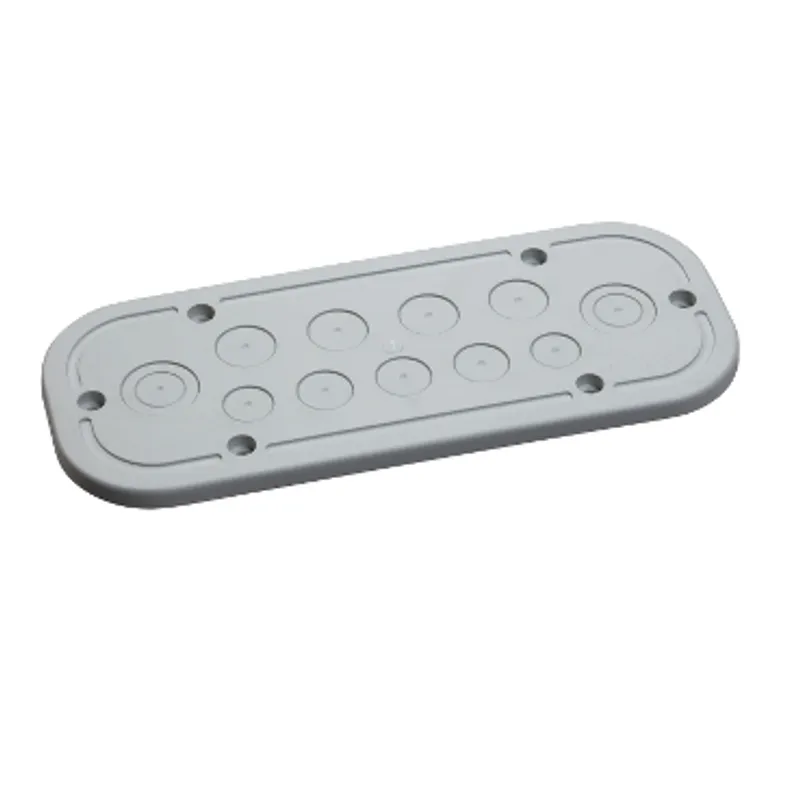

Schneider Electric NSYTSACRNB
PanelSeT CRN Insulated 259x105mm. RAL7035.
- MPN
- NSYTSACRNB
- EAN
- 3606480211553
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTSACRNB?
"Multi-purpose cable gland plate for PanelSeT CRN enclosures" "The product is made of polyethylene (PE) foam seal and ABS with 30 % fibre glass plate" "The plate is 1mm thick" The width is 259mm and real width is 280mm The height is 105mm and height is 15mm The depth is 105mm The set contains fixing elements, 1 plate and 1 separated seal The cable gland plate is to be mounted on enclosure bottom "This product is qualified as a green premium, with minimal use of hazardous substances"
Specifications
Specifications
| Range | PanelSeT |
| Product or component type | Cable gland plate |
| Accessory / separate part category | Cable management accessory |
| Application | Multi-purpose |
| Range compatibility | PanelSeT CRN PanelSeT CRN |
| Mounting location | Enclosure bottom |
| Cable gland type | Knock-out |
| Cable entry | 2 knock-outs Pg 11, 2 knock-outs Pg 21/11, 3 knock-outs Pg 13.5, 4 knock-outs Pg 16, 4 knock-outs Pg 13.5, 5 knock-outs Pg 16, 4 knock-outs Pg 29/16, 2 knock-outs Pg 36/29 |
| Device composition | Fixing elements, 1 plate, 1 separated seal |
| Quantity per set | Set of 1 |
| Material | Seal: polyethylene (PE) foam, Plate: ABS with 30 % fibre glass |
| Colour | Plate: grey (RAL 7035) |
| Number of cut-out | Pre-marked hole |
| Height | 105 mm, 15 mm |
| Width | Real: 280 mm, 259 mm |
| Depth | 105 mm |
| Net weight | 0.14 kg |
| thickness | 1 mm |
Packaging
| Package 1 | 1 PCE, 28.000 cm × 12.500 cm × 2.000 cm (L × W × H), 148.000 g |
