Schneider Electric NSYTRV162SF

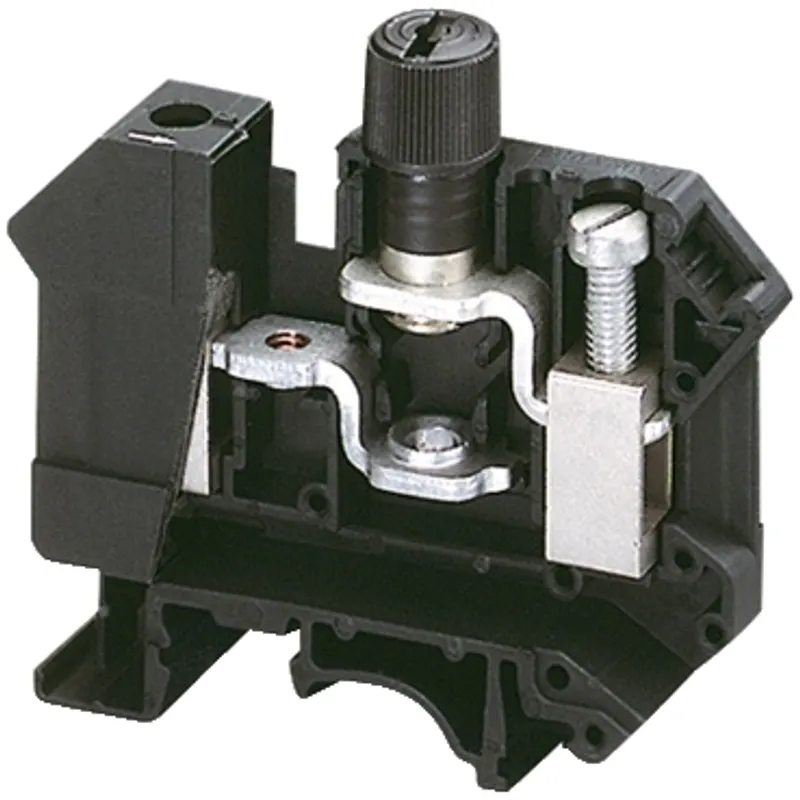

Terminal block, Linergy TR, screw type, fused, screw cap, for 5x20mm cartridge fuse, 2 points
- MPN
- NSYTRV162SF
- EAN
- 3606480532320
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRV162SF?
Linergy TR is terminal block for Linergy. It belongs to linergy fixed carrier terminal block with 16 mm² nominal cross section. The rated operational voltage is 300V conforming to CSA/cURus and 500V conforming to EN/IEC 60947-7-1. The rated current is 10A conforming to EN/IEC 60947-7-1 and 20A conforming to CSA/UL. It has black surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD, PrismaSeT Pack 250, PanelSeT, Mureva Enclosure, PrismaSeT XS, Tesys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA, DNV). Multi standards certified (CSA, cURus, DNV, LR, EAC). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Terminal block type | Fixed carrier |
| Device application | Protection |
| Associated connection component | Cylindrical fuse |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 16 mm² |
| Length | 62 mm |
| Colour | Black |
| Quantity per set | Set of 50 |
| Fuse size | 5 x 20 mm |
| Width | 12 mm |
| Height | 57.2 mm |
| Connections - terminals | 1 x screw terminal: upstream, 1 x screw terminal: downstream |
| number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | 0 |
| Cable cross section | 1.5…16 mm², flexible with cable end, 0.08…2.5 mm², flexible without cable end, 0.5…16 mm², solid without cable end |
| Tightening torque | 1.5…1.8 N.m |
| Wire stripping length | 11 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| [Ue] rated operational voltage | 500 V conforming to EN/IEC 60947-7-1, 300 V UL, 300 V CSA |
| [In] rated current | 10 A conforming to EN/IEC 60947-7-1, 20 A UL, 20 A CSA |
| Material | Polyamide 6/6: insulating case |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 Ω.cm conforming to IEC 60093, 10000 Ω.cm conforming to VDE 0303-T30 |
| Surface resistance | 1000 MOhm conforming to IEC 60093, 1000 MOhm conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 33.8 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PrismaSeT Pack 250, PanelSeT, Mureva, PrismaSeT XS, TeSys |
| Product compatibility | Spacial enclosures |
| Product certifications | DNV, UL, CSA |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 6.500 cm × 5.700 cm × 1.200 cm (L × W × H), 33.000 g |
| Package 2 | 50 BB1, 31.000 cm × 13.500 cm × 6.500 cm (L × W × H), 1.690 kg |
