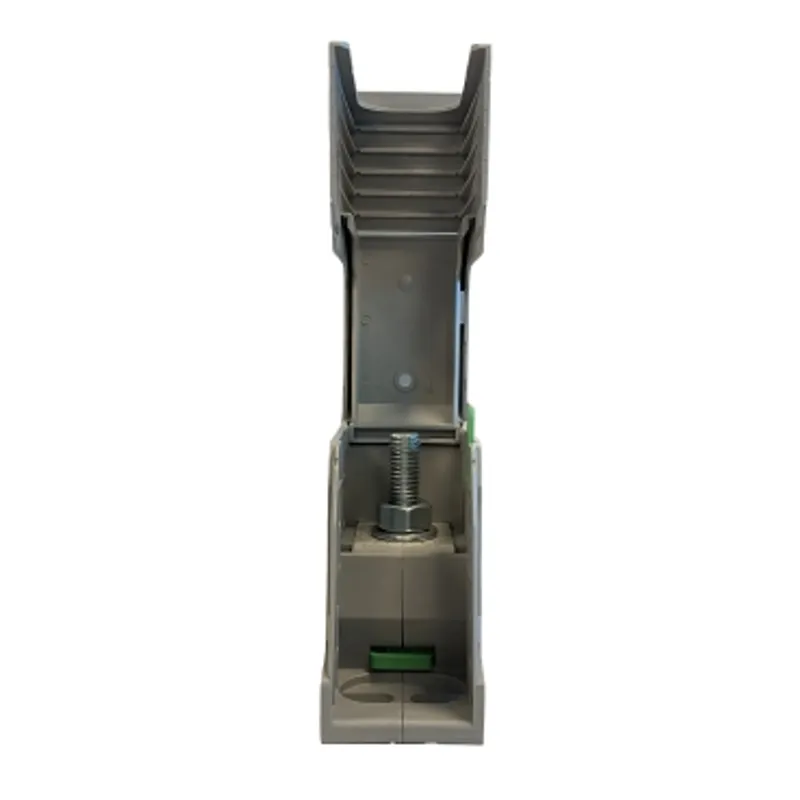

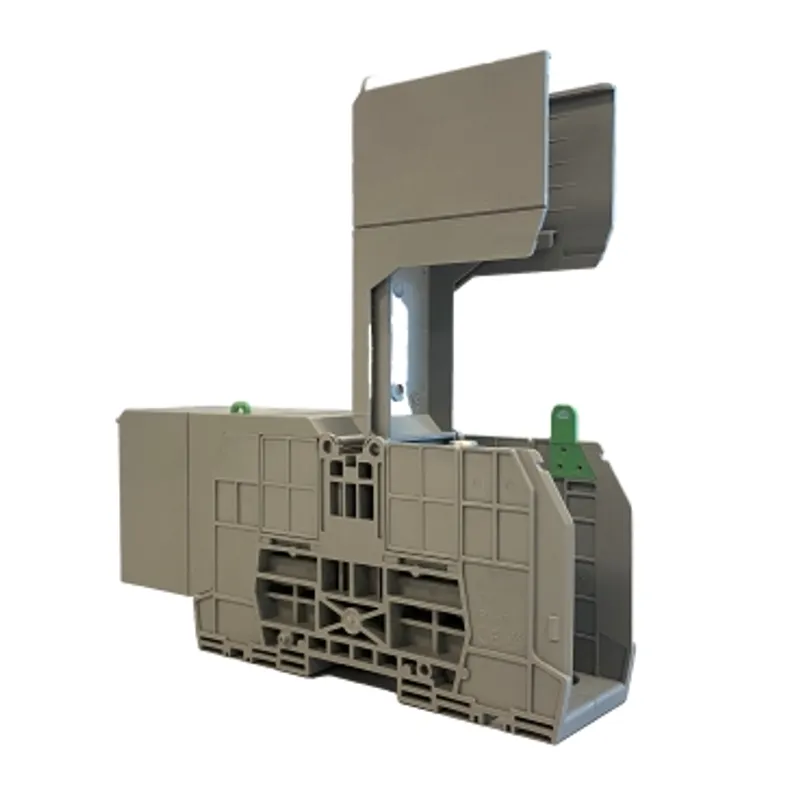

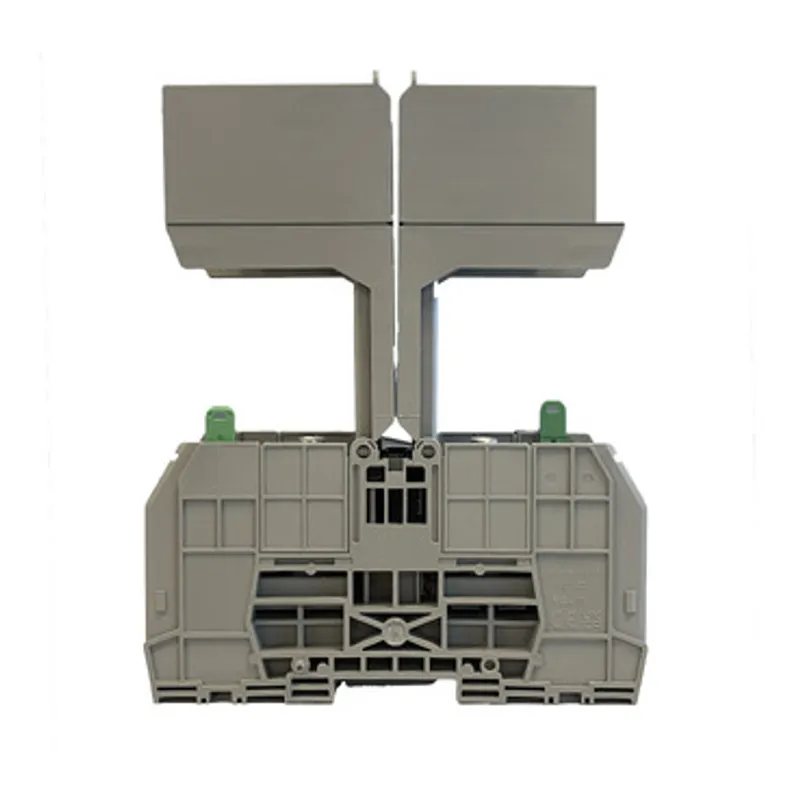

Schneider Electric NSYTRV1502B
Screw terminal, Linergy TR terminals blocks, feed through, 2 points, lug-connector, 150mm², grey
- MPN
- NSYTRV1502B
- EAN
- 3606482179806
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRV1502B?
Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 150 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/UL and 1500V conforming to EN/IEC 60947-7-1. The rated current is 309A conforming to EN/IEC 60947-7-1 and 310A conforming to CSA/UL. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 lug to lug terminals. It could be connection and disconnection by screwdriver. It is compatible with enclosures for PrismaSeT G, PrismaSeT P, PrismaSeT HD and PanelSeT. Sold in lots of 5 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (UL, CSA).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Accessory / separate part category | Connection accessory |
| Terminal block type | Passthrough |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 150 mm² |
| Length | 235 mm |
| Colour | Grey |
| Quantity per set | Set of 5 |
| Width | 41 mm |
| Height | 84.5 mm |
| Connections - terminals | 1 x lug: upstream (M10), 1 x screw terminal: downstream (M10) |
| number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | 0 |
| Cable cross section | 6…150 mm², solid, 6…150 mm², flexible without cable end |
| Tightening torque | 10…20 N.m upstream, 10…20 N.m downstream |
| Wire stripping length | 29 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| [Ue] rated operational voltage | 1100 V IECEx conforming to EN/IEC 60947-7-1, 600 V UL recognized, 600 V CSA |
| [In] rated current | 309 A IECEx conforming to EN/IEC 60947-7-1, 310 A UL recognized, 310 A CSA |
| Material | Polyamide 6/6: insulating case, Copper alloy: connector and screw, Copper alloy: commoning link, Chromium-nickel steel: spring |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSet HD, PanelSeT |
| Product compatibility | Spacial enclosures |
| Product certifications | GL, CSA, UL |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -60…105 °C conforming to IEC 60947-1 |
Packaging
| Package 1 | 1 PCE, 23.500 cm × 8.200 cm × 4.500 cm (L × W × H), 276.000 g |
| Package 2 | 5 BB1, 26.000 cm × 24.000 cm × 9.300 cm (L × W × H), 1.622 kg |
| Package 3 | 180 S06, 80.000 cm × 60.000 cm × 75.000 cm (L × W × H), 69.392 kg |
