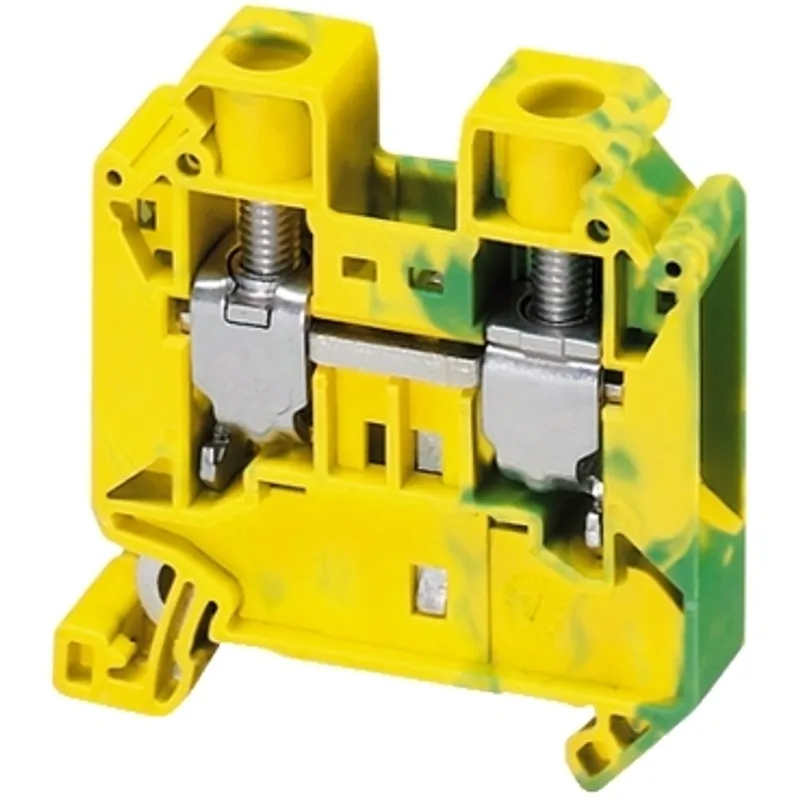

Schneider Electric NSYTRV162PE
Terminal block, Linergy TR, green-yellow, 16mm², protective earth, 2 points, Set of 50
- MPN
- NSYTRV162PE
- EAN
- 3606480532146
- Category
- Linergy TR terminals blocks
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYTRV162PE?
Linergy TR is terminal block for Linergy. It belongs to linergy earth terminal block with 16 mm² nominal cross section. It has green-yellow surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
Specifications
Specifications
| Range | Linergy |
| Product name | Linergy TR |
| Product or component type | Terminal block |
| Device short name | TRV |
| Terminal block type | Protective earth |
| Terminal block level | 1 |
| Mounting mode | Clip-on |
| Nominal cross section | 16 mm² |
| Length | 55.5 mm |
| Colour | Green-yellow |
| Quantity per set | Set of 50 |
| Width | 12.2 mm |
| Height | 55 mm |
| Connections - terminals | 1 x screw terminal: upstream, 1 x screw terminal: downstream |
| number of connections | 2 |
| Connection position | Sideways |
| Number of measurement input | 2 |
| Cable cross section | 1.5…25 mm², solid, 1…16 mm², flexible with cable end, 1.5…25 mm², flexible without cable end |
| Tightening torque | 2.5…3 N.m |
| Wire stripping length | 14 mm |
| Tool type | Connection: screwdriver, Disconnection: screwdriver |
| [In] rated current | 101 A conforming to EN/IEC 60947-7-1 |
| Material | Polyamide 6/6: insulating case |
| Dielectric loss | 0.01 at 1 MHz conforming to IEC 60250, 0.01 at 1 MHz conforming to VDE 0303-T4 |
| Dielectric constant | 3.7 at 1 MHz |
| Resistivity | 10000 MΩ.m conforming to IEC 60093, 10000 MΩ.m conforming to VDE 0303-T30 |
| Surface resistance | 1000 GΩ conforming to IEC 60093, 1000 GΩ conforming to VDE 0303-T30 |
| Creep resistance | 500 CTI (> 400 kB) conforming to IEC 60093, 500 CTI (> 400 kB) conforming to VDE 0303-T30 |
| Flame retardance | V0, thickness0.8 mm conforming to UL 94 |
| Net weight | 46.85 g |
| Range compatibility | PrismaSeT G, PrismaSeT P, PrismaSeT Pack 250, PanelSeT, TeSys, Mureva, PrismaSeT XS, PrismaSet HD |
| Product compatibility | Spacial enclosures |
| Product certifications | GL, DNV, VDE, UL, CSA |
| Dielectric strength | 1000 V conforming to IEC 60243-1 |
| Ambient air temperature for operation | -40…130 °C conforming to IEC 60216-1, -40…130 °C conforming to VDE 0304-T21 |
Packaging
| Package 1 | 1 PCE, 9.125 cm × 11.000 cm × 9.300 cm (L × W × H), 47.000 g |
| Package 2 | 50 BB1, 36.500 cm × 11.000 cm × 9.300 cm (L × W × H), 2.396 kg |
| Package 3 | 200 S03, 40.000 cm × 30.000 cm × 30.000 cm (L × W × H), 10.150 kg |
