ABS industrial box, PanelSeT TBS, 121x87x164mm, int. 105x80x150mm, low plain cover, IP66, IK07, RAL 7035

Name: Schneider Electric NSYTBS16128 – ABS industrial box, PanelSeT TBS, 121x87x164mm, int. 105x80x150mm, low plain cover, IP66, IK07, RAL 7035
Brand: Schneider Electric
SKU: NSYTBS16128

MPN: NSYTBS16128 · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Enclosures
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.32 kg

Shipping & availability

When can NSYTBS16128 be shipped?

NSYTBS16128 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYTBS16128 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYTBS16128 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBS16128, subject to availability and destination.

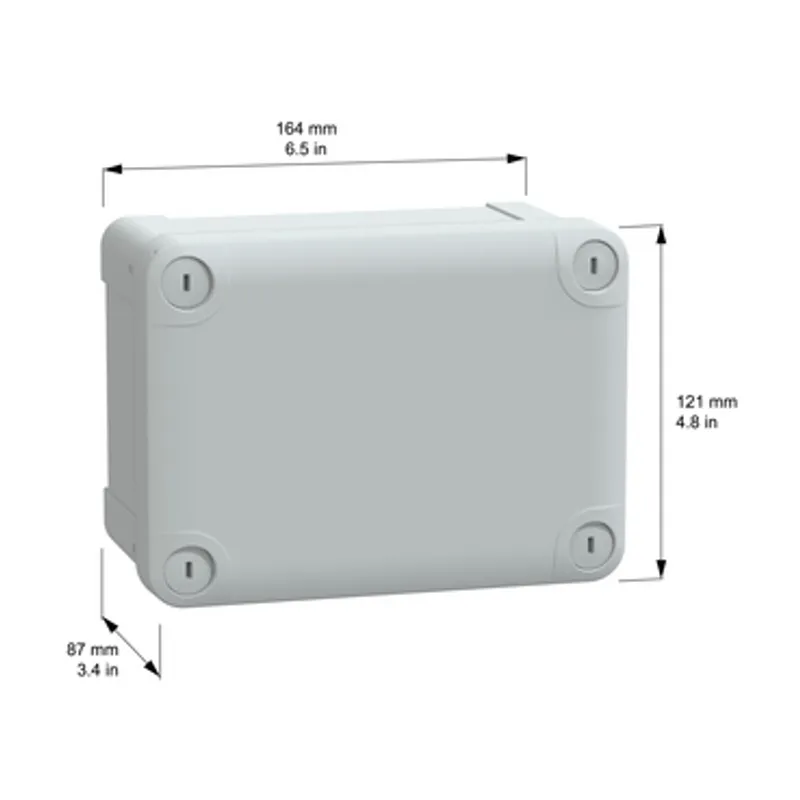

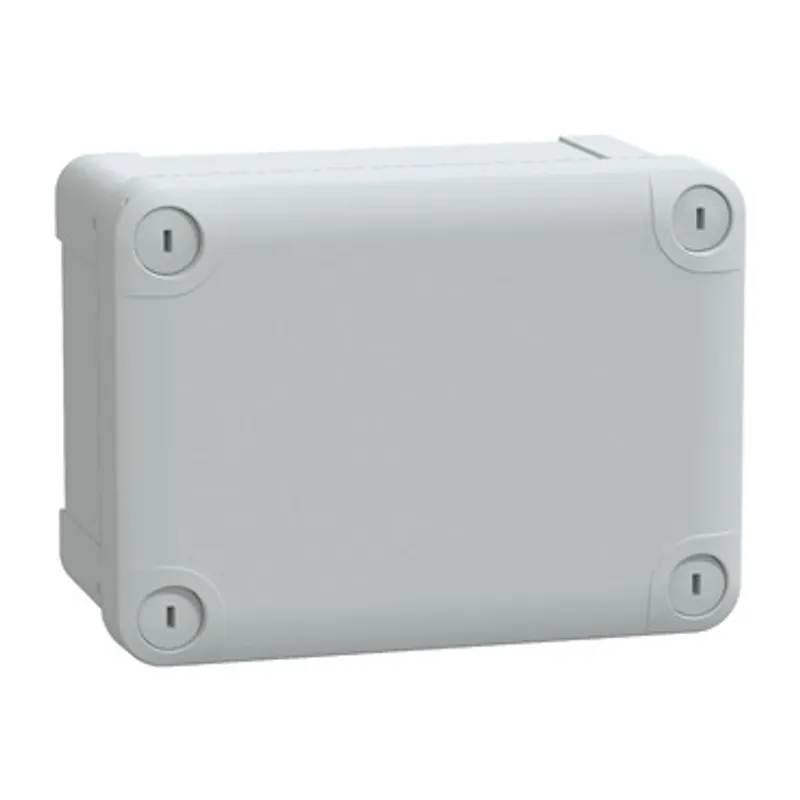

This TBS is a multi-purpose wall-mounted box made of ABS It has a height, width, and depth of 164 mm, 121 mm, and 87 mm, respectively The internal dimensions of the box are 150 mm x 105 mm x 80 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures The box comes in a grey (RAL 7035) color It has a low plain cover that is fixed with captive flat screws The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions

Specifications

Range	PanelSeT
Device application	Multi-purpose
Category	Industrial box
Height	164 mm
Width	121 mm
Depth	87 mm
Internal height	150 mm
Internal width	105 mm
Internal depth	80 mm
Enclosure mounting	Wall mounted
Device composition	1 body, 1 cover, 4 cover screw
Quantity per set	Set of 2
Body type	One piece moulded
Type of front cover	Low plain cover
Cover fixing	Plastic screws
Lock type	Captive screw flat outside sealed area
Removable parts	Cover by captive screws
Material	ABS with 45% of post-industrial recycled content
Colour	Grey (RAL 7035)
Standards	IEC 62208
Product certifications	TÜV
Electrical insulation class	Class II
IP degree of protection	IP66 conforming to NEMA 4.4X
IK degree of protection	IK07 conforming to IEC 62262
Glow wire resistance	650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage	-15…40 °C
Operating temperature	-25…60 °C
Net weight	0.32 kg
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	8.700 cm
Package 1 Width	12.100 cm
Package 1 Length	16.400 cm
Package 1 Weight	320.000 g
Unit Type of Package 2	CAR
Number of Units in Package 2	32
Package 2 Height	40.000 cm
Package 2 Width	40.000 cm
Package 2 Length	60.000 cm
Package 2 Weight	11.220 kg
Unit Type of Package 3	P12
Number of Units in Package 3	384
Package 3 Height	134.500 cm
Package 3 Width	80.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	143.500 kg
