ABS industrial box, PanelSeT TBS, 93x72x138mm, int. 80x65x125mm, low transparent cover, IP66, IK07, RAL 7035

Name: Schneider Electric NSYTBS1397T – ABS industrial box, PanelSeT TBS, 93x72x138mm, int. 80x65x125mm, low transparent cover, IP66, IK07, RAL 7035
Brand: Schneider Electric
SKU: NSYTBS1397T

MPN: NSYTBS1397T · Brand: Schneider Electric

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Enclosures
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)
Weight	0.23 kg

Shipping & availability

When can NSYTBS1397T be shipped?

NSYTBS1397T is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYTBS1397T in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYTBS1397T and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBS1397T, subject to availability and destination.

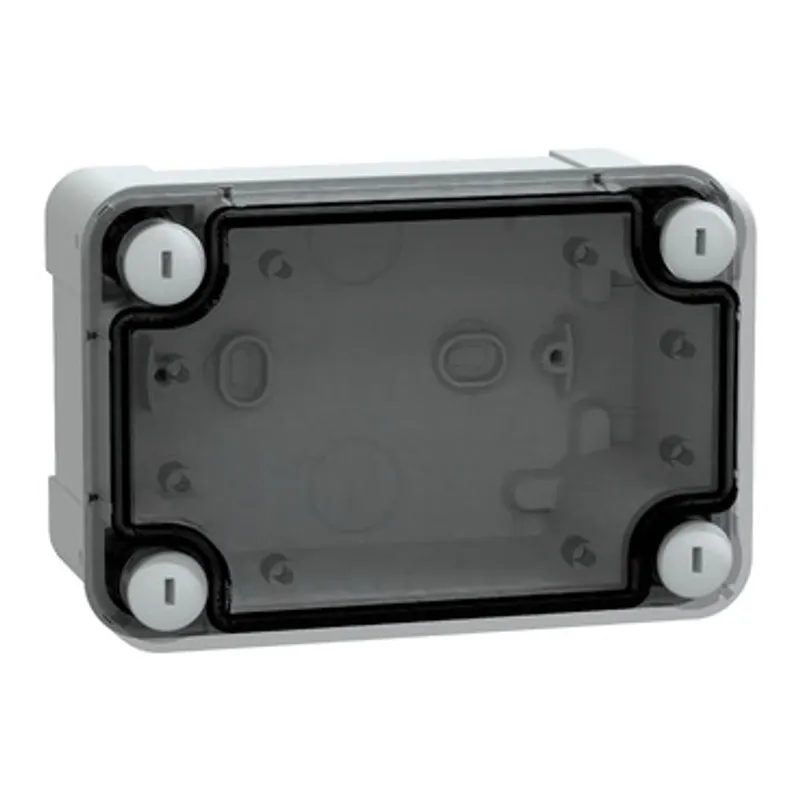

This TBS is a wall-mounted box made of ABS that is suitable for multi-purpose applications The box has a height, width, and depth of 138 mm, 93 mm, and 72 mm, respectively The internal dimensions of the box are 125 mm x 80 mm x 65 mm The box is made of ABS (acrylonitrile butadiene-styrene), which offers resistance to impact and high temperatures The box comes in a grey (RAL 7035) and transparent color It has a low transparent cover that is fixed with captive flat screws The box has a class II electrical insulation that prevents electric shocks and allows the building of totally insulated solutions

Specifications

Range	PanelSeT
Device application	Multi-purpose
Category	Industrial box
Height	138 mm
Width	93 mm
Depth	72 mm
Internal height	125 mm
Internal width	80 mm
Internal depth	65 mm
Enclosure mounting	Wall mounted

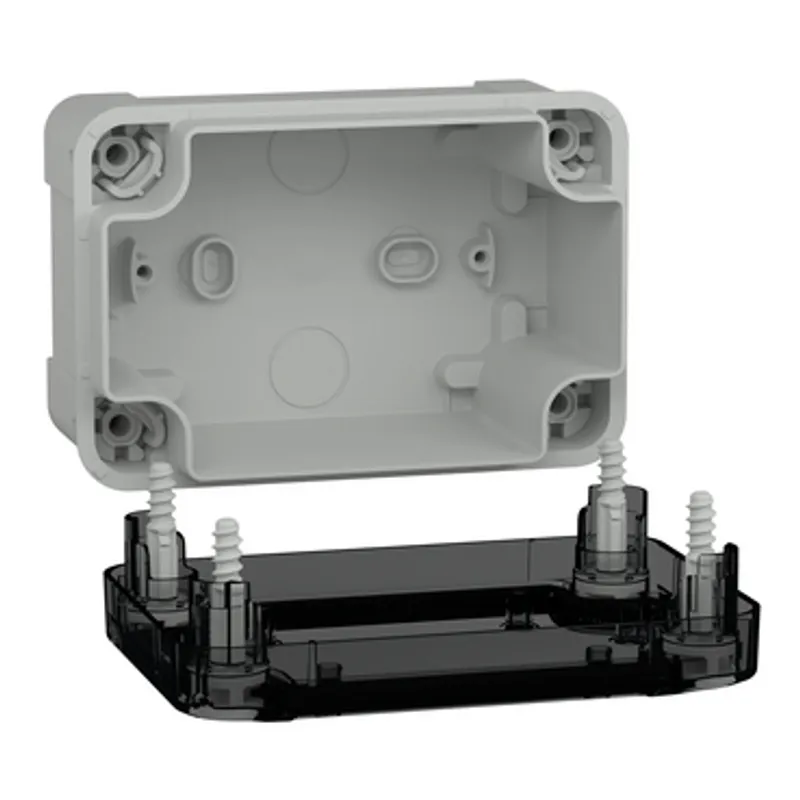

Device composition	1 body, 1 cover, 4 cover screw
Quantity per set	Set of 2
Body type	One piece moulded
Type of front cover	Low transparent cover
Cover fixing	Plastic screws
Lock type	Captive screw flat outside sealed area
Removable parts	Cover by captive screws
Material	ABS with 45% of post-industrial recycled content
Colour	Grey (RAL 7035), Transparent
Standards	IEC 62208
Product certifications	TÜV
Electrical insulation class	Class II
IP degree of protection	IP66 conforming to NEMA 4.4X
IK degree of protection	IK07 conforming to IEC 62262
Glow wire resistance	650 °C conforming to IEC 60695-2-11
Ambient air temperature for storage	-15…40 °C
Operating temperature	-25…60 °C
Net weight	0.23 kg
Unit Type of Package 1	PCE
Number of Units in Package 1	1
Package 1 Height	7.200 cm
Package 1 Width	9.300 cm
Package 1 Length	13.800 cm
Package 1 Weight	230.000 g
Unit Type of Package 2	CAR
Number of Units in Package 2	58
Package 2 Height	40.000 cm
Package 2 Width	40.500 cm
Package 2 Length	60.500 cm
Package 2 Weight	14.560 kg
Unit Type of Package 3	PAM
Number of Units in Package 3	1450
Package 3 Height	215.000 cm
Package 3 Width	100.000 cm
Package 3 Length	120.000 cm
Package 3 Weight	379.000 kg
Warranty	18 months
