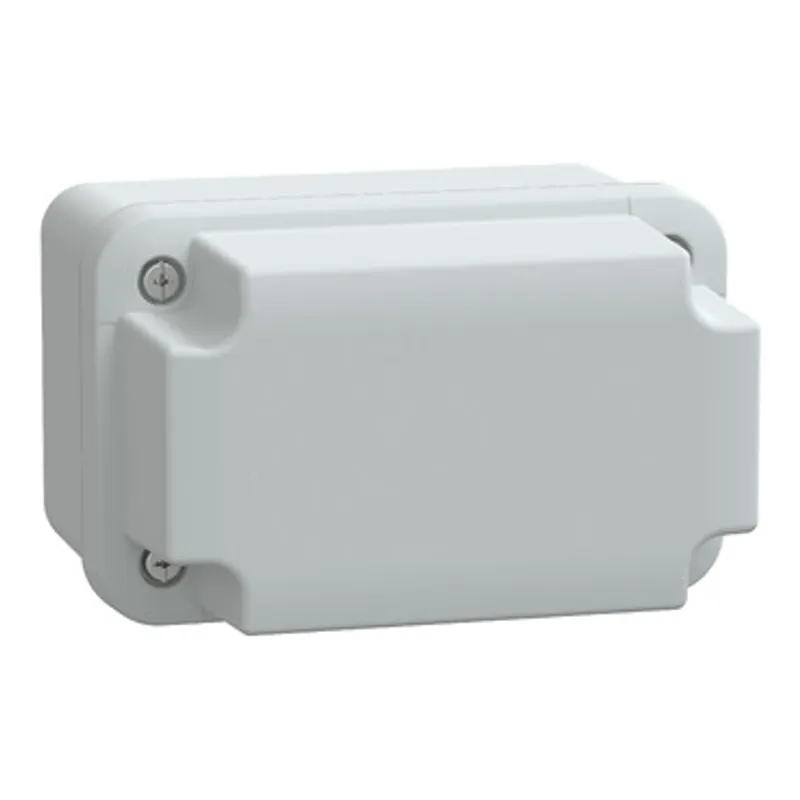

Schneider Electric NSYTBS1179H
ABS industrial box, PanelSeT TBS, 116x94x116mm, int. 65x85x105mm, high plain cover, IP66, IK07, RAL 7035
- MPN
- NSYTBS1179H
- EAN
- 3606480165238
- Category
- Enclosures
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYTBS1179H?

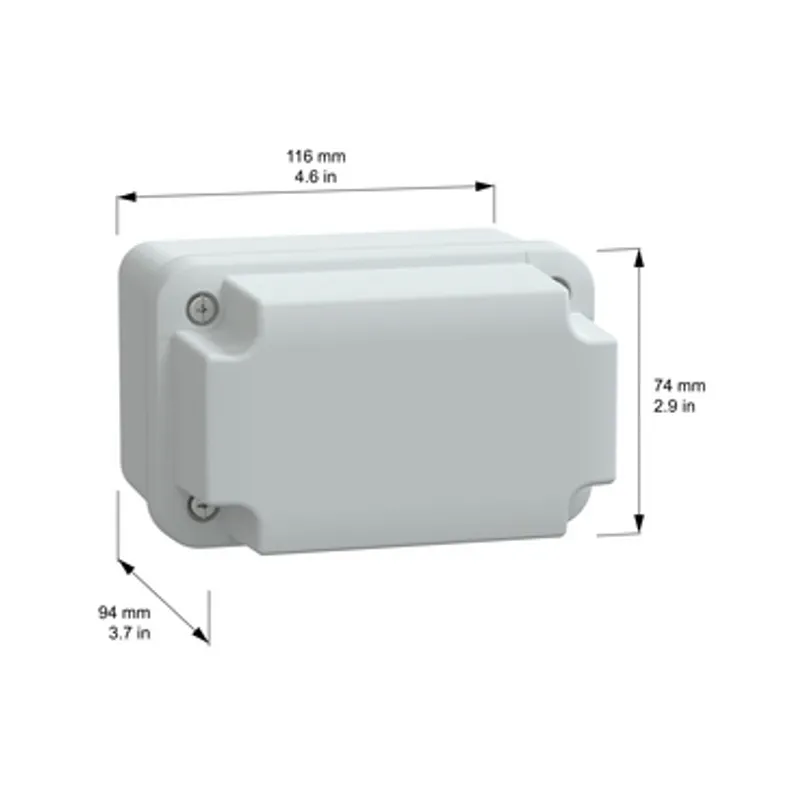

This TBS is a multi-purpose wall-mounted box made of ABS (acrylonitrile butadiene-styrene) It has a height, width, and depth of 116 mm, 116 mm, and 94 mm, respectively The internal dimensions of the box are 105 mm x 65 mm x 85 mm It comes in a grey (RAL 7035) color and has a high plain cover that is fixed with captive flat screws The box is certified by TÜV and has a class II electrical insulation that prevents electric shocks It is also fire resistant up to 650°C in accordance with IEC 60695-2-11 standard and offers high protection against dust and water with an IP66 rating (NEMA 4,4X) and impact resistance with an IK07 rating (IEC 62262) The box can be stored in ambient air temperatures ranging from -15 to 40°C and used in ambient air temperature ranging from -25 to 60 °C without affecting its performance
Specifications
Specifications
| Range | PanelSeT |
| Device application | Multi-purpose |
| Category | Industrial box |
| Height | 116 mm |
| Width | 116 mm |
| Depth | 94 mm |
| Internal height | 105 mm |
| Internal width | 65 mm |
| Internal depth | 85 mm |
| Enclosure mounting | Wall mounted |

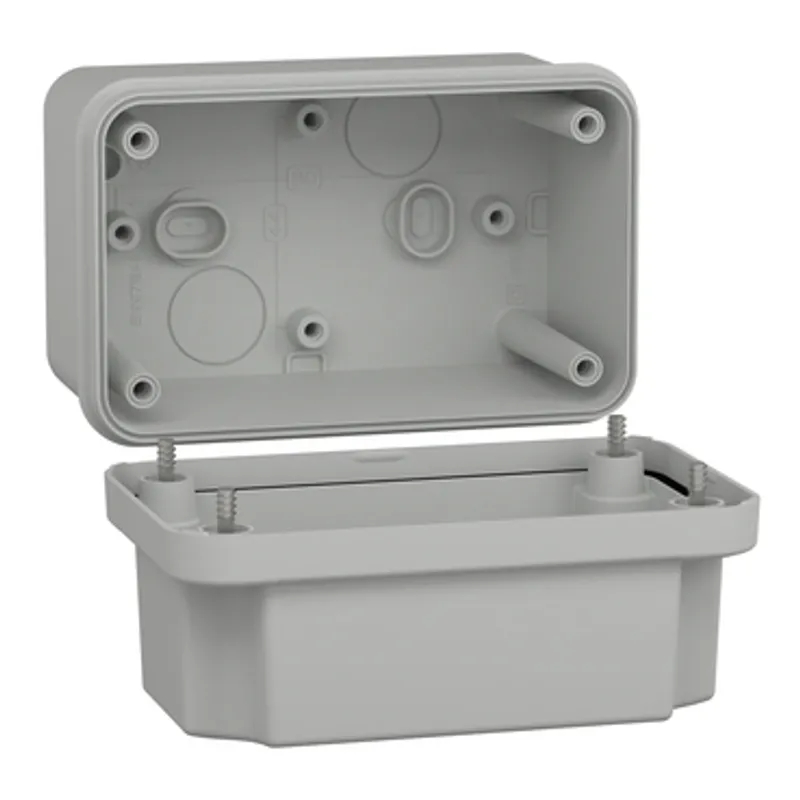

| Device composition | 1 body, 1 cover, 4 cover screw |
| Quantity per set | Set of 3 |
| Body type | One piece moulded |
| Type of front cover | High plain cover |
| Cover fixing | Plastic screws |
| Lock type | Captive screw flat outside sealed area |
| Removable parts | Cover by captive screws |
| Material | ABS with 45% of post-industrial recycled content |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | TÜV |
| Electrical insulation class | Class II |
| IP degree of protection | IP66 conforming to NEMA 4.4X |
| IK degree of protection | IK07 conforming to IEC 62262 |
| Glow wire resistance | 650 °C conforming to IEC 60695-2-11 |
| Ambient air temperature for storage | -15…40 °C |
| Operating temperature | -25…60 °C |
| Net weight | 0.146 kg |
Packaging
| Package 1 | 1 PCE, 11.700 cm × 7.400 cm × 9.400 cm (L × W × H), 146.000 g |
| Package 2 | 63 CAR, 60.000 cm × 40.000 cm × 40.000 cm (L × W × H), 9.920 kg |
| Package 3 | 756 P12, 120.000 cm × 80.000 cm × 135.000 cm (L × W × H), 133.000 kg |
No matching specifications
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYTBS1179H: frequently asked questions
When can NSYTBS1179H be shipped?
NSYTBS1179H is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYTBS1179H in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYTBS1179H and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYTBS1179H, subject to availability and destination.
