Schneider Electric NSYSQCR12080

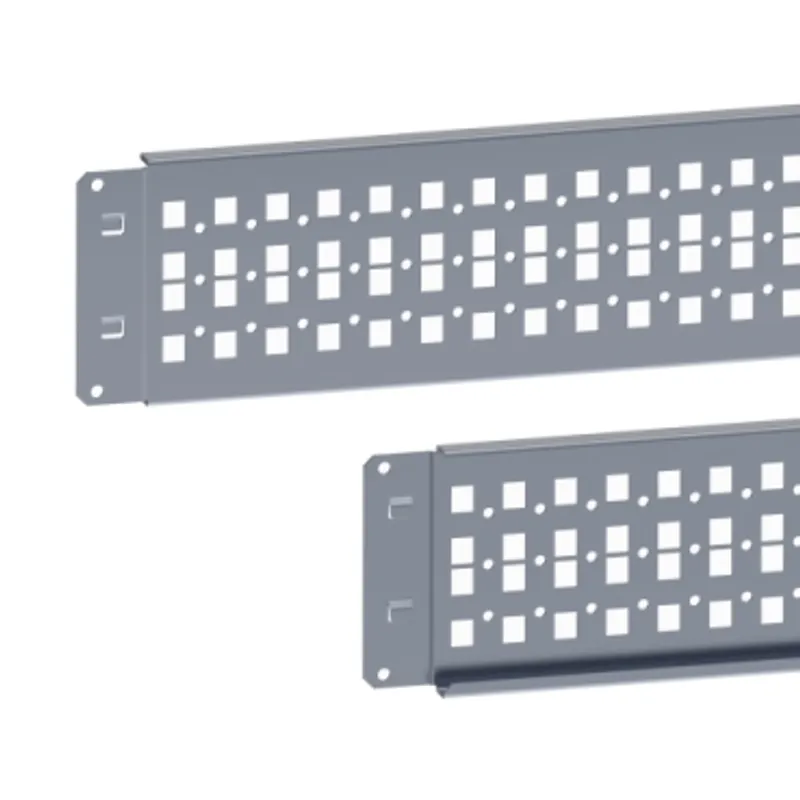

Quick fixing cross rails, PanelSeT SFN, SM, Spacial SF, H120 W800mm
- MPN
- NSYSQCR12080
- EAN
- 3606480372070
- Category
- PanelSet SF
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSQCR12080?
"This set of two quick-fixing cross rail is suitable for PanelSeT SFN, PanelSeT SF, PanelSeT SM and PanelSeT SFX electrical enclosures." "They are used for the creation of structures inside the enclosure." "These mounting elements are made of galvanized steel. They have a nominal width of 120 mm and a nominal length of 120 mm." "Each row is perforated every 25 mm with a 5.2 mm diameter hole and a 11x13 mm." "They are fixed by means of caged nuts or self-tapping screws, and can be adjusted with a pitch of 25 mm." "The set consists of two cross rails and fixing elements."
Specifications
Specifications
| Range | PanelSeT |
| Offer type | Spare part |
| Accessory / separate part category | Mounting accessory |
| Product or component type | Quick cross rails |
| Application | Multi-purpose |
| Nominal dimensions of the housing | - |
| Range compatibility | PanelSeT PanelSeT SF |
| Mounting location | On structure of enclosure |
| Mounting support | Adaptation profile, on SM enclosures |
| Installation direction | Depth |
| Device composition | Fixing elements, 2 cross rails |
| Quantity per set | Set of 1 |
| Material | Steel |
| Surface finish | Galvanized |
| Fixing mode | By screws, Clipped - on structure location |
| Adjustment | Adjustable with a pitch of 25 mm |
| Number of horizontal rows | 4 |
| Maximum load | 100 kg |
| Height | Nominal: 800 mm, Useful: 700 mm |
| Width | 120 mm |
| Depth | 20 mm |
| thickness | 1.5 mm |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 79.000 cm × 15.500 cm × 3.000 cm (L × W × H), 2.386 kg |
| Package 2 | 25 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 59.650 kg |
