Schneider Electric NSYSPSX6100

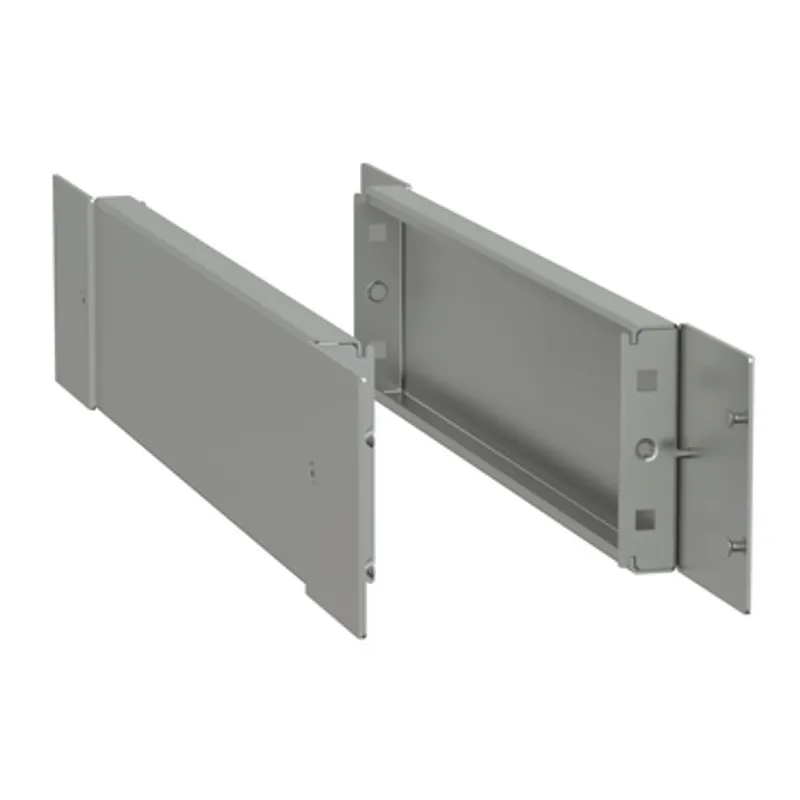

PanelSeT -side plinth - H100 D600 stainless steel 304L

MPN: NSYSPSX6100
EAN: 3606480626067
Category: PanelSeT SMX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPSX6100?

Plinth side panel to be used with PanelSeT SD, PanelSeT S3HD and PanelSeT SMX enclosures The plinth side panel is to be used in multi-purpose applications The width is 115mm The height is 100mm The nominal depth is 600mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of Material : Stainless steel Net weight is 1,89kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth side panel
Application	Multi-purpose
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 side panel
Range compatibility	PanelSeT PanelSeT SD SD, PanelSeT S3HD, PanelSeT SMX PanelSeT SMX
Mounting support	Front plinth
Fixing mode	By screws
Material	Stainless steel 304L
Surface finish	Untreated
Height	100 mm
Width	115 mm
Depth	Nominal : 600 mm
Net weight	1.89 kg
IP degree of protection	IP20 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 41.000 cm × 10.500 cm × 6.000 cm (L × W × H), 2.206 kg
Package 2	96 PAM, 120.000 cm × 100.000 cm × 49.000 cm (L × W × H), 225.000 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPSX6100PDF

NSYSPSX6100: frequently asked questions

When can NSYSPSX6100 be shipped?

NSYSPSX6100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSPSX6100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSPSX6100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPSX6100, subject to availability and destination.
