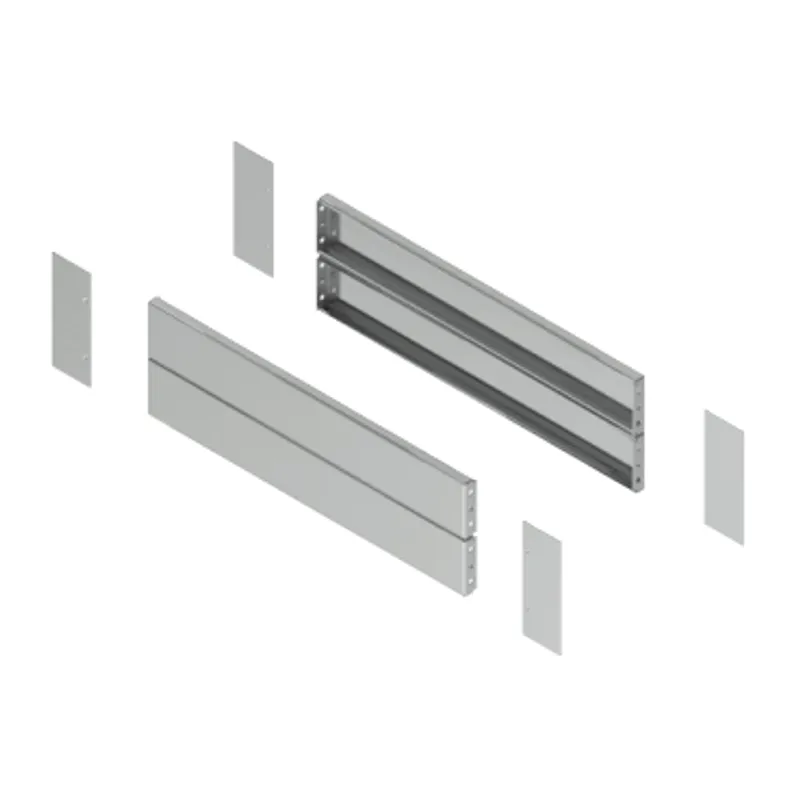

Schneider Electric NSYSPSX5200SF

PanelSeT -side plinth - H200 D500 stainless steel 304L

MPN: NSYSPSX5200SF
EAN: 3606480626319
Category: PanelSeT SFX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPSX5200SF?

Plinth side panel to be used with PanelSeT SF, PanelSeT SM and PanelSeT SFHD enclosures The plinth side panel is to be used in multi-purpose applications The height is 200mm The nominal depth is 500mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of Material : Stainless steel Net weight is 2,77kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth side panel
Application	Multi-purpose
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 side panel
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM, PanelSeT PanelSeT SFHD SFHD
Mounting support	Front plinth
Fixing mode	By screws
Material	Stainless steel 304L
Surface finish	Untreated
Height	200 mm
Depth	Nominal : 500 mm
Net weight	2.77 kg
IP degree of protection	IP30 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 34.500 cm × 20.500 cm × 6.000 cm (L × W × H), 3.912 kg
Package 2	5 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 19.560 kg
