Schneider Electric NSYSPSX5100H

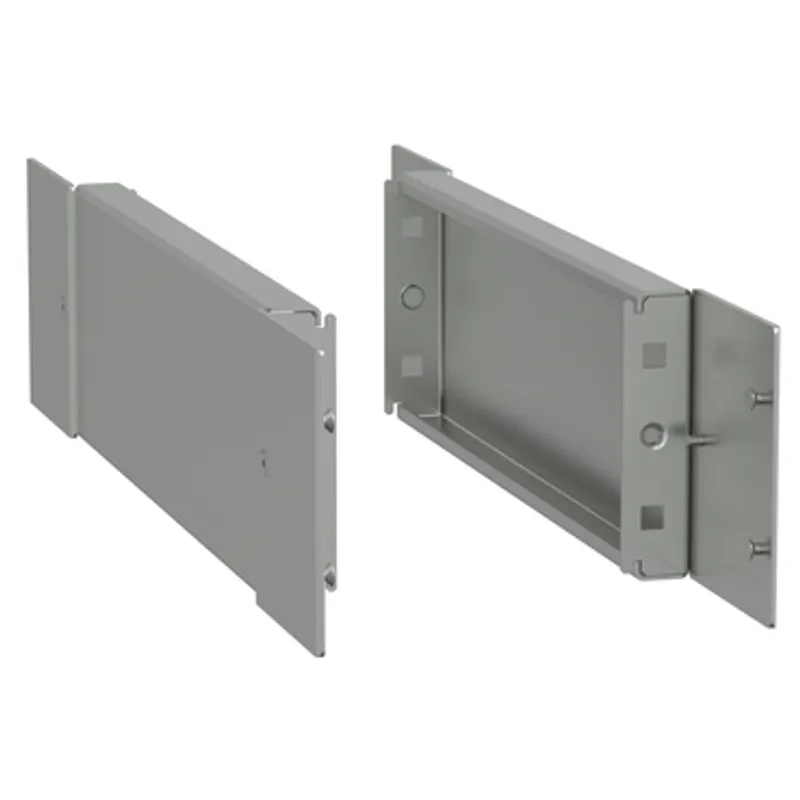

PanelSeT -side plinth - H100 D500 stainless steel 316L

MPN: NSYSPSX5100H
EAN: 3606480626180
Category: PanelSeT SMX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPSX5100H?

Plinth side panel to be used with PanelSeT SD, PanelSeT SMX, PanelSeT SFX and PanelSeT SDX enclosures The plinth side panel is to be used in multi-purpose applications The height is 100mm The nominal depth is 500mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of Material : Stainless steel Net weight is 1,42kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth side panel
Application	Multi-purpose
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 side panel
Range compatibility	PanelSeT PanelSeT SD SD, PanelSeT SMX PanelSeT SMX, PanelSeT SFX PanelSeT SFX, PanelSeT PanelSeT SDX SDx
Mounting support	Front plinth
Fixing mode	By screws
Material	Stainless steel 316L
Surface finish	Untreated
Height	100 mm
Depth	Nominal : 500 mm
Net weight	1.42 kg
IP degree of protection	IP30 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 31.000 cm × 10.500 cm × 7.500 cm (L × W × H), 1.906 kg
Package 2	10 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 19.060 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPSX5100HPDF
