Schneider Electric NSYSPSX4200H

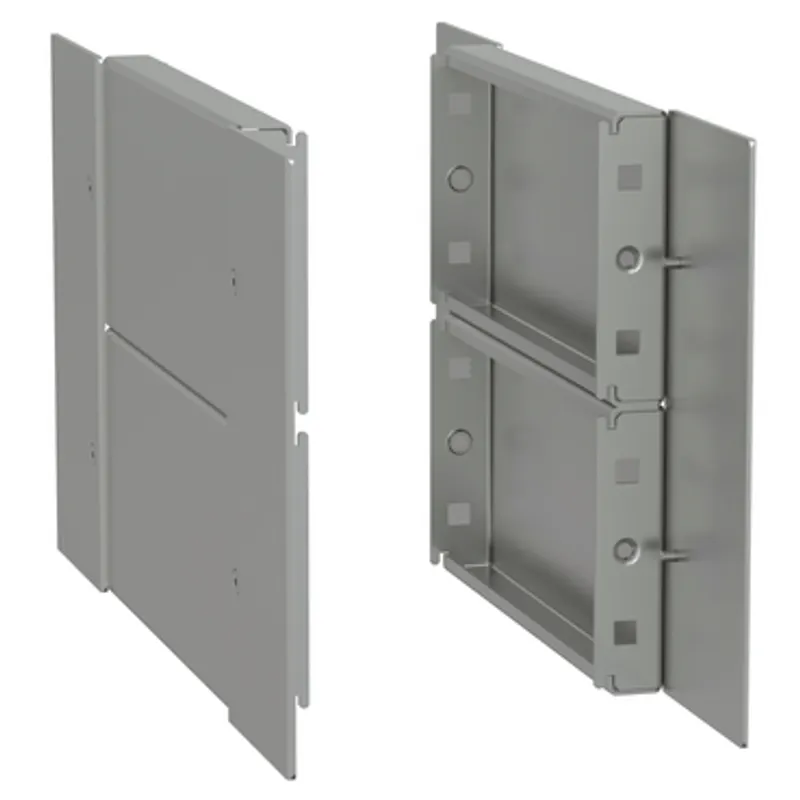

PanelSeT - side plinth - H200 D400 stainless steel 316L

MPN: NSYSPSX4200H
EAN: 3606480626395
Category: PanelSeT SFX

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPSX4200H?

Plinth side panel to be used with PanelSeT SD, PanelSeT S3D, PanelSeT CRN, PanelSeT S3HD, PanelSeT SMX, PanelSeT SFX and PanelSeT CRNG enclosures The plinth side panel is to be used in multi-purpose applications The height is 200mm The nominal depth is 400mm The kit is made of fixing elements, 4 corner covers and 2 side panels The product is made of Material : Stainless steel Net weight is 2,096kg Ingress protection rating is IP30 (complete plinth) Mechanical protection rating is IK10

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth side panel
Application	Multi-purpose
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 side panel
Range compatibility	PanelSeT S3D PanelSeT S3D, PanelSeT CRN PanelSeT CRN, PanelSeT PanelSeT CRNG, PanelSeT S3HD, PanelSeT SMX PanelSeT SMX, PanelSeT SFX PanelSeT SFX
Material	Stainless steel 316L
Surface finish	Untreated
Height	200 mm
Depth	Nominal : 400 mm
Net weight	2.096 kg
IP degree of protection	IP30 (complete plinth)
IK degree of protection	IK10

Packaging

Package 1	1 PCE, 21.500 cm × 21.000 cm × 7.700 cm (L × W × H), 3.080 kg
Package 2	10 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 30.800 kg
