Schneider Electric NSYSPB8100

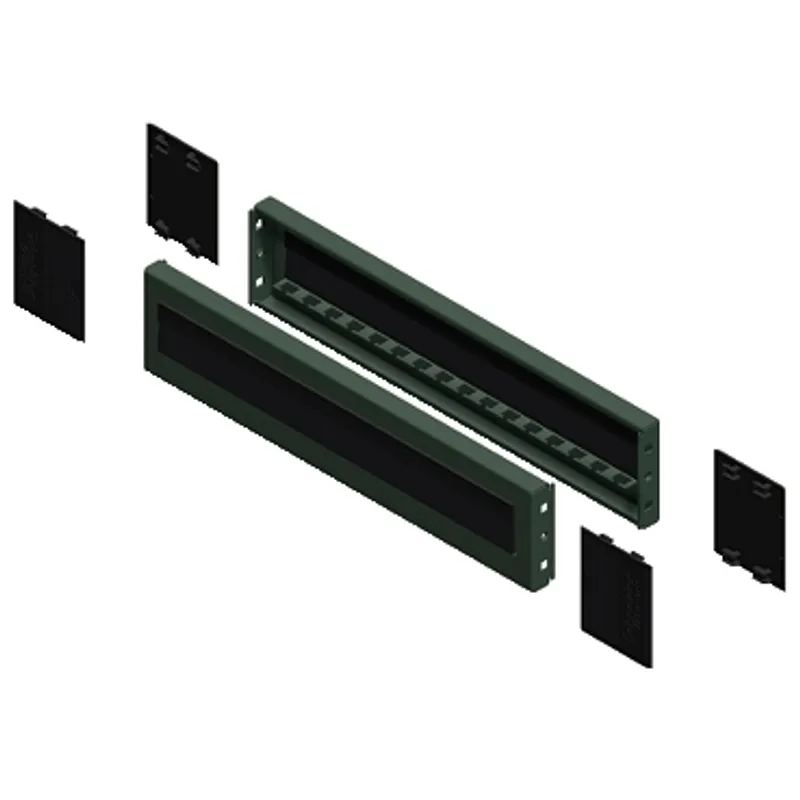

Plinth side panels with brush, PanelSeT SFN, PanelSeT SF and SM, for electrical enclosure D800mm, set of 2, H100mm

MPN: NSYSPB8100
EAN: 3606485132587
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPB8100?

This is a set of brush side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 800 mm and its height is 100 mm. The set contains 4 corners covers, 2 side panels with brush and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP20 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth panels with brush
Application	Multi-purpose
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 panels with brush
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM
Mounting support	Front plinth
Fixing mode	By screws - on corners of plinth location
Colour	Grey (RAL 7022)
Surface finish	Epoxy-polyester powder
Height	100 mm
Width	Nominal: 800 mm, Real: 655 mm

Packaging

Package 1

1 PCE, 6.0 cm × 65.5 cm × 11.5 cm (L × W × H), 2.314 kg

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSPB8100PDF

NSYSPB8100: frequently asked questions

When can NSYSPB8100 be shipped?

NSYSPB8100 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSPB8100 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSPB8100 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSPB8100, subject to availability and destination.
