Schneider Electric NSYSPB6100

Plinth side panels with brush, PanelSeT SFN, SF, SM, for electrical enclosure D600mm, set of 2, H100mm

MPN: NSYSPB6100
EAN: 3606485132556
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSPB6100?

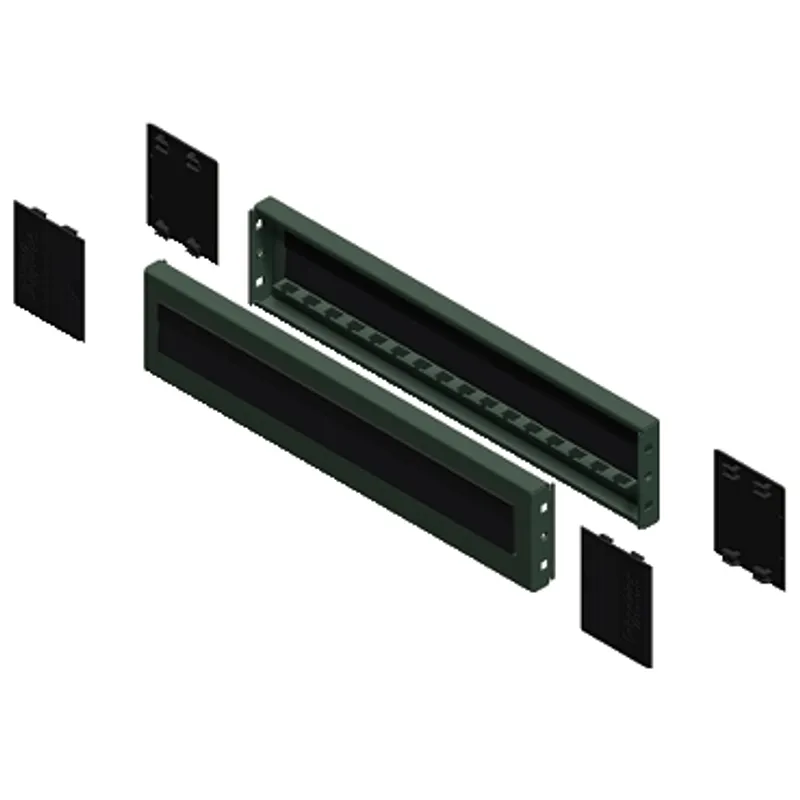

This is a set of brush side plinth panels for PanelSeT, PanelSeT and PrismaSeT electrical enclosures. The product is made of folded sheet steel. It is suitable for enclosures with a nominal depth of 600 mm and its height is 100 mm. The set contains 4 corners covers, 2 side panels with brush and the fixing elements. The color is grey RAL7022. The ingress protection rating is IP20 (complete plinth) and the mechanical protection rating is IK10. The permanent permissible load is 1300kg. Anti-corrosion protection is ensured by an epoxy-polyester powder coating. .

Specifications

Range	PanelSeT
Accessory / separate part category	Enclosure accessory
Product or component type	Plinth panels with brush
Application	Multi-purpose
Nominal dimensions of the housing	-
Device composition	Fixing elements, 4 corner cover, 2 panels with brush
Range compatibility	PanelSeT PanelSeT SF SF, PanelSeT SM PanelSeT SM
Mounting support	Front plinth
Fixing mode	By screws - on corners of plinth location
Colour	Grey (RAL 7022)
Surface finish	Epoxy-polyester powder
Height	100 mm
Width	Nominal: 600 mm, Real: 460 mm

Packaging

Package 1	1 PCE, 46.000 cm × 11.500 cm × 6.000 cm (L × W × H), 1.634 kg
Package 2	20 PAL, 120.000 cm × 37.500 cm × 29.000 cm (L × W × H), 32.680 kg
