Schneider Electric NSYSMHR6

PanelSeT SM horizontal adaptation profiles - 600 mm

MPN: NSYSMHR6
EAN: 3606480146671
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSMHR6?

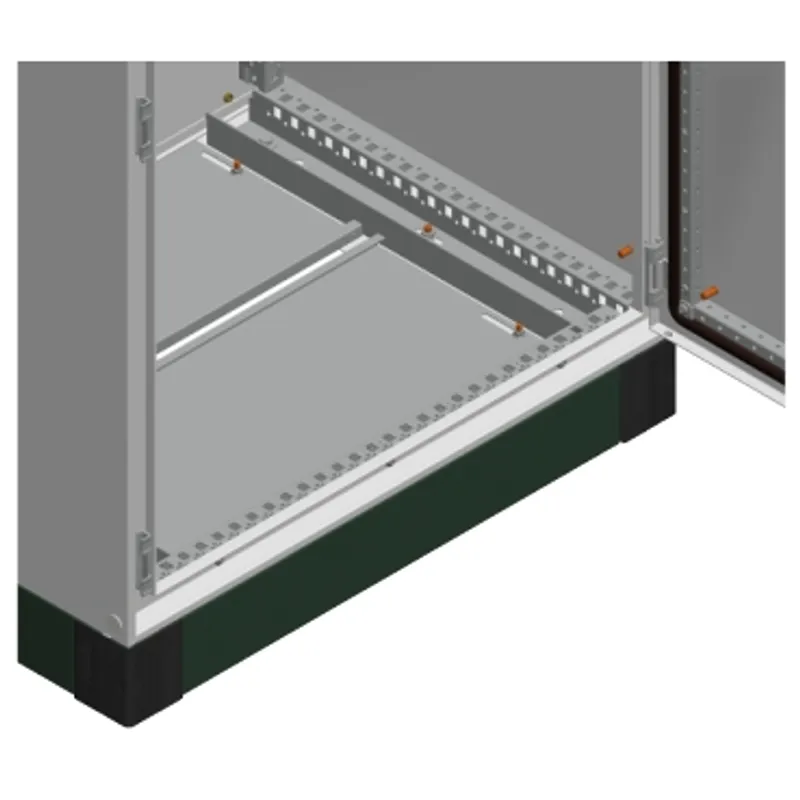

Spacial SM horizontal adaptation profiles. 600 mm. Allows to have fixation points in the external frame of the monobloc enclosure. Mounting on top and bottom front of enclosure. Horizontal installation. Steel made, zinc coated surface finish. 2 profiles and fixing screws included.

Specifications

Range	PanelSeT
Accessory / separate part category	Mounting accessory
Product or component type	Adaptation profile
Application	Multi-purpose
Nominal dimensions of the housing	-
Range compatibility	PanelSeT PanelSeT SM
Mounting location	Top and bottom front of enclosure
Installation direction	Horizontal
Device composition	Fixing screws, 2 profile
Quantity per set	Set of 1
Material	Steel
Surface finish	Zinc coated
Fixing mode	By screws - on front fixing point location
Height	24.5 mm
Width	Nominal: 600 mm, Real: 380 mm
Depth	42 mm
thickness	1.5 mm
Coverage	Core product

Packaging

Package 1

1 PCE, 40.000 cm × 5.500 cm × 4.000 cm (L × W × H), 694.000 g

Downloads & documentation

Official documents from Schneider Electric, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet NSYSMHR6PDF

NSYSMHR6: frequently asked questions

When can NSYSMHR6 be shipped?

NSYSMHR6 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up NSYSMHR6 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for NSYSMHR6 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSMHR6, subject to availability and destination.
