Schneider Electric NSYSMHR16

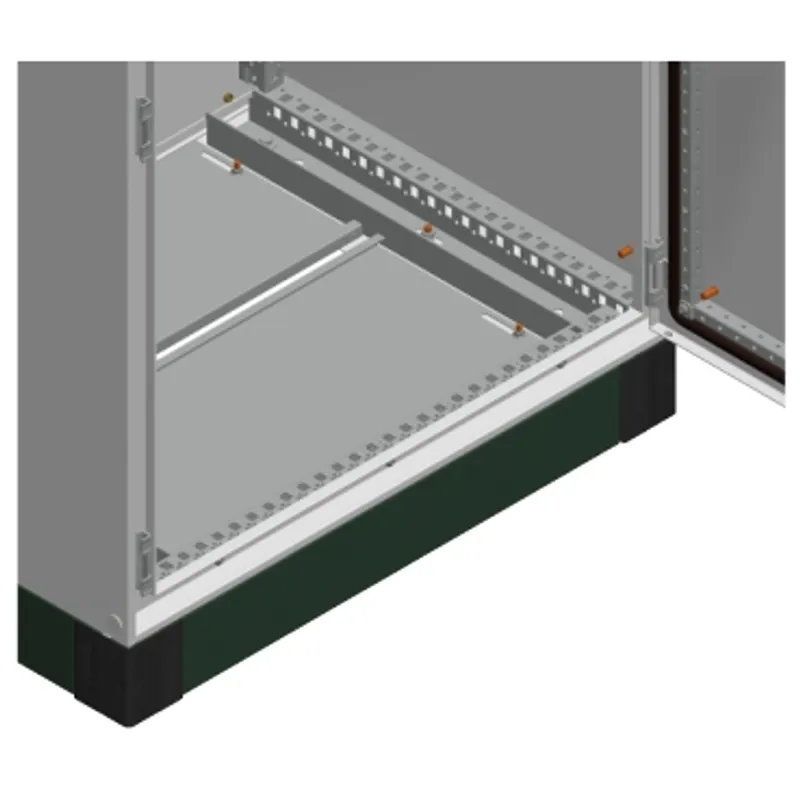

PanelSeT SM horizontal adaptation profiles - 1600 mm

MPN: NSYSMHR16
EAN: 3606480146718
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSMHR16?

Spacial SM horizontal adaptation profiles. 1600 mm. Allows to have fixation points in the external frame of the monobloc enclosure. Mounting on top and bottom front of enclosure. Horizontal installation. Steel made, zinc coated surface finish. 2 profiles and fixing screws included.

Specifications

Range	PanelSeT
Accessory / separate part category	Mounting accessory
Product or component type	Adaptation profile
Application	Multi-purpose
Nominal dimensions of the housing	-
Range compatibility	PanelSeT PanelSeT SM
Mounting location	Top and bottom front of enclosure
Installation direction	Horizontal
Device composition	Fixing screws, 2 profile
Quantity per set	Set of 1
Material	Steel
Surface finish	Zinc coated
Fixing mode	By screws - on front fixing point location
Height	24.5 mm
Width	Real: 1380 mm, Nominal: 1600 mm
Depth	42 mm
thickness	1.5 mm
Coverage	Core product

Packaging

Package 1	1 PCE, 139.000 cm × 30.000 cm × 5.000 cm (L × W × H), 2.332 kg
Package 2	100 P2M, 200.000 cm × 120.000 cm × 25.000 cm (L × W × H), 265.200 kg
