Schneider Electric NSYSM20860T

PanelSeT SM compact enclosure with glazed door - 2000x800x600 mm

MPN: NSYSM20860T
EAN: 3606485121031
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Discontinued by Schneider Electric — we can still source the original NSYSM20860T (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSM20860T?

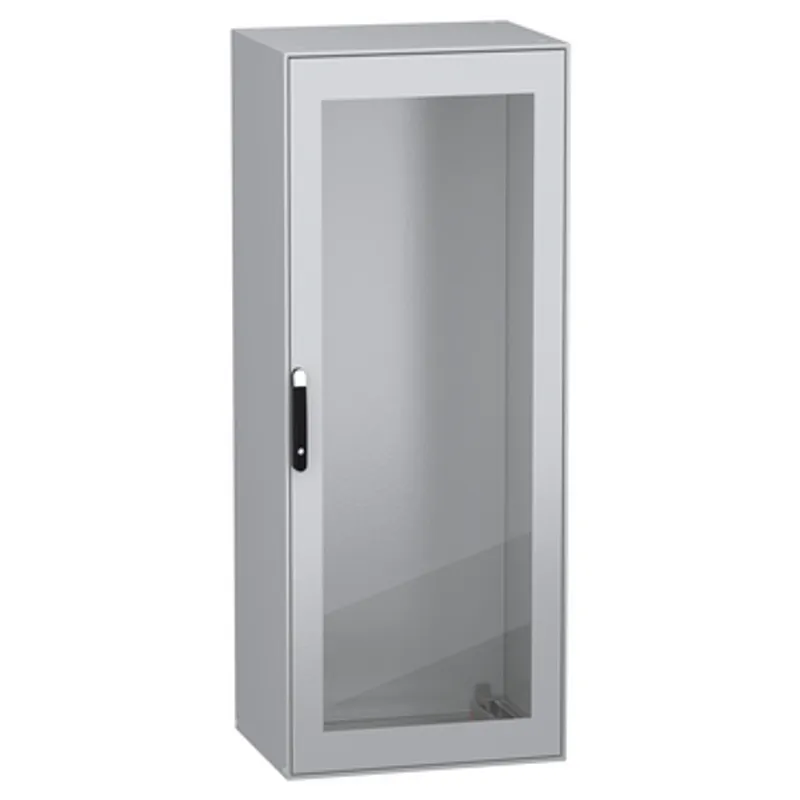

Spacial SM monobloc compact steel enclosure with glazed door. 2000 x 800 x 600 mm. Back panel welded. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK08, Grey RAL 7035. 4 mounting plate support brackets included.

Specifications

Range	PanelSeT
Product name	PanelSeT SM
Product or component type	Compact enclosure
Application	Multi-purpose
Installation accessory type	Floor-standing
Device composition	1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door
Removable parts	Door by screws hinge, Mounting plate bracket by screws

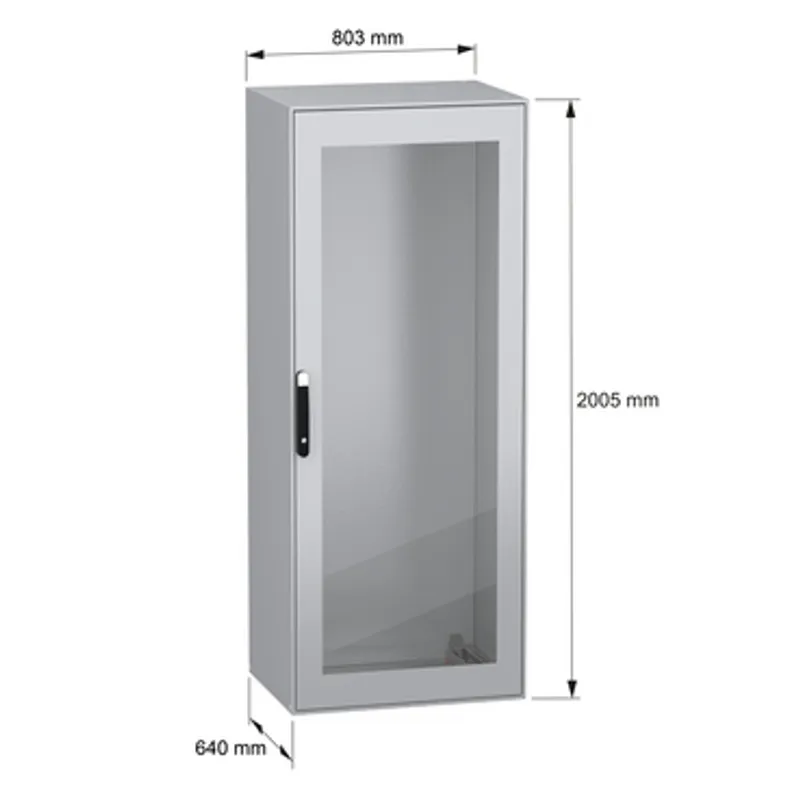

Enclosure nominal height	2000 mm
Enclosure nominal width	800 mm
Enclosure nominal depth	600 mm
Number of doors	Front: 1 door(s)
Door opening side	Reversible (120 °)
Door type	Glazed
Lock type	4 points lock, handle with 5 mm double bar insert
Body type	Single piece body with welded rear panel, Front part forming a rigid frame with welded corners
Mounting plate description	Without mounting plate
Type of gland plate	Standard
cable entry	1 entry
Material	Door: Securit glass, Body: sheet steel, Door: sheet steel, Hinge: zamak
Surface finish	Epoxy-polyester powder
Colour	Enclosure: grey (RAL 7035), Handle: black (RAL 9005)
Accessibility for operation	Front
Net weight	110 kg
Standards	IEC 62208
Product certifications	UL, BV, DNV
IK degree of protection	IK08 conforming to IEC 62262, conforming to UL, conforming to cUL
IP degree of protection	IP55 conforming to IEC 60529
Coverage	Core product

Packaging

Package 1

1 PCE, 69.0 cm × 84.5 cm × 213.0 cm (L × W × H), 110.0 kg
