Schneider Electric NSYSM20860P

PanelSeT SM compact enclosure with mounting plate - 2000x800x600 mm

MPN: NSYSM20860P
EAN: 3606485120379
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

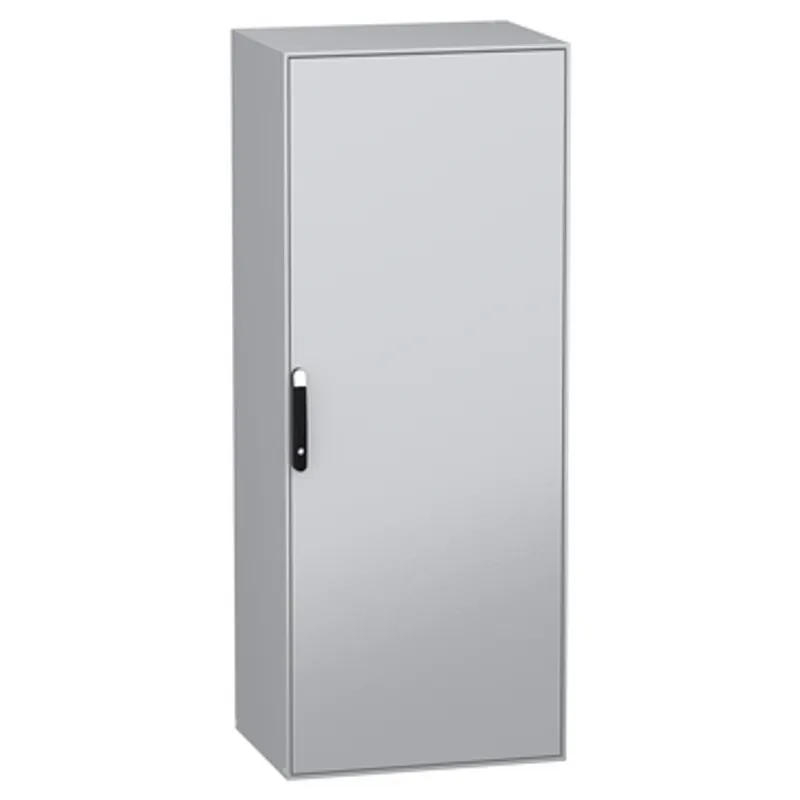

What is the Schneider Electric NSYSM20860P?

Spacial SM is a floor-standing multi-purpose enclosure with a nominal height, width and depth of 2000mm, 800mm and 600mm respectively It is made from sheet steel with a galvanised steel mounting plate and a zamak hinge The enclosure is certified by BV, UL and DNV and has an IK10 rating (IEC62262) and an IP55 rating (IEC60529) The enclosure is grey in color (RAL 7035) with an epoxy-polyester powder surface finish and the handle is black in color (RAL 9005) The enclosure consists of a body, one cable gland plate, one plain door, four mounting plate brackets, one mounting plate and one locking system with handle on the door The door can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert

Specifications

Range	PanelSeT
Product name	PanelSeT SM
Product or component type	Compact enclosure
Application	Multi-purpose
Installation accessory type	Floor-standing
Device composition	1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 mounting plate, 1 door
Removable parts	Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws

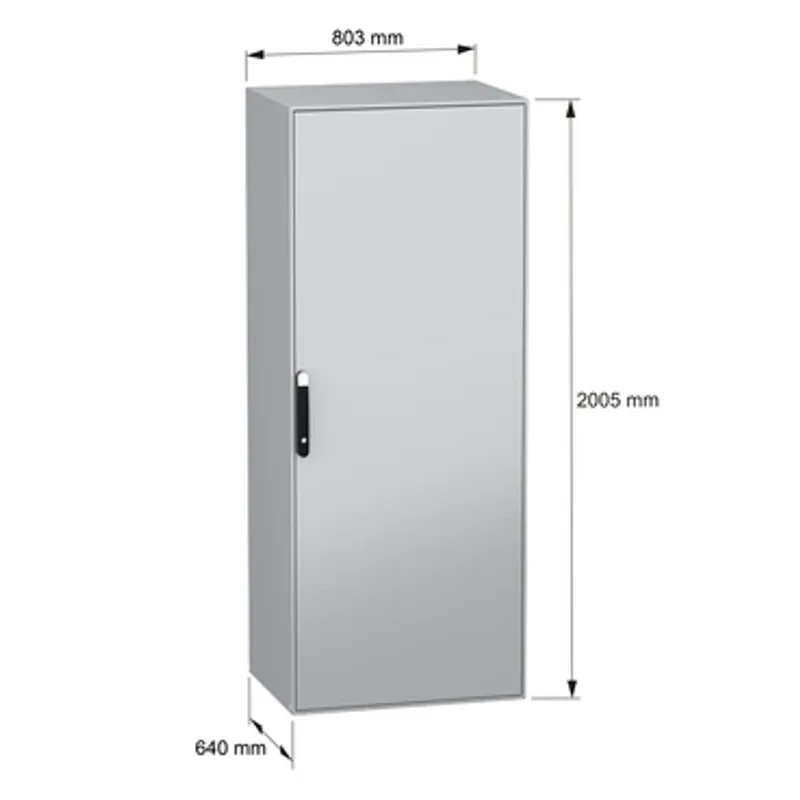

Enclosure nominal height	2000 mm
Enclosure nominal width	800 mm
Enclosure nominal depth	600 mm
Number of doors	Front: 1 door(s)
Door opening side	Reversible (120 °)
Door type	Plain
Lock type	4 points lock, handle with 5 mm double bar insert
Body type	Single piece body with welded rear panel, Front part forming a rigid frame with welded corners
Mounting plate description	Plain
Type of gland plate	Standard
cable entry	1 entry
Material	Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak
Surface finish	Epoxy-polyester powder
Colour	Enclosure: grey (RAL 7035), Handle: black (RAL 9005)
Accessibility for operation	Front
Net weight	142 kg
Standards	IEC 62208
Product certifications	BV, UL, DNV
IK degree of protection	IK10 conforming to IEC 62262, conforming to UL, conforming to cUL
IP degree of protection	IP55 conforming to IEC 60529
Coverage	Core product

Packaging

Package 1

1 PCE, 69.000 cm × 85.000 cm × 213.000 cm (L × W × H), 134.000 kg
