Schneider Electric NSYSM20830T
PanelSeT SM compact enclosure with glazed door - 2000x800x300 mm
- MPN
- NSYSM20830T
- EAN
- 3606485121000
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSM20830T?

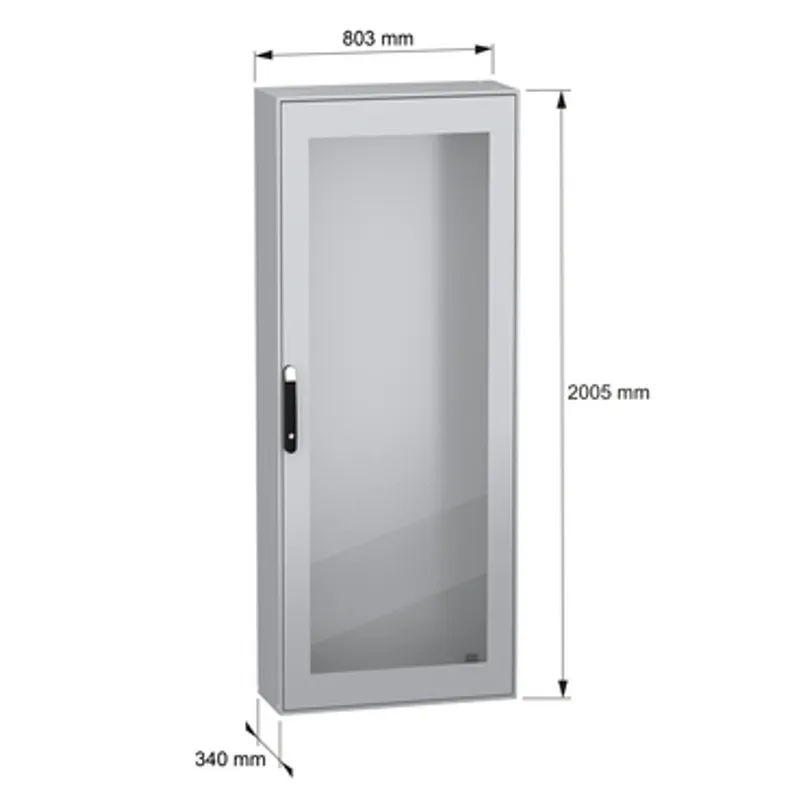

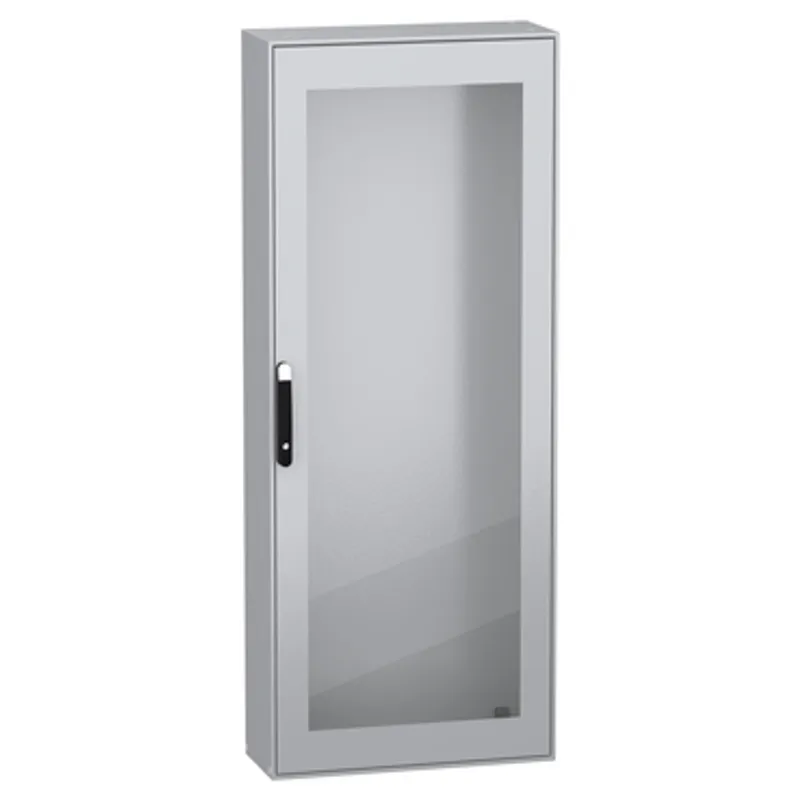

Spacial SM monobloc compact steel enclosure with glazed door. 2000 x 800 x 300 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK08, Grey RAL 7035. 4 mounting plate support brackets included.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door |
| Removable parts | Door by screws hinge, Mounting plate bracket by screws |
| Enclosure nominal height | 2000 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth | 300 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Glazed |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Door: Securit glass, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 74 kg |
| Standards | IEC 62208 |
| Product certifications | UL, BV, DNV |
| IK degree of protection | IK08 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 39.0 cm × 84.5 cm × 213.0 cm (L × W × H), 74.0 kg |
