Schneider Electric NSYSM20650

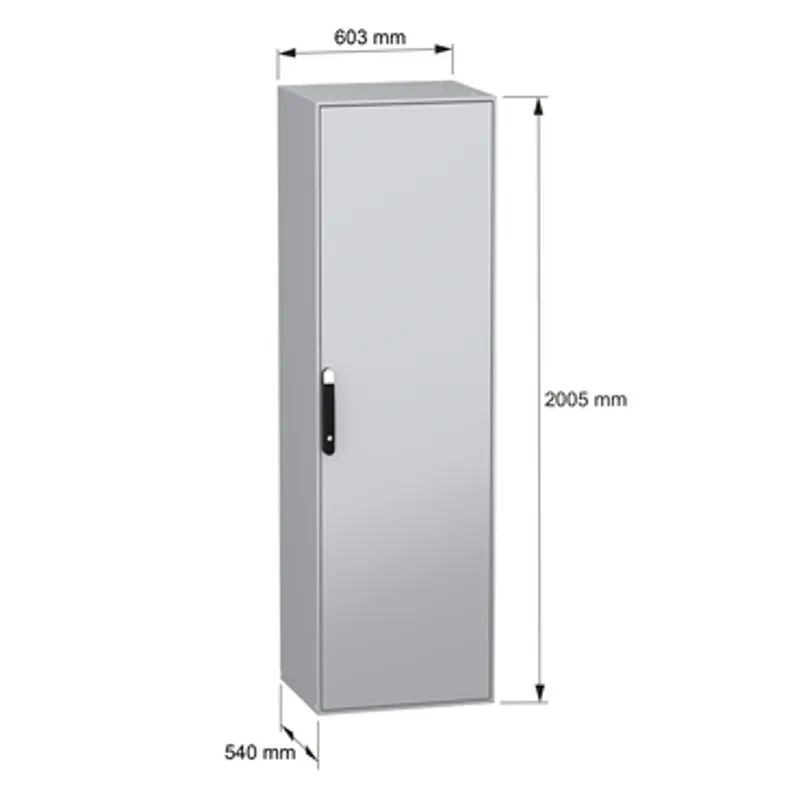

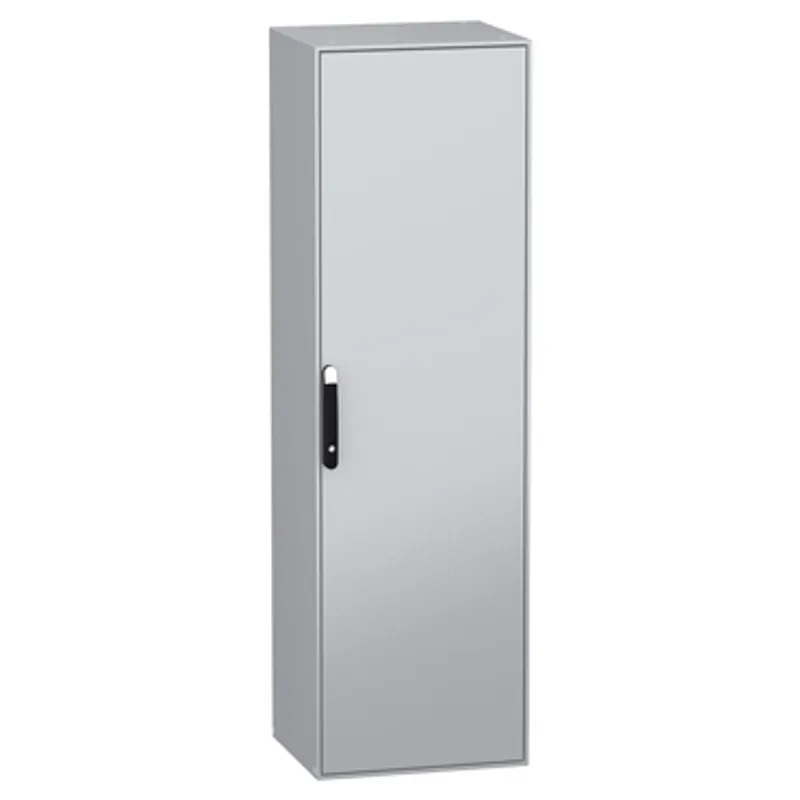

PanelSeT SM compact enclosure without mounting plate - 2000x600x500 mm
- MPN
- NSYSM20650
- EAN
- 3606485120782
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYSM20650 (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Schneider Electric NSYSM20650?
Spacial SM monobloc compact steel enclosure with plain front door. 2000 x 600 x 500 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |
| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door |
| Removable parts | Door by screws hinge, Mounting plate bracket by screws |
| Enclosure nominal height | 2000 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 500 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Single piece body with welded rear panel, Front part forming a rigid frame with welded corners |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 88 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, UL, BV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 59.000 cm × 65.000 cm × 213.000 cm (L × W × H), 82.000 kg |
