Schneider Electric NSYSM2012502D
PanelSeT SM compact enclosure without mounting plate - 2000x1200x500 mm
- MPN
- NSYSM2012502D
- EAN
- 3606485120867
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Discontinued by Schneider Electric — we can still source the original NSYSM2012502D (new, used or refurbished, subject to availability). Request a quote below.
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSM2012502D?

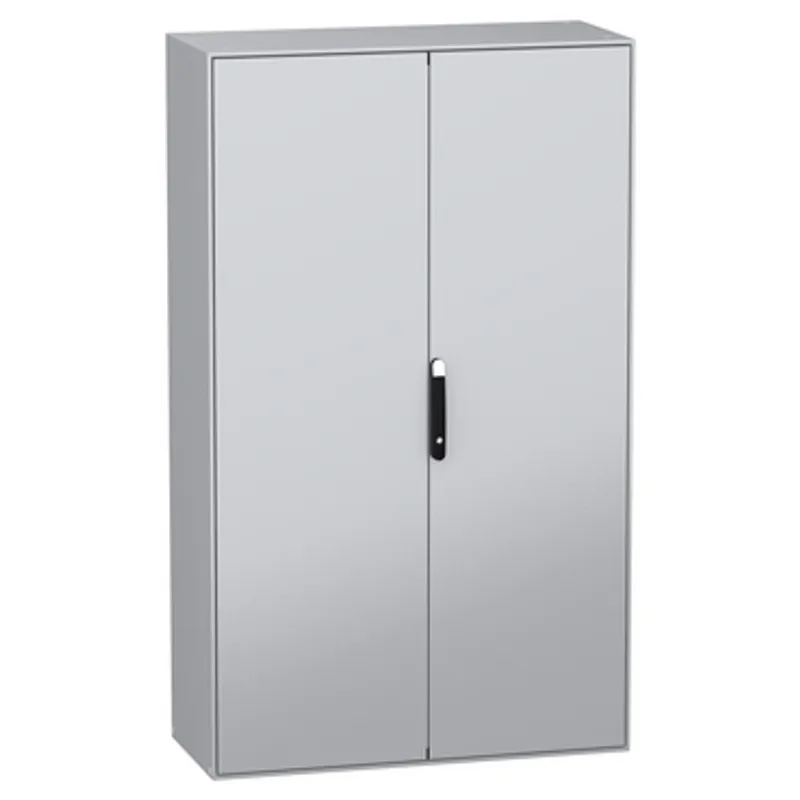

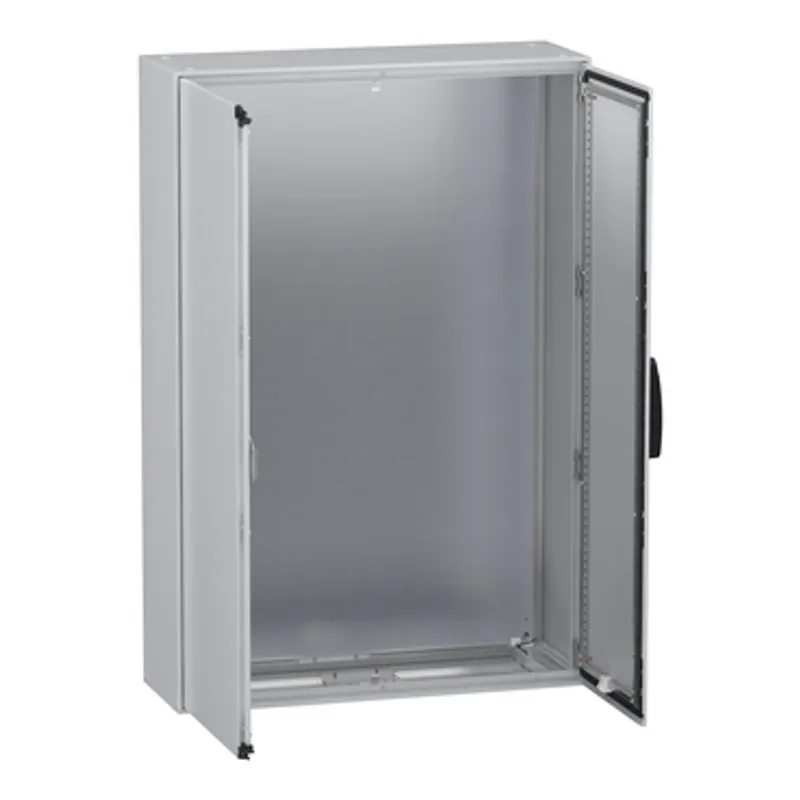

Spacial SM monobloc compact steel enclosure with 2 plain front doors. 2000 x 1200 x 500 mm. Back panel welded, without mounting plate. 4 point door locking system with handle DB 5mm. Steel made. Protection IP 55, IK10, Grey RAL 7035. 4 mounting plate support brackets and 2 parts cable gland plate included.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |

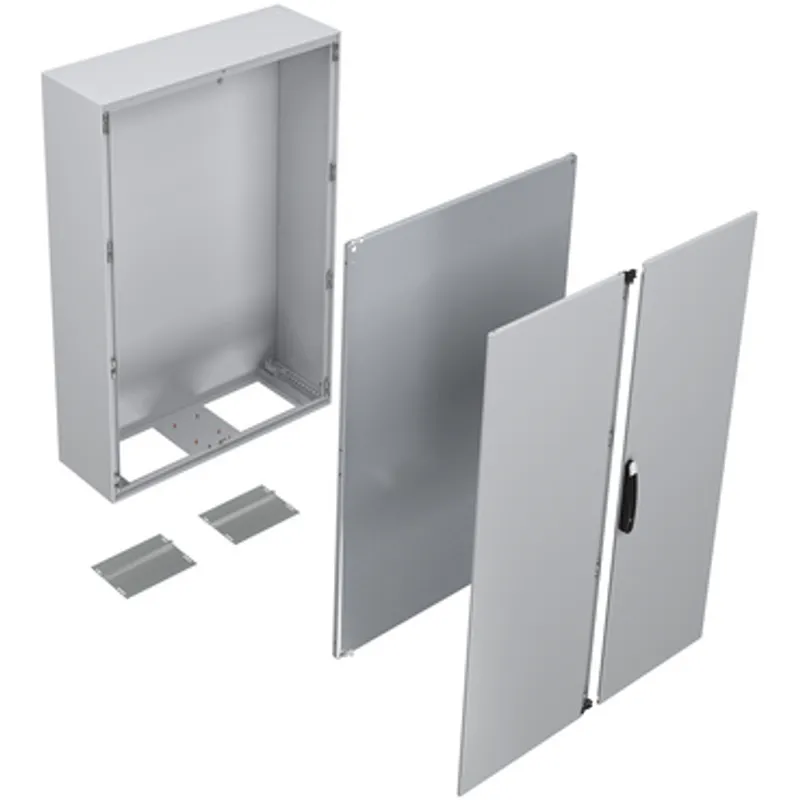

| Device composition | 1 body, 2 door, 2 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket |
| Removable parts | Door by screws hinge, Mounting plate bracket by screws |
| Enclosure nominal height | 2000 mm |
| Enclosure nominal width | 1200 mm |
| Enclosure nominal depth | 500 mm |
| Number of doors | Front: 2 door(s) |
| Door opening side | Left (120 °), Right (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 140 kg |
| Standards | IEC 62208 |
| Product certifications | UL, BV, DNV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 59.000 cm × 125.000 cm × 213.000 cm (L × W × H), 132.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSM2012502D: frequently asked questions
Can I still buy the NSYSM2012502D now that it is discontinued?
Yes. Schneider Electric has discontinued the NSYSM2012502D, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.
When can NSYSM2012502D be shipped?
NSYSM2012502D is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSM2012502D in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSM2012502D and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM2012502D, subject to availability and destination.
