PanelSeT SM compact enclosure with mounting plate - 2000x1000x500 mm
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT SM |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 165 kg |
Shipping & availability
When can NSYSM2010502DP be shipped?
NSYSM2010502DP is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSM2010502DP in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSM2010502DP and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSM2010502DP, subject to availability and destination.

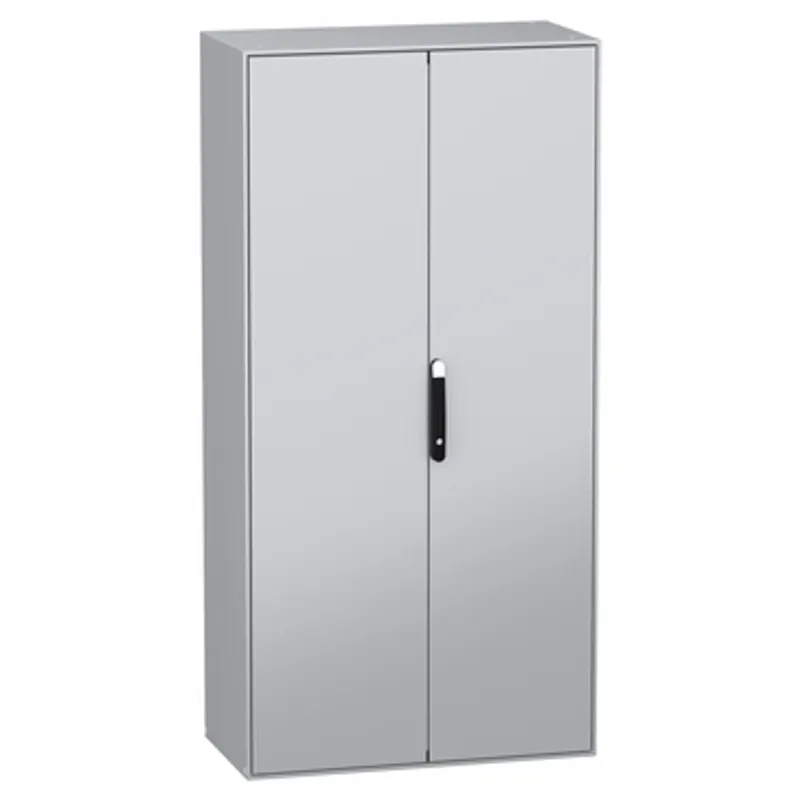

Spacial SM is a multi-purpose steel floor-standing enclosure designed for use in harsh environments It has a nominal height, width and depth of 2000mm, 1000mm and 500mm respectively The enclosure is made in grey color (RAL 7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL 9005) The enclosure consists of a body, two plain doors, one cable gland plate, four mounting plate brackets, a blocking system on left door, a locking system with handle on the door, and a mounting plate made of galvanised steel The doors can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert The doors and mounting plate brackets can be removed for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |

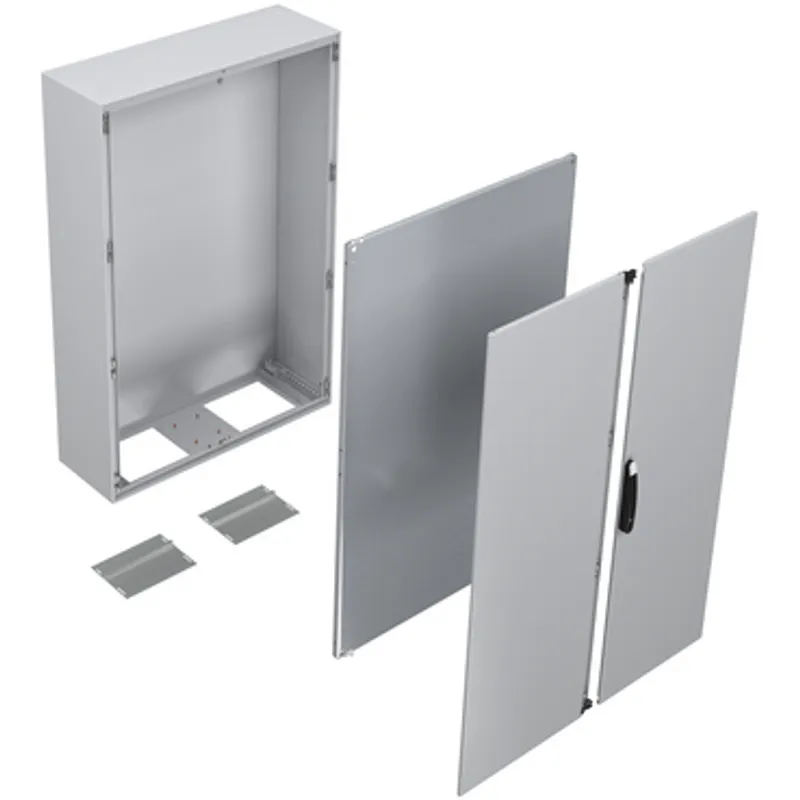

| Device composition | 1 body, 2 door, 1 cable gland plate, 1 locking system with handle: door, 1 blocking system: left door, 4 mounting plate bracket, 1 mounting plate |
| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

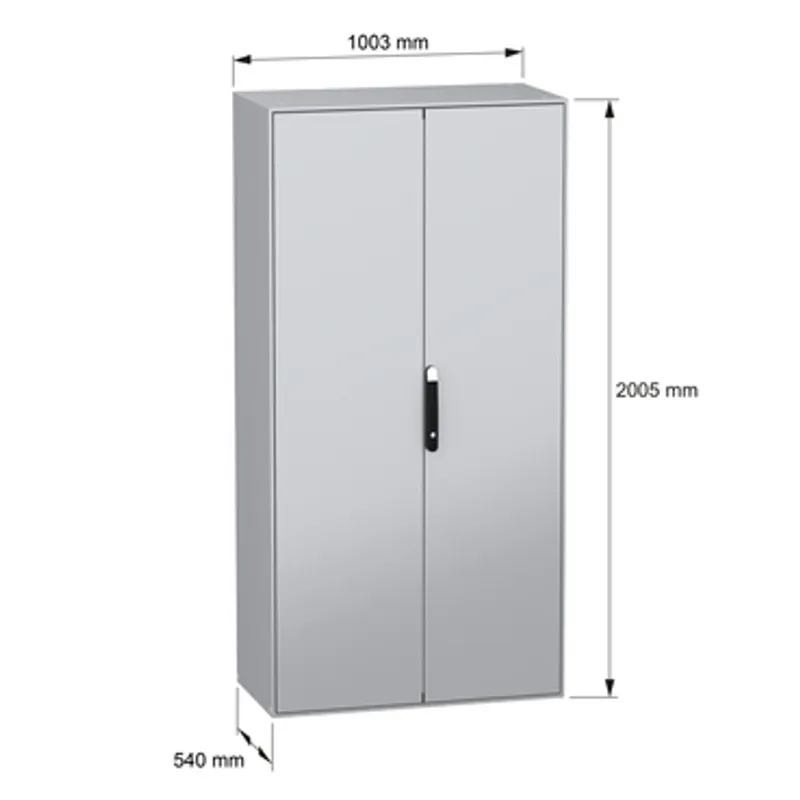

| Enclosure nominal height | 2000 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 500 mm |
| Number of doors | Front: 2 door(s) |

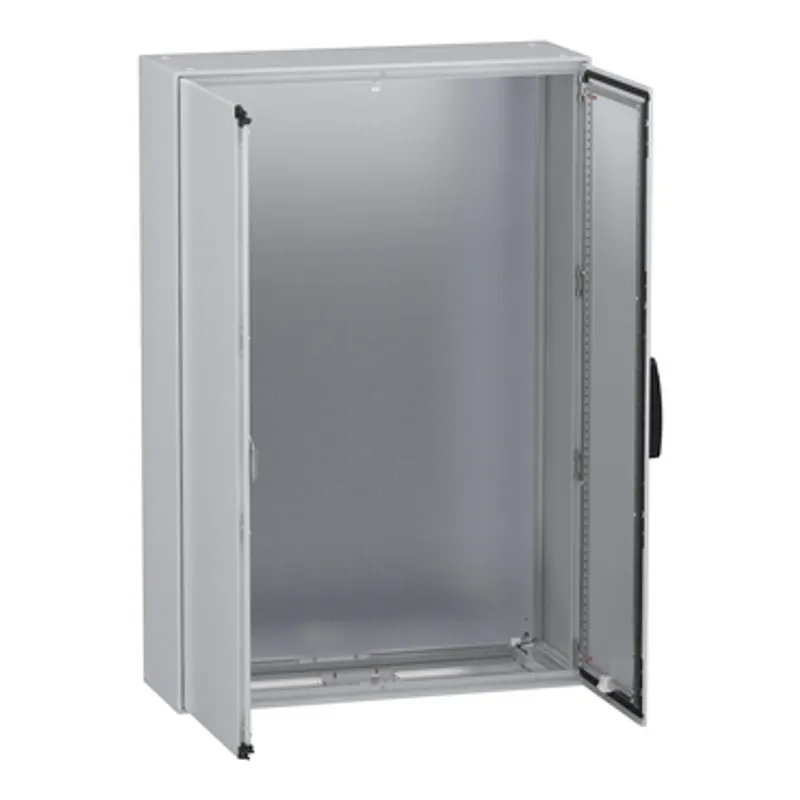

| Door opening side | Left (120 °), Right (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 165 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, BV, UL |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 213.000 cm |
| Package 1 Width | 105.000 cm |
| Package 1 Length | 59.000 cm |
| Package 1 Weight | 157.000 kg |
| Coverage | Core product |
| Warranty | 18 months |
