Schneider Electric

Schneider Electric NSYSM16840

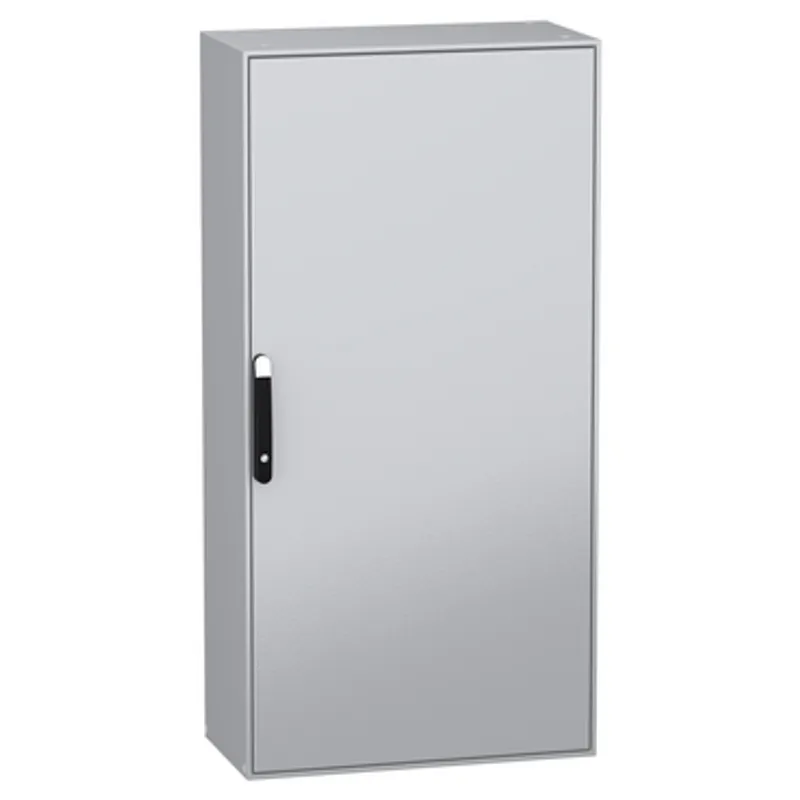

PanelSeT SM compact enclosure without mounting plate - 1600x800x400 mm

MPN: NSYSM16840
EAN: 3606485120584
Category: PanelSeT SM

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Schneider Electric parts? We buy surplus →

What is the Schneider Electric NSYSM16840?

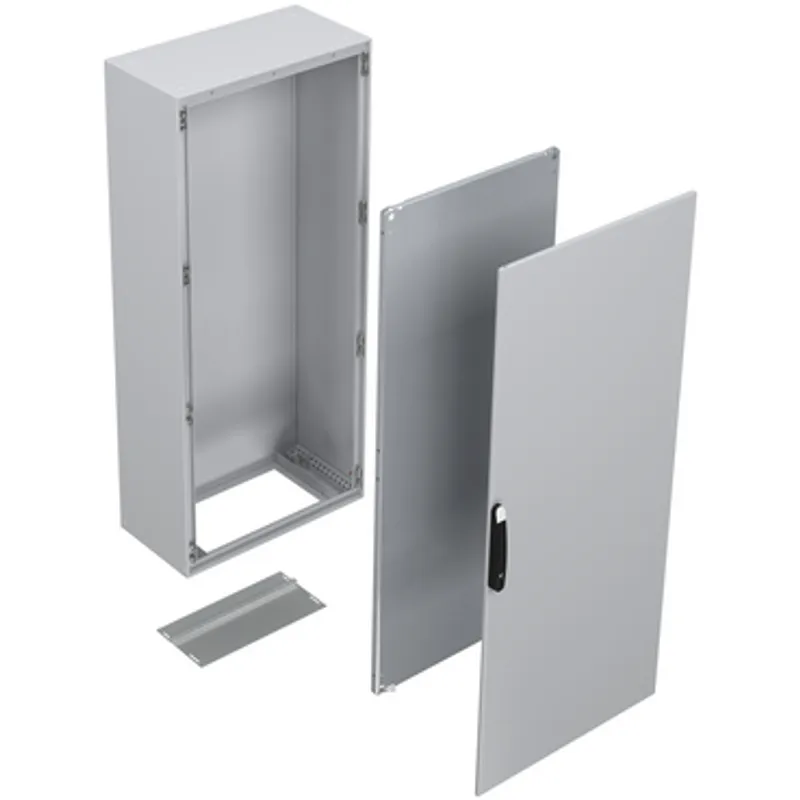

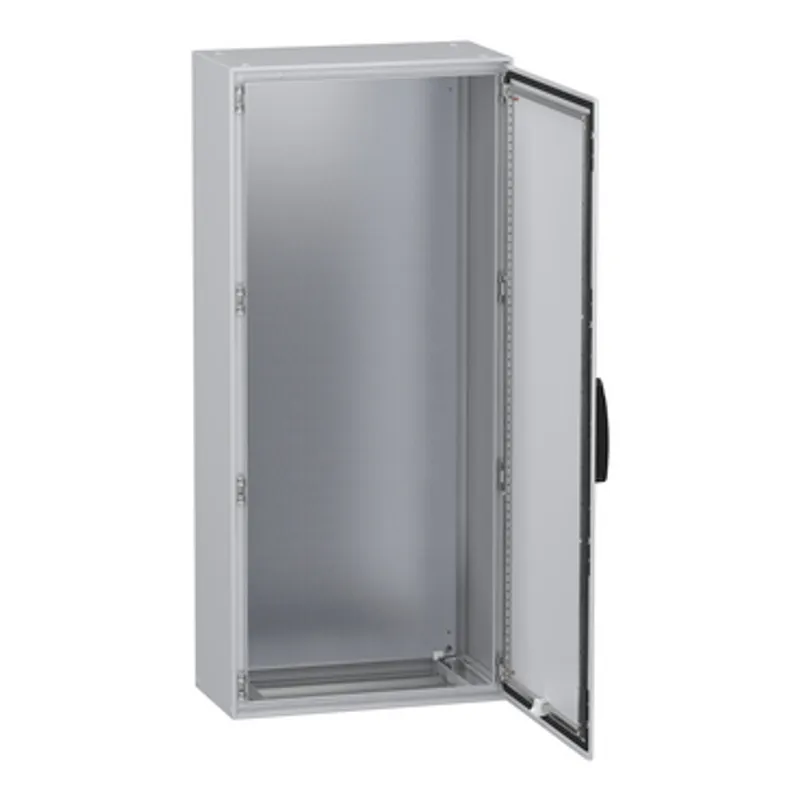

Spacial SM is a steel compact floor-standing enclosure designed for multi-purpose applications It is certified by DNV, UL and BV and is designed to withstand tough environments, with its IK10 (IEC62262) resistance to high impact and its IP55 rating (IEC60529) for dust and water resistance It has a nominal height, width and depth of 1600mm, 800mm and 400mm respectively The enclosure is made in grey color (RAL7035) with an epoxy-polyester powder surface finish and the handle is made in black color (RAL9005) The enclosure consists of a body, a cable gland plate, four mounting plate brackets, a reversible door with a four-point lock and a handle with 5mm double-bar insert The door and the mounting plate brackets can be removed for maintenance purposes The net weight of the enclosure is 76,5kg

Specifications

Range	PanelSeT
Product name	PanelSeT SM
Product or component type	Compact enclosure
Application	Multi-purpose
Installation accessory type	Floor-standing
Device composition	1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 door
Removable parts	Door by screws hinge, Mounting plate bracket by screws

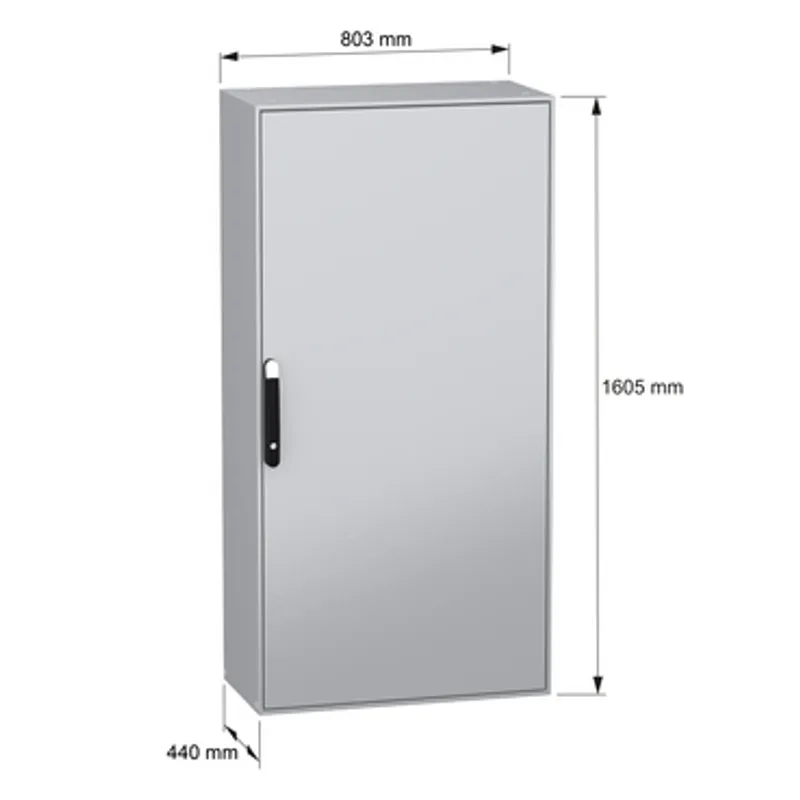

Enclosure nominal height	1600 mm
Enclosure nominal width	800 mm
Enclosure nominal depth	400 mm
Number of doors	Front: 1 door(s)
Door opening side	Reversible (120 °)
Door type	Plain
Lock type	4 points lock, handle with 5 mm double bar insert
Body type	Front part forming a rigid frame with welded corners, Single piece body with welded rear panel
Mounting plate description	Without mounting plate
Type of gland plate	Standard
cable entry	1 entry
Material	Body: sheet steel, Door: sheet steel, Hinge: zamak
Surface finish	Epoxy-polyester powder
Colour	Enclosure: grey (RAL 7035), Handle: black (RAL 9005)
Accessibility for operation	Front
Net weight	76.5 kg
Standards	IEC 62208
Product certifications	DNV, UL, BV
IK degree of protection	IK10 conforming to IEC 62262, conforming to UL, conforming to cUL
IP degree of protection	IP55 conforming to IEC 60529
Coverage	Core product

Packaging

Package 1	1 PCE, 49.000 cm × 85.000 cm × 173.000 cm (L × W × H), 77.500 kg
Package 2	2 PAL, 98.000 cm × 85.000 cm × 173.000 cm (L × W × H), 155.000 kg
