Schneider Electric NSYSM16640P
PanelSeT SM compact enclosure with mounting plate - 1600x600x400 mm
- MPN
- NSYSM16640P
- EAN
- 3606485120119
- Category
- PanelSeT SM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the Schneider Electric NSYSM16640P?

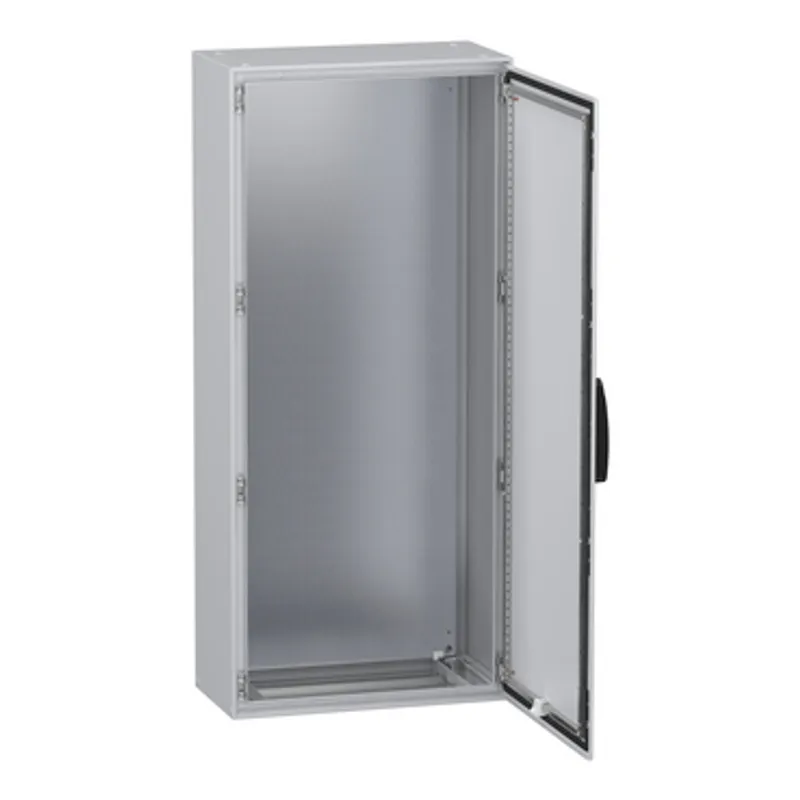

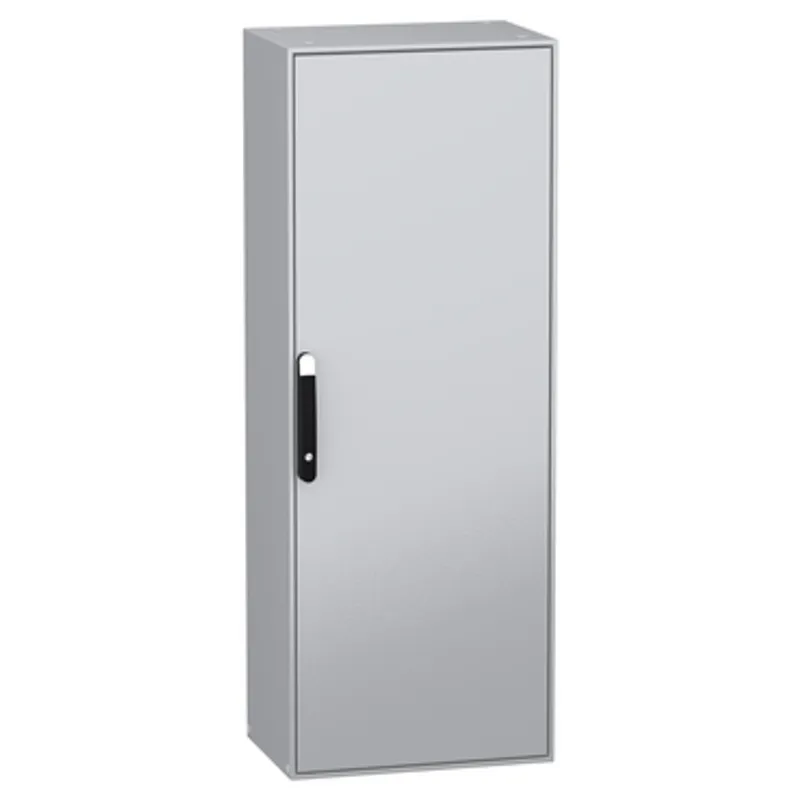

Spacial SM is a multi-purpose floor-standing steel enclosure with a nominal height, width and depth of 1600mm, 600mm and 400mm respectively The enclosure is made from galvanised steel, sheet steel and zamak materials and is designed for use in harsh environments It is certified by DNV, UL and BV and has an IK10 (IEC62262) and IP55 (IEC60529) rating, making it highly resistant to impact and dust and water The enclosure is grey in color (RAL7035) with an epoxy-polyester powder surface finish and the handle is black in color (RAL9005) It consists of a body, one cable gland plate, four mounting plate brackets, one mounting plate and one plain door The door is reversible and can be opened up to 120°, allowing easy access to the equipment inside The enclosure has a four-point lock with a handle with 5mm double-bar insert
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT SM |
| Product or component type | Compact enclosure |
| Application | Multi-purpose |
| Installation accessory type | Floor-standing |

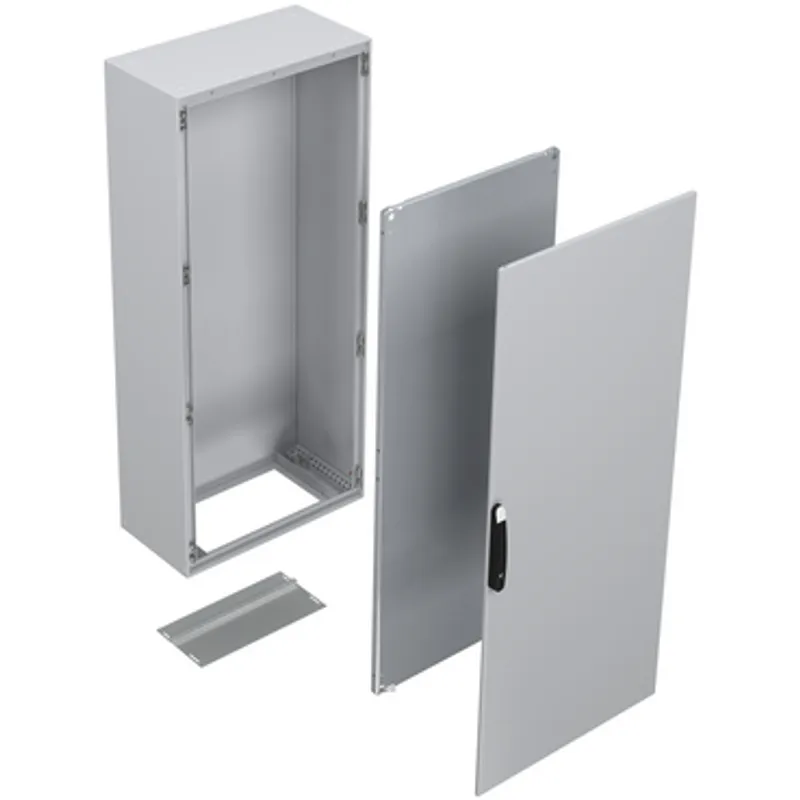

| Device composition | 1 body, 1 cable gland plate, 1 locking system with handle: door, 4 mounting plate bracket, 1 mounting plate, 1 door |
| Removable parts | Door by screws hinge, Mounting plate by screws mounting plate bracket, Mounting plate bracket by screws |

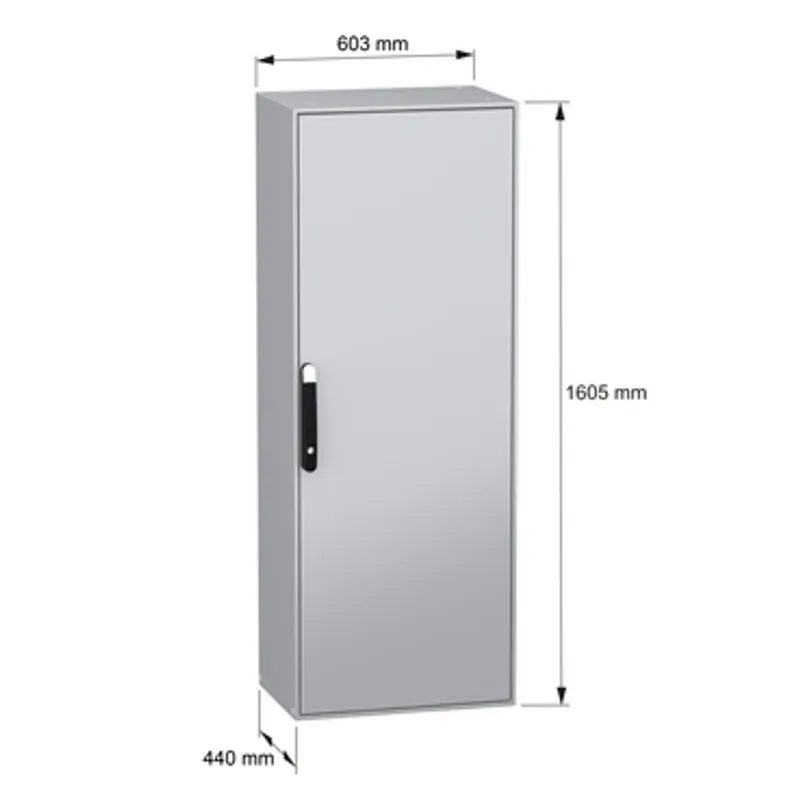

| Enclosure nominal height | 1600 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 400 mm |
| Number of doors | Front: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Door type | Plain |
| Lock type | 4 points lock, handle with 5 mm double bar insert |
| Body type | Front part forming a rigid frame with welded corners, Single piece body with welded rear panel |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| cable entry | 1 entry |
| Material | Mounting plate: galvanised steel, Body: sheet steel, Door: sheet steel, Hinge: zamak |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Handle: black (RAL 9005) |
| Accessibility for operation | Front |
| Net weight | 87 kg |
| Standards | IEC 62208 |
| Product certifications | DNV, UL, BV |
| IK degree of protection | IK10 conforming to IEC 62262, conforming to UL, conforming to cUL |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 49.000 cm × 65.000 cm × 173.000 cm (L × W × H), 82.000 kg |
| Package 2 | 2 PAL, 98.000 cm × 65.000 cm × 173.000 cm (L × W × H), 164.000 kg |
