Schneider Electric NSYSCX8040

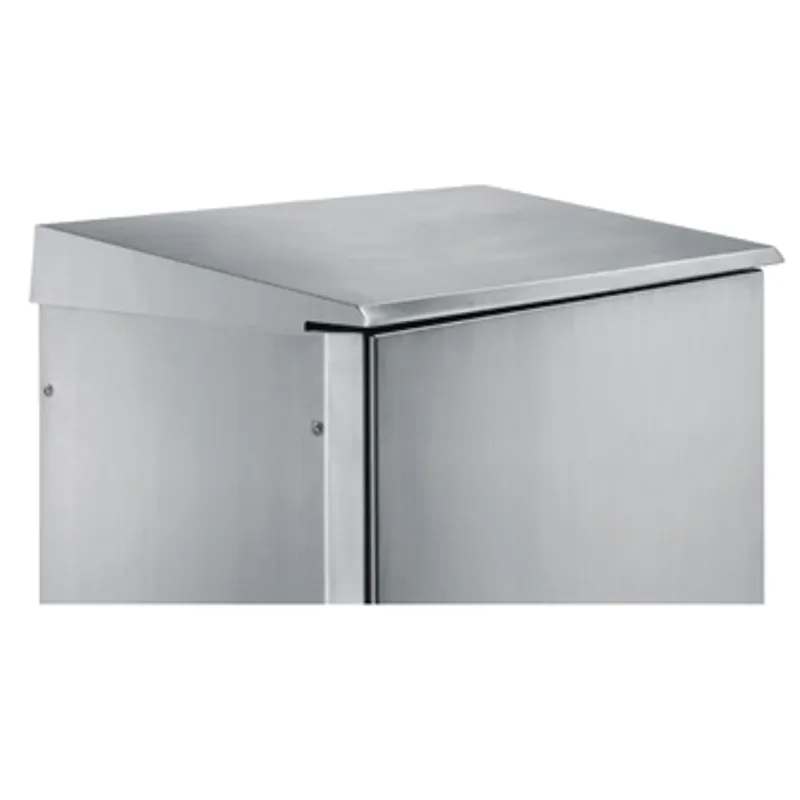

Stainless canopy 304L, Scotch Brite® finish, for enclosures W800xD400 mm.
- MPN
- NSYSCX8040
- EAN
- 3606480155512
- Category
- PanelSeT SFX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSCX8040?
Multi-purpose canopy for PanelSeT SFX enclosures The canopy is to be installed on all enclosure models with 800mm width and 400mm depth The width is 848mm The depth is 449mm The height is 84mm Fixed by fixing element - same holes as the eyebolts location on top of enclosure The canopy is made from 1,5mm stainless steel 304L Provides high resistance to impacts, temperature and bad weather Anti-corrosion protection is ensured by Scotch-Brite® brushed coating The kit is made up of 1 canopy and fixing elements Net weight is 7,5kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Canopy |
| Application | Multi-purpose |
| Range compatibility | PanelSeT SFX, PanelSeT |
| For enclosure nominal dimensions | - |
| Mounting location | On top of enclosure |
| Device composition | 1 canopy, fixing elements |
| Quantity per set | Set of 1 |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Fixing mode | By fixing element - same holes as the eyebolts location |
| Height | 84 mm |
| Width | 848 mm |
| Depth | 449 mm |
| thickness | 1.5 mm |
| Net weight | 7.5 kg |
Packaging
| Package 1 | 1 PCE, 86.0 cm × 46.0 cm × 9.5 cm (L × W × H), 7.5 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSCX8040: frequently asked questions
When can NSYSCX8040 be shipped?
NSYSCX8040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSCX8040 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSCX8040 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSCX8040, subject to availability and destination.
