NSYSCMX8050Stainless canopy 304L for PanelSeT SM, Scotch Brite® finish, for enclosures W800xD500 mm
Schneider Electric NSYSCX12060
Stainless canopy 304L, Scotch Brite® finish, for enclosures W1200xD600 mm.
- MPN
- NSYSCX12060
- EAN
- 3606480155468
- Category
- PanelSeT SFX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

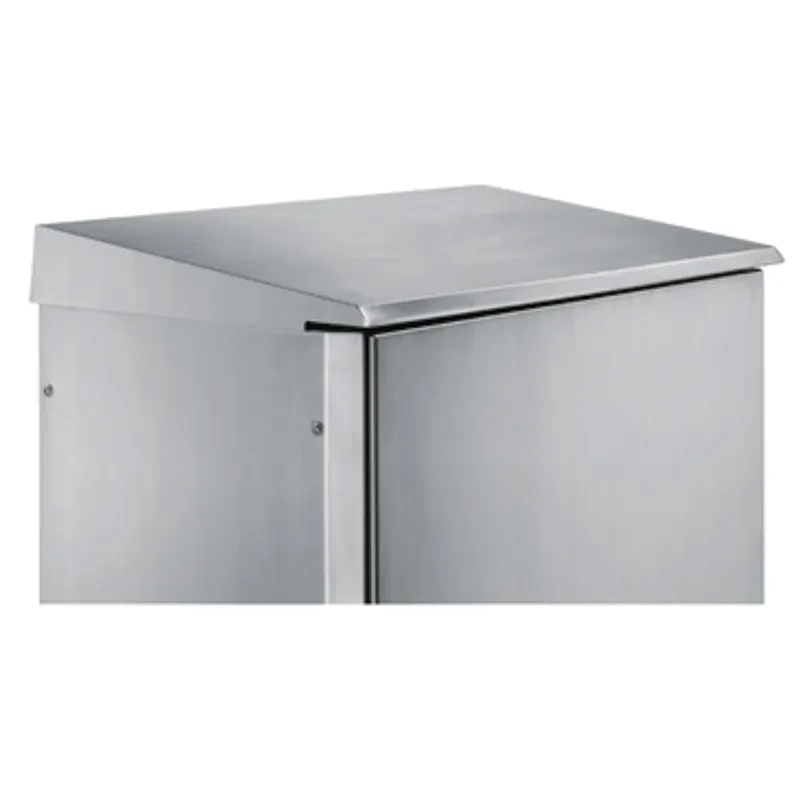

What is the Schneider Electric NSYSCX12060?
Multi-purpose canopy for PanelSeT SFX enclosures The canopy is to be installed on all enclosure models with 1200mm width and 600mm depth The width is 1248mm The depth is 649mm The height is 84mm Fixed by fixing element - same holes as the eyebolts location on top of enclosure The canopy is made from 1,5mm stainless steel 304L Provides high resistance to impacts, temperature and bad weather Anti-corrosion protection is ensured by Scotch-Brite® brushed coating The kit is made up of 1 canopy and fixing elements Net weight is 13,654kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Canopy |
| Application | Multi-purpose |
| Range compatibility | PanelSeT SFX, PanelSeT |
| For enclosure nominal dimensions | - |
| Mounting location | On top of enclosure |
| Device composition | 1 canopy, fixing elements |
| Quantity per set | Set of 1 |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Fixing mode | By fixing element - same holes as the eyebolts location |
| Height | 84 mm |
| Width | 1248 mm |
| Depth | 649 mm |
| thickness | 1.5 mm |
| Net weight | 13.654 kg |
Packaging
| Package 1 | 1 PCE, 126.000 cm × 66.000 cm × 9.500 cm (L × W × H), 13.654 kg |
| Package 2 | 10 PAL, 130.000 cm × 100.000 cm × 60.000 cm (L × W × H), 172.000 kg |
