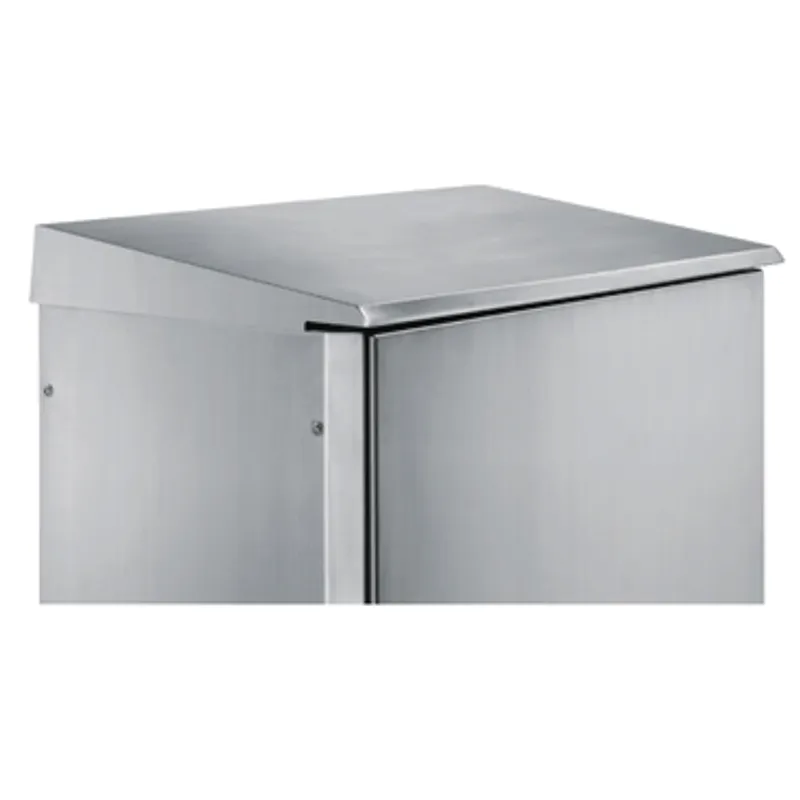

Schneider Electric NSYSCX8060
Stainless canopy 304L, Scotch Brite® finish, for enclosures W800xD600 mm.
- MPN
- NSYSCX8060
- EAN
- 3606480155536
- Category
- PanelSeT SFX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSCX8060?
Multi-purpose canopy for PanelSeT SFX enclosures The canopy is to be installed on all enclosure models with 800mm width and 600mm depth The width is 848mm The depth is 549mm The height is 84mm Fixed by fixing element - same holes as the eyebolts location on top of enclosure The canopy is made from 1,5mm stainless steel 304L Provides high resistance to impacts, temperature and bad weather Anti-corrosion protection is ensured by Scotch-Brite® brushed coating The kit is made up of 1 canopy and fixing elements Net weight is 9,741kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Canopy |
| Application | Multi-purpose |
| Range compatibility | PanelSeT SFX, PanelSeT |
| For enclosure nominal dimensions | - |
| Mounting location | On top of enclosure |
| Device composition | 1 canopy, fixing elements |
| Quantity per set | Set of 1 |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Fixing mode | By fixing element - same holes as the eyebolts location |
| Height | 84 mm |
| Width | 848 mm |
| Depth | 549 mm |
| thickness | 1.5 mm |
| Net weight | 9.741 kg |
Packaging
| Package 1 | 1 PCE, 91.000 cm × 66.000 cm × 10.000 cm (L × W × H), 7.200 kg |
| Package 2 | 10 PAM, 120.000 cm × 100.000 cm × 55.000 cm (L × W × H), 85.000 kg |
