Schneider Electric NSYSCX10060
Stainless canopy 304L, Scotch Brite® finish, for enclosures W1000xD600 mm.
- MPN
- NSYSCX10060
- EAN
- 3606480155437
- Category
- PanelSeT SFX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

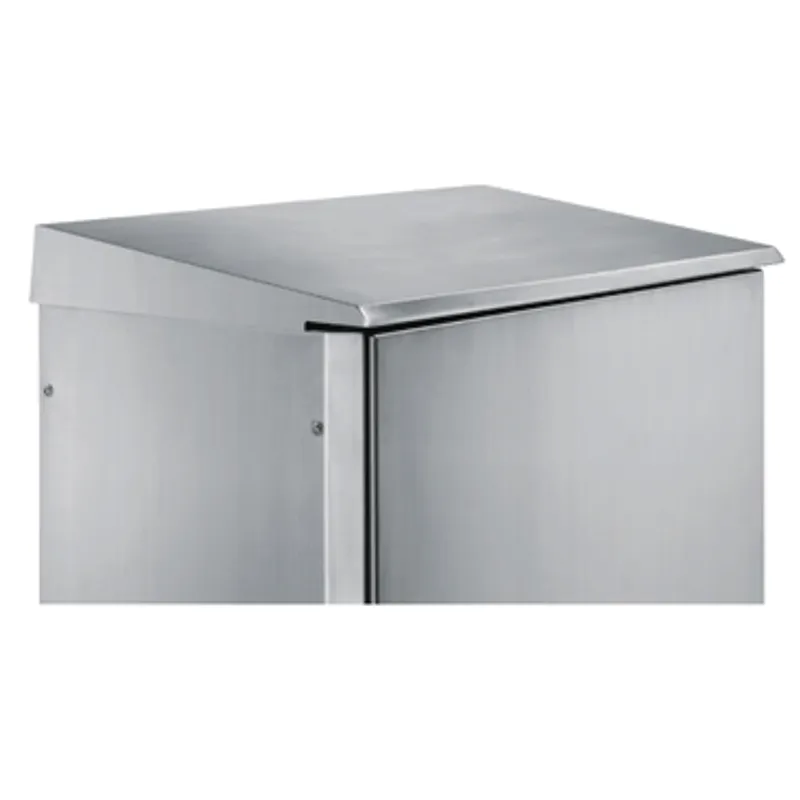

What is the Schneider Electric NSYSCX10060?
Multi-purpose canopy for PanelSeT SFX enclosures The canopy is to be installed on all enclosure models with 1000mm width and 600mm depth The width is 1048mm The depth is 649mm The height is 84mm Fixed by fixing element - same holes as the eyebolts location on top of enclosure The canopy is made from 1,5mm stainless steel 304L Provides high resistance to impacts, temperature and bad weather Anti-corrosion protection is ensured by Scotch-Brite® brushed coating The kit is made up of 1 canopy and fixing elements Net weight is 11,697kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Canopy |
| Application | Multi-purpose |
| Range compatibility | PanelSeT SFX, PanelSeT |
| For enclosure nominal dimensions | - |
| Mounting location | On top of enclosure |
| Device composition | 1 canopy, fixing elements |
| Quantity per set | Set of 1 |
| Material | Stainless steel 304L |
| Surface finish | Scotch-Brite® brushed |
| Fixing mode | By fixing element - same holes as the eyebolts location |
| Height | 84 mm |
| Width | 1048 mm |
| Depth | 649 mm |
| thickness | 1.5 mm |
| Net weight | 11.697 kg |
Packaging
| Package 1 | 1 PCE, 113.000 cm × 66.000 cm × 10.000 cm (L × W × H), 12.000 kg |
| Package 2 | 10 PAM, 120.000 cm × 100.000 cm × 55.000 cm (L × W × H), 133.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSCX10060: frequently asked questions
When can NSYSCX10060 be shipped?
NSYSCX10060 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSCX10060 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSCX10060 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSCX10060, subject to availability and destination.
