Schneider Electric NSYSCMX8040

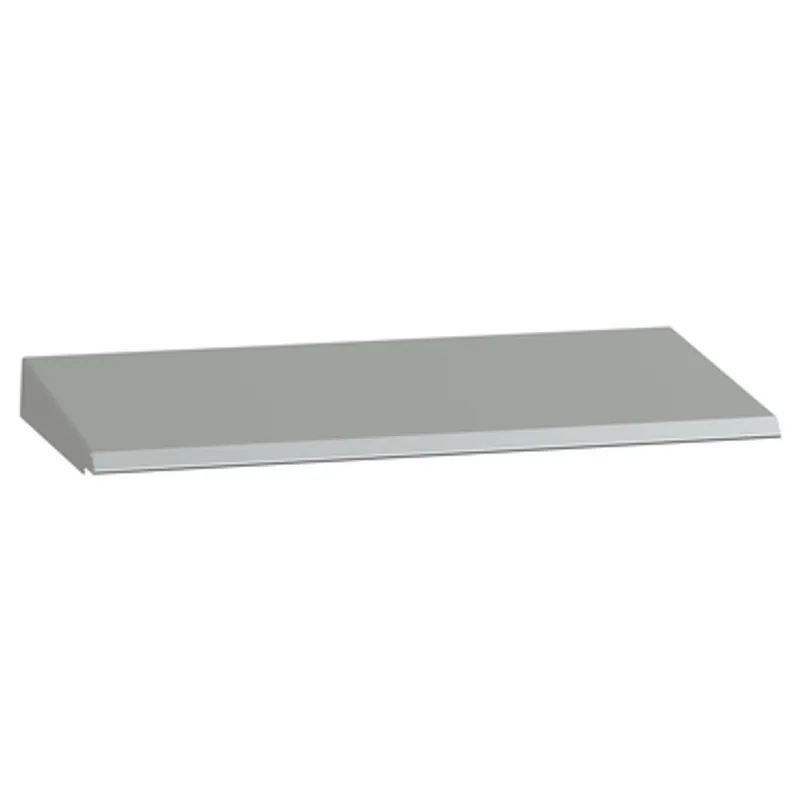

Stainless canopy 304L for PanelSeT SM, Scotch Brite® finish, for enclosures W800xD400 mm
- MPN
- NSYSCMX8040
- EAN
- 3606489677060
- Category
- PanelSeT SMX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSCMX8040?
Multi-purpose canopy for PanelSeT SMX enclosures The canopy is to be installed on all enclosure models with 800mm width and 400mm depth The width is 806mm The depth is 422mm The height is 75mm Fixed by fixing element - same holes as the eyebolts location on top of enclosure The canopy is made from 1,5mm stainless steel 304L (color RAL 7035) Provides high resistance to impacts, temperature and bad weather Anti-corrosion protection is ensured by Scotch-Brite® brushed coating The kit is made up of 1 canopy and fixing elements Net weight is 7,0kg
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Canopy |
| Application | Multi-purpose |
| Range compatibility | PanelSeT SMX |
| For enclosure nominal dimensions | - |
| Mounting location | On top of enclosure |
| Device composition | 1 canopy, fixing elements |
| Quantity per set | Set of 1 |
| Material | Stainless steel 304L |
| Colour | Grey (RAL 7035) |
| Surface finish | Scotch-Brite® brushed |
| Fixing mode | By fixing element - same holes as the eyebolts location |
| Height | 75 mm |
| Width | 806 mm |
| Depth | 422 mm |
| thickness | 1.5 mm |
| Net weight | 7.0 kg |
Packaging
| Package 1 | 1 PCE, 91.500 cm × 45.500 cm × 9.500 cm (L × W × H), 6.316 kg |
| Package 2 | 10 PAM, 120.000 cm × 100.000 cm × 55.000 cm (L × W × H), 75.160 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYSCMX8040: frequently asked questions
When can NSYSCMX8040 be shipped?
NSYSCMX8040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYSCMX8040 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYSCMX8040 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYSCMX8040, subject to availability and destination.
