Schneider Electric NSYSCMX10030

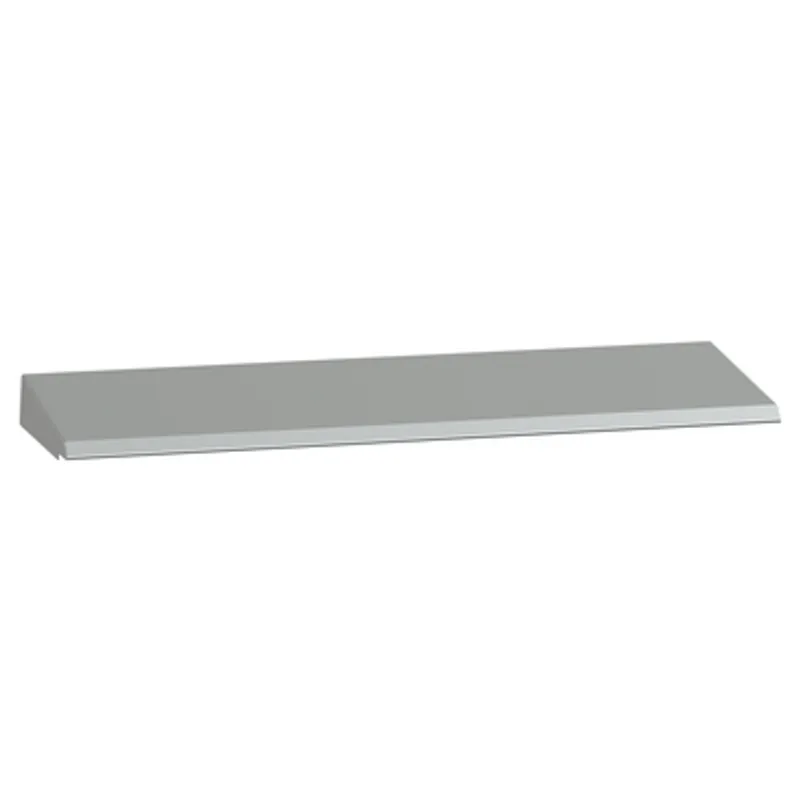

Stainless canopy 304L for PanelSeT SM, Scotch Brite® finish, for enclosures W1000xD300 mm
- MPN
- NSYSCMX10030
- EAN
- 3606489676995
- Category
- PanelSeT SMX
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYSCMX10030?
Multi-purpose canopy for PanelSeT SMX enclosures. The canopy is to be installed on all enclosure models with 1000mm width and 300mm depth. The width is 1008mm. The depth is 322mm. The height is 42mm, Fixed by 4 screws - screw type M6 - same holes as the eyebolts location on top of enclosure. The canopy is made from 1,5mm stainless steel 304L (color RAL 7035). Provides high resistance to impacts, temperature and bad weather. Anti-corrosion protection is ensured by Scotch-Brite® brushed coating. The kit is made up of 1 canopy and fixing elements. Net weight is 6,9kg.
Specifications
Specifications
| Range | PanelSeT |
| Accessory / separate part category | Enclosure accessory |
| Product or component type | Canopy |
| Application | Multi-purpose |
| Range compatibility | PanelSeT SMX |
| For enclosure nominal dimensions | - |
| Mounting location | On top of enclosure |
| Device composition | 1 canopy, fixing elements |
| Quantity per set | Set of 1 |
| Material | Stainless steel 304L |
| Colour | Grey (RAL 7035) |
| Surface finish | Scotch-Brite® brushed |
| Fixing mode | By 4 screws - screw type M6 - same holes as the eyebolts location |
| Height | 42 mm |
| Width | 1008 mm |
| Depth | 322 mm |
| thickness | 1.5 mm |
| Net weight | 6.9 kg |
| Mounting diameter | 8 mm |
Packaging
| Package 1 | 1 PCE, 111.000 cm × 36.000 cm × 9.500 cm (L × W × H), 6.630 kg |
| Package 2 | 10 P12, 120.000 cm × 80.000 cm × 64.000 cm (L × W × H), 76.500 kg |
