Schneider Electric NSYS3X4620

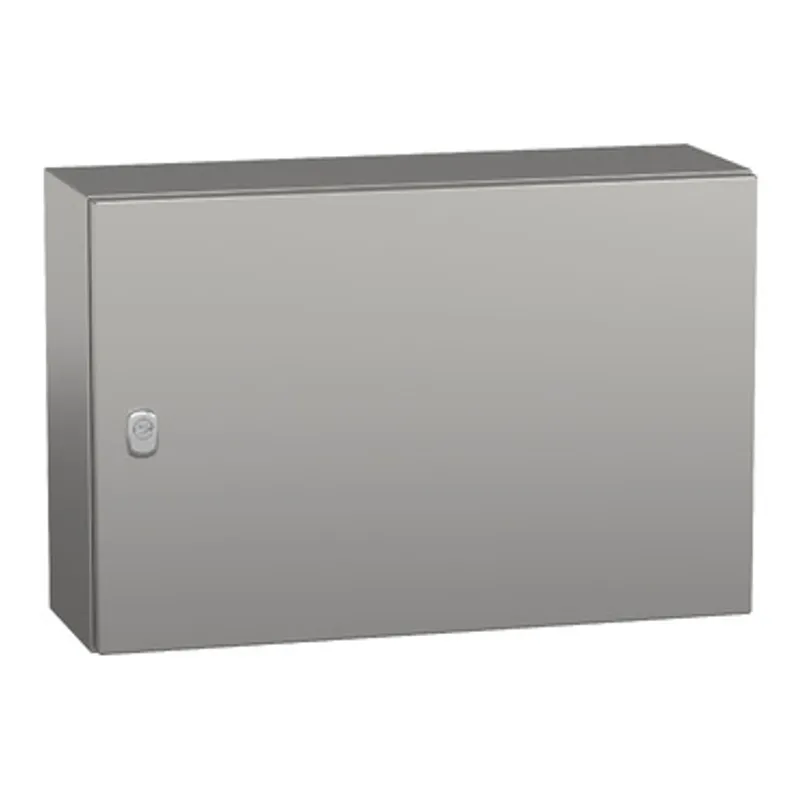

Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 400x600x200mm, IP66
- MPN
- NSYS3X4620
- EAN
- 3606480155161
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X4620?
"PanelSet S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and resistance to corrosion" "It is certified CAN/CSA 22 and UL 508 type A, and has a nominal height, width and depth of 400mm, 600mm and 200mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish, and features a single piece body, cross-shaped structure and gutter shaped front rail" "The door has a reversible (120°) opening side and is secured with a 3mm double-bar lock" "The door can be removed for maintenance purposes" "The enclosure has an IK10 (IEC62262) rating for high impact and an IP66 (IEC60529) rating for high resistance to dust and water" "The net weight of the enclosure is 9,124kg"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |

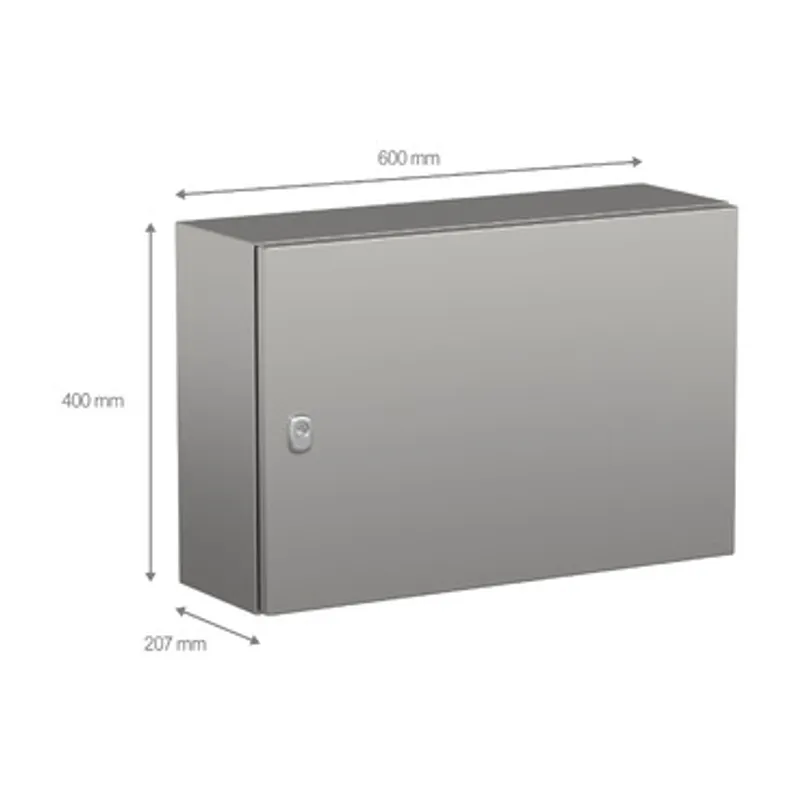

| nominal height | 400 mm |
| nominal width | 600 mm |
| nominal depth | 200 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 9.124 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | CAN/CSA 22, UL 508 type A |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Specific hygiene, Corrosive |
Packaging
| Package 1 | 1 PCE, 62.000 cm × 41.000 cm × 22.000 cm (L × W × H), 9.124 kg |
| Package 2 | 30 PAM, 120.000 cm × 100.000 cm × 200.000 cm (L × W × H), 293.500 kg |
