NSYS3X3315HWall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 300x300x150mm, IP66
Schneider Electric NSYS3X4320H

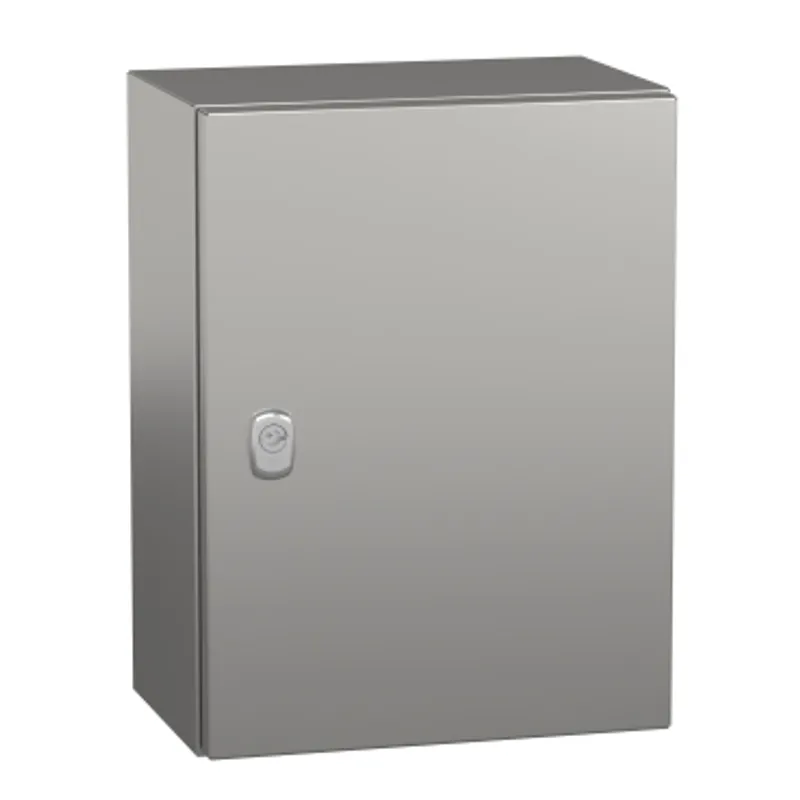

Wall mounted enclosure, PanelSeT S3X, stainless steel 316L, plain door, 400x300x200mm, IP66
- MPN
- NSYS3X4320H
- EAN
- 3606480155123
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X4320H?
"PanelSet S3X stainless steel 316L wall-mounting enclosure is perfect for multi-purpose applications and is designed for use in harsh environments" "It is certified to CAN/CSA 22 and UL 508 type A, and has a IK10 (IEC62262) rating and IP66 (IEC60529) rating for high resistance to dust and water" "The enclosure has a nominal height, width and depth of 400mm, 300mm and 200mm respectively" "The enclosure is made with Scotch-Brite® brushed surface finish and has a single piece body with a cross-shaped structure and a gutter shaped front rail" "It has one plain door with a 3mm double-bar lock, which can be opened up to 120°, allowing easy access to the equipment inside" "The door can be removed for maintenance purposes and the reversible opening side of the door allows for flexibility" "The net weight of the enclosure is 5,594kg"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |

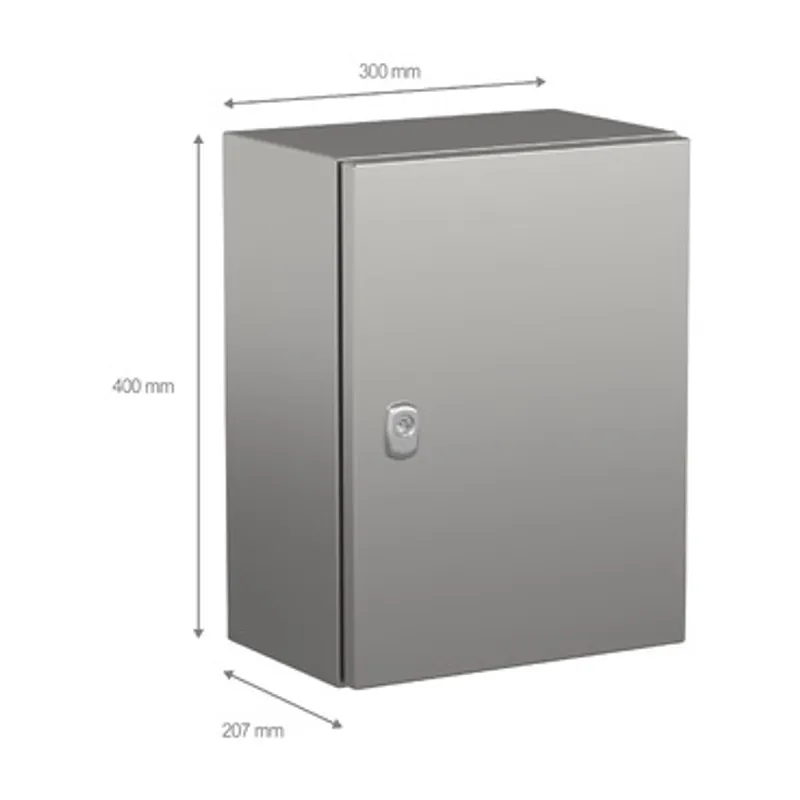

| nominal height | 400 mm |
| nominal width | 300 mm |
| nominal depth | 200 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Lock: zamak, Hinge: stainless steel, Body and door: stainless steel 316L |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 5.594 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | CAN/CSA 22, UL 508 type A |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 41.500 cm × 31.500 cm × 22.000 cm (L × W × H), 5.594 kg |
| Package 2 | 64 PAM, 120.000 cm × 100.000 cm × 181.000 cm (L × W × H), 371.000 kg |
