Schneider Electric NSYS3X5420
Wall mounted enclosure, PanelSeT S3X, stainless steel 304L, plain door, 500x400x200mm, IP66
- MPN
- NSYS3X5420
- EAN
- 3606480155185
- Category
- PanelSeT S3X
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3X5420?

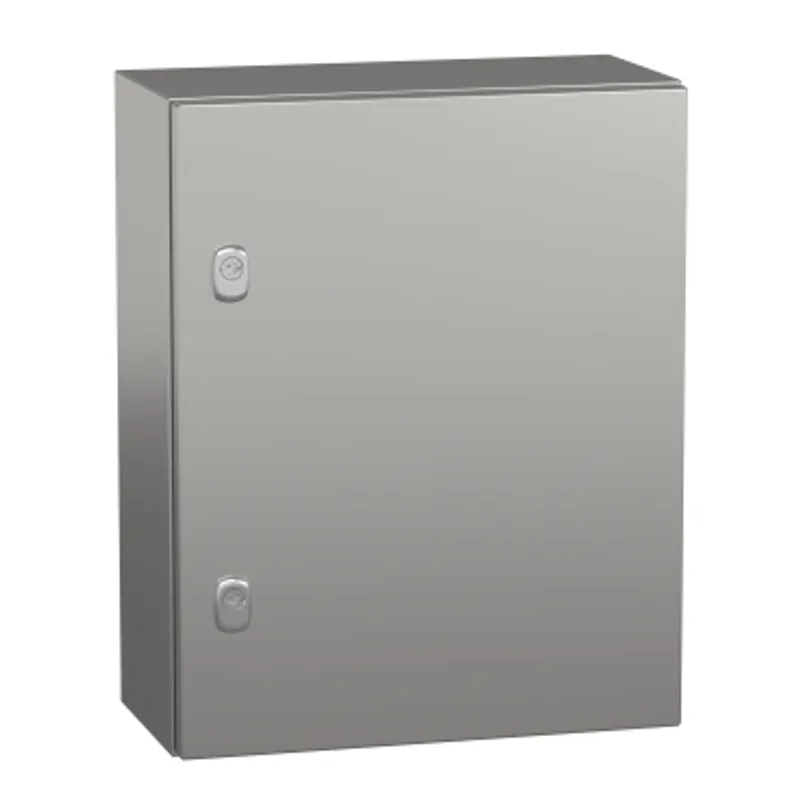

Spacial S3X stainless steel 304L wall-mounting enclosure is designed for multi-purpose applications and is resistant to corrosion It has a nominal height, width and depth of 500mm, 400mm and 200mm respectively The enclosure is made with Scotch-Brite® brushed surface finish and features a single piece body with a cross-shaped structure and gutter shaped front rail The enclosure includes 1 body, 1 lock and 1 door The door can be opened up to 120°, allowing easy access to the equipment inside It is possible to change the opening side of the door (reversible) The door has a two lock points lock with a 3mm double-bar insert The door can be removed for maintenance purposes The net weight of the enclosure is 8,05kg It is certified CAN/CSA 22 and UL 508 type A and has an IK10 rating (IEC 62262) and an IP66 rating (IEC 60529)
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3X |
| enclosure type | Multi-purpose |
| category | Compact enclosure |

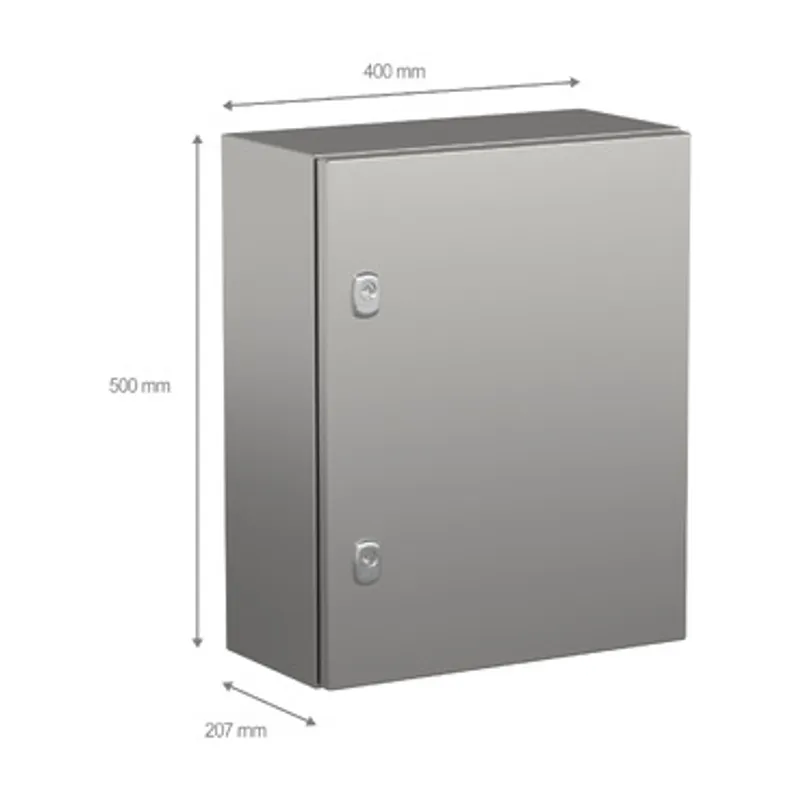

| nominal height | 500 mm |
| nominal width | 400 mm |
| nominal depth | 200 mm |
| product installation | Wall-mounting |
| Device composition | 1 body, 1 lock: door, 1 door |
| Body type | Single piece body, cross-shaped structure, Gutter shaped front rail |
| Door type | Plain |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 2 points lock, 3 mm double-bar |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Without gland plate |
| Accessibility for operation | Front |
| Removable parts | Door by hinges |
| Material | Body and door: stainless steel 304L, Lock: zamak, Hinge: stainless steel |
| Surface finish | Body and door: Scotch-Brite® brushed, Lock: chromium plated |
| Net weight | 8.05 kg |
| Standards | IEC 62208, UL, CUL |
| Product certifications | CAN/CSA 22, UL 508 type A |
| IP degree of protection | IP66 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Environmental characteristic | Corrosive, Specific hygiene |
Packaging
| Package 1 | 1 PCE, 51.500 cm × 41.000 cm × 22.000 cm (L × W × H), 8.050 kg |
| Package 2 | 40 PAM, 120.000 cm × 100.000 cm × 200.000 cm (L × W × H), 342.500 kg |
