Schneider Electric NSYS3HD10840

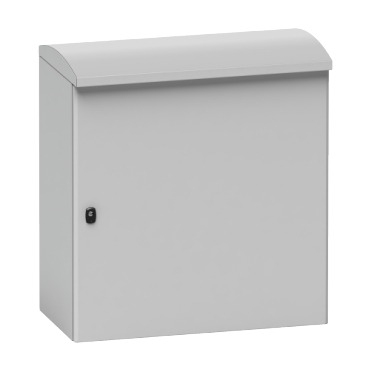

PanelSeT S3HD outdoor heavy duty enclosure - H1062xW800xD430 - IP66
- MPN
- NSYS3HD10840
- EAN
- 3606480672170
- Category
- PanelSeT for outdoors operation
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3HD10840?
"This S3HD is a heavy-duty outdoor enclosure designed for wall-mounting or floor-standing with an optional plinth" "It is suitable for installation in private areas with harsh environments" "The enclosure is constructed with anti-corrosive painted steel that provides corrosion resistance up to C4H level, in accordance with ISO 12944:2018 standards" "The enclosure's doors are reversible up to 120° and are secured with a three-point lock, featuring a 3mm double-bar locking system" "The enclosure's dimensions are nominal, measuring 1062mm in height with a canopy, 800mm in width, and 430mm in depth with a canopy, with a canopy height of 62mm" "It is colored grey (RAL 7035) and has an epoxy-polyester powder surface structured finish" "The enclosure comes with one body, one door, one 3mm double locking system, one door compass, one canopy bolted to the body, one gland plate bolted to the body, and one document holder" "The net weight of the enclosure is 48,7kg" "The S3HD is rated IK10 (IEC 62262) for impact resistance and IP55 (IEC 60529) with a ventilated plinth, and IP66 (IEC 60529) for dust and water protection" "It conforms to UL 508 A 2007, IEC 61969-3 2011 (Bureau Veritas), IEC 61439-5 2010 (Bureau Veritas), IEC 62208 2011 (DEKRA), and ISO 12944 2007 (Bureau Veritas) standards" "The enclosure is also certified by BV, LR, UL, GL, DNV, and cUL" "The enclosure can be fixed to a wall using optional stainless-steel wall fixing lugs or to a post using an optional HD post fixing device" "Additionally, it comes with a ventilated plinth for floor-standing"
Specifications
Specifications
| Range | Spacial |
| Product name | Spacial S3HD |
| Installation type | Multi-purpose |
| Specific application | Outdoor heavy duty |
| Category | Compact enclosure |
| Function available | Ventilation with plinth in option |
| Enclosure nominal height with canopy | 1062 mm |
| Canopy nominal height | 62 mm |
| Enclosure nominal width | 800 mm |
| Enclosure nominal depth with canopy | 430 mm |
| Enclosure nominal depth | 400 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Cable gland plate type | Plain aluminium |
| Installation accessory type | Wall-mounting, Floor-standing with plinth |
| Device composition | 1 body, 1 door, 1 lock, 1 door retainer, 1 canopy, 1 cable gland plate, 1 document pocket |
| Certification | UL conforming to UL 508 A 2007, Bureau Veritas conforming to IEC 61969-3 2011, Bureau Veritas conforming to IEC 61439-5 2010, DEKRA conforming to IEC 62208 2011, Bureau Veritas conforming to ISO 12944 2007 |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Canopy by screws |
| Maximum lifting load | 200 kg |
| Material | Steel with anti-corrosive coating |
| Surface finish | Enclosure: polyester powder |
| Colour | Grey (RAL 7035) |
| Net weight | 48.7 kg |
| Standards | IEC 61439-5, IEC 61969-3, UL 508 A, IEC 62208 |
| IP degree of protection | IP55 with ventilated plinth conforming to IEC 60529 class 2, IP66 enclosure protection |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Climatic withstand | C4H conforming to ISO 12944 720 h salt mist |
| Ambient air temperature for operation | -45…80 °C conforming to IEC 61969-3 class 1 |
| Corrosion withstand | 90…100 % 40 °C conforming to ISO 12944 C4H |
| Environmental withstand | Solar radiation: class 1 up to 1120 W/m² conforming to IEC 61969-3:2011, Surrounding air withstand: class 1 up to 180 km/h conforming to IEC 61969-3:2011, Ultraviolet degradation test: class 1 conforming to ISO 4892-2:2013, Formation of ice and frost: class 1 conforming to IEC 61969-3:2011, Fauna and flora withstand: class 1 conforming to IEC 61969-3:2011, : class 1 conforming to IEC 61969-3:2011 |
| Thermal management options | Fan: 1500 W for a maximum noise level of 60 dB |
Packaging
| Package 1 | 1 PCE, 108.000 cm × 82.000 cm × 44.500 cm (L × W × H), 48.700 kg |
| Package 2 | 4 PAM, 120.000 cm × 100.000 cm × 178.000 cm (L × W × H), 210.000 kg |
