Schneider Electric NSYS3DM8615T
PanelSeT S3DM H800xW600xD150.IP66 IK10 RAL7035. top and bottom.
- MPN
- NSYS3DM8615T
- EAN
- 3606480158513
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DM8615T?

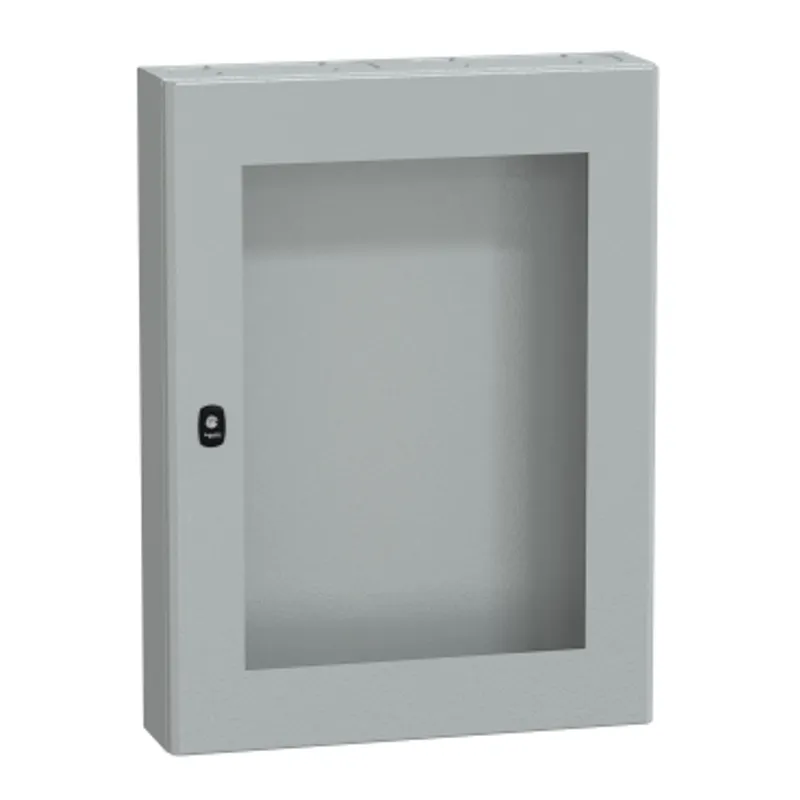

This S3DM is an enclosure designed for wall-mounting The body is made of steel with an epoxy-polyester powder surface finish and the door is made of steel and security glass The enclosure has nominal dimensions of 800mm height, 600mm width, and 150mm depth The doors are secured with a three-point lock and have a 3mm double-bar locking system The enclosure is colored grey (RAL 7035) The enclosure comes with two cable gland plates (top and bottom), one body, one door, one 3mm double locking system, and one document holder The enclosure is rated IK08 (IEC 62262) for impact resistance and IP66 (IEC 60529) for dust and water protection It conforms to IEC 62208 and is certified by LR, GL, BV, UL, cUL, and DNV The enclosure is also designed for installation of modular chassis DLM The enclosure can be fixed on a wall by means of optional stainless-steel wall fixing lugs or on a post by means of an optional HD post fixing device This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is BV, DNV, GL, LR, c. UL certified.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DM |
| Application | Modular distribution application |
| Category | Compact enclosure |
| Enclosure nominal height | 800 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Product destination | For installation of modular chassis DLM |
| Device composition | 2 cable gland plate: top and bottom, 1 body, 1 door, 1 lock |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | GL, BV, UL, cUL, DNV |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 81.500 cm × 61.000 cm × 19.500 cm (L × W × H), 19.910 kg |
| Package 2 | 12 PAM, 120.000 cm × 100.000 cm × 177.000 cm (L × W × H), 252.000 kg |
