Schneider Electric NSYS3DM7515T
PanelSeT S3DM H700xW500xD150.IP66 IK10 RAL7035. top and bottom.
- MPN
- NSYS3DM7515T
- EAN
- 3606480158520
- Category
- PanelSeT CRN
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3DM7515T?

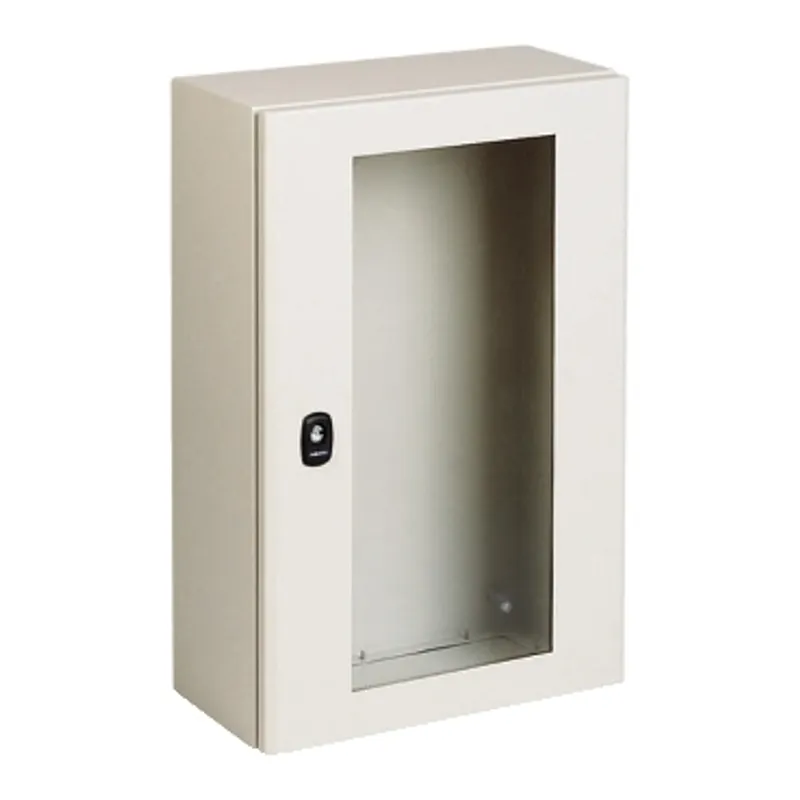

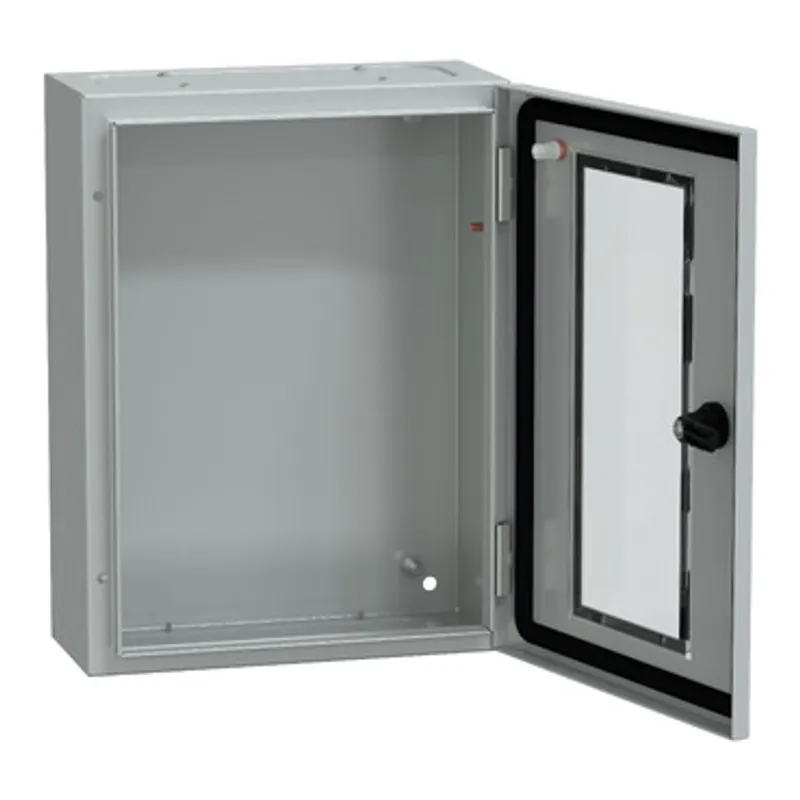

The Spacial S3DM wall-mounting compact enclosure comes in grey colour and designed for modular distribution application. This compact enclosure is composed of body, cable gland plate, door, lock. The compact enclosure is made of steel (body), steel and security glass (door), making it durable and resistant. It has IP66 and IK08 protection level, which can help protect against impact, water and dust. The dimensions are (W) 500 mm x (H) 700 mm x (D) 150 mm. It is designed for installation of a modular chassis DLM. It features a gutter-shaped front rail double sheet thickness, single piece body. The door type is glazed, it has 1 door(s) and the door opening side is reversible. Equipped with a 3 points lock, 3 mm double-bar lock type. Featuring a epoxy-polyester powder surface finish, which ensures a bright, even and inviting finish. This device is qualified as a green premium product, with minimal use of hazardous substances. This compact enclosure is BV, DNV, GL, LR, c. UL certified.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3DM |
| Application | Modular distribution application |
| Category | Compact enclosure |

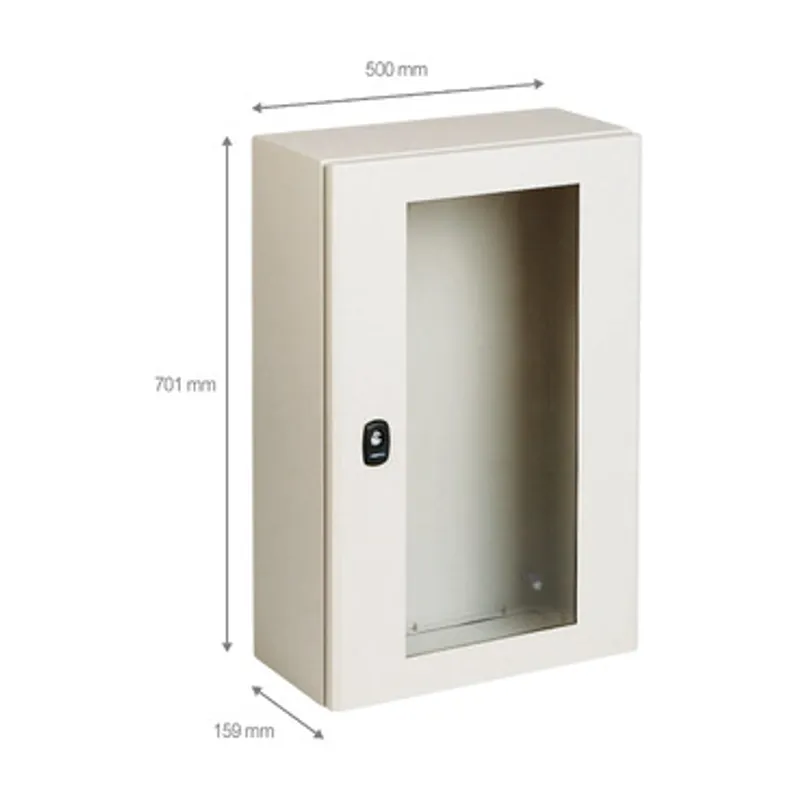

| Enclosure nominal height | 700 mm |
| Enclosure nominal width | 500 mm |
| Enclosure nominal depth | 150 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Product destination | For installation of modular chassis DLM |
| Device composition | 2 cable gland plate: top and bottom, 1 body, 1 door, 1 lock |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | UL, DNV, cUL, GL, BV |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
Packaging
| Package 1 | 1 PCE, 71.000 cm × 51.000 cm × 19.500 cm (L × W × H), 12.722 kg |
| Package 2 | 20 PAM, 120.000 cm × 100.000 cm × 158.000 cm (L × W × H), 267.000 kg |
