Schneider Electric NSYS3D4320

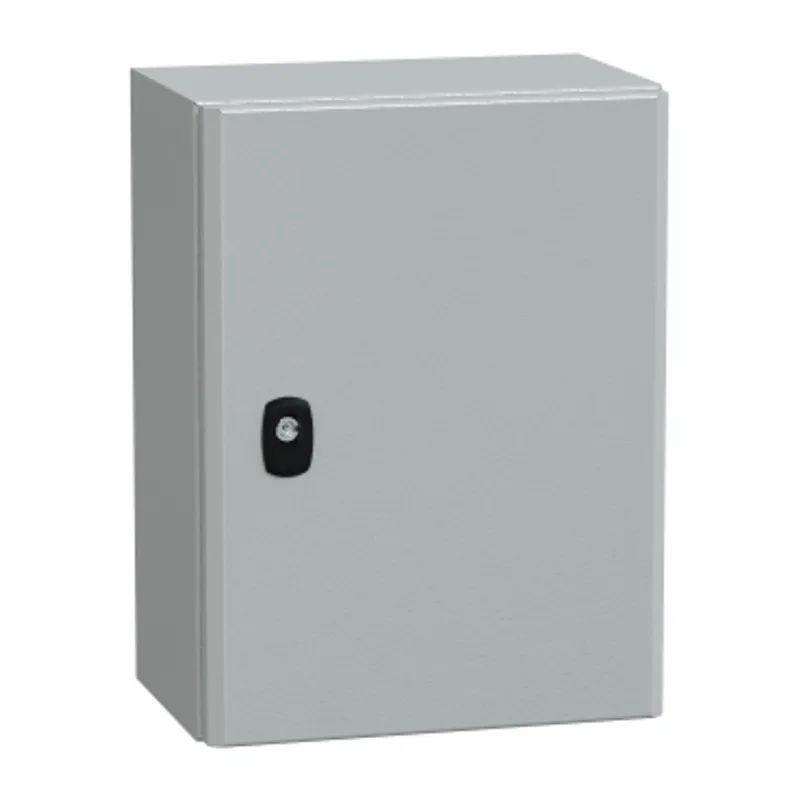

Wall mounted steel enclosure, PanelSeT S3D, plain door, without mounting plate, 400x300x200mm, IP66, IK10
- MPN
- NSYS3D4320
- EAN
- 3606480159602
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D4320?

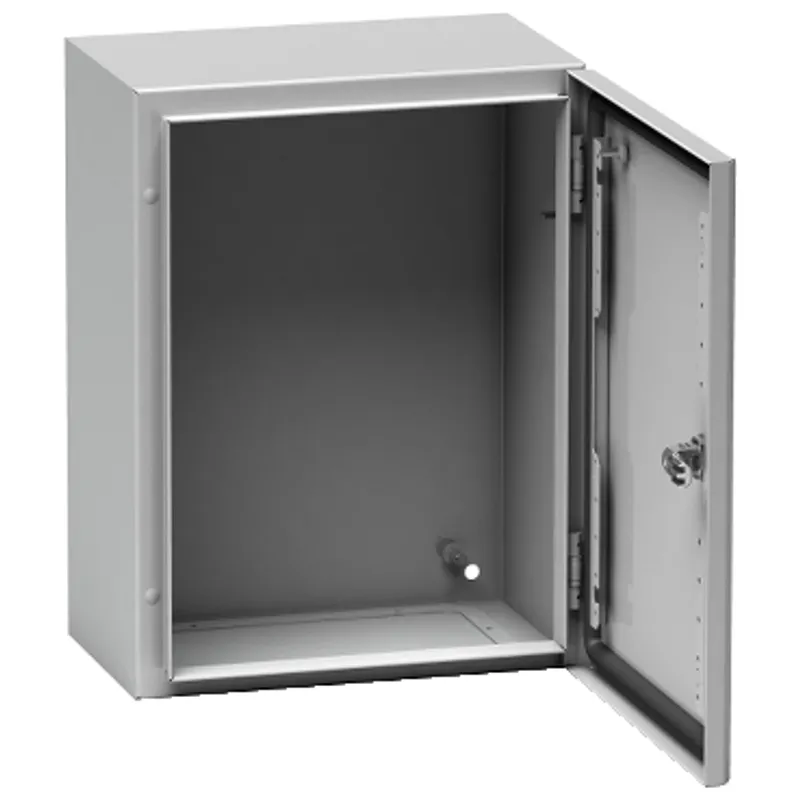

Spacial S3D is a multi-purpose monobloc wall-mounting enclosure with an enclosure nominal height, width and depth of 400mm, 300mm and 200mm respectively The enclosure is made of steel, with a grey (RAL 7035) surface finish and an epoxy-polyester powder coating It has a single door with a reversible (120°) opening side and a 3mm double-bar lock The enclosure also features a cable gland plate, which can be removed for maintenance purposes The net weight of the enclosure is 5kg The enclosure is certified by DNV, UL, BV, cUL, GL and LR It has a NEMA 4X/13 rating and a IK10 (IEC62262) rating for high impact resistance, as well as an IP66 rating (IEC60529) for dust and water resistance The enclosure has a single piece body and a gutter-shaped front rail double sheet thickness for added strength and durability The accessibility for operation is from the front The packaging is reusable after assembly.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |

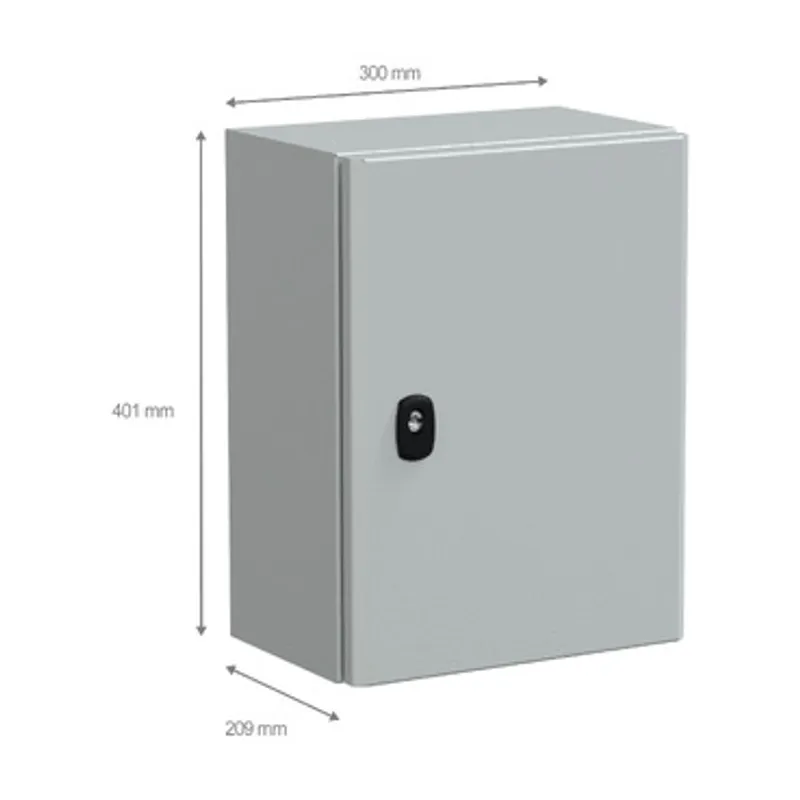

| Enclosure nominal height | 400 mm |
| Enclosure nominal width | 300 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | DNV, UL, BV, cUL, GL |
| Net weight | 5 kg |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 41.500 cm × 31.500 cm × 25.000 cm (L × W × H), 5.758 kg |
| Package 2 | 56 PAM, 120.000 cm × 100.000 cm × 182.000 cm (L × W × H), 339.000 kg |
