Schneider Electric NSYS3D3420T
Wall mounted steel enclosure, PanelSeT S3D, transparent door, without mounting plate, 300x400x200mm, IP66, IK08
- MPN
- NSYS3D3420T
- EAN
- 3606480159640
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

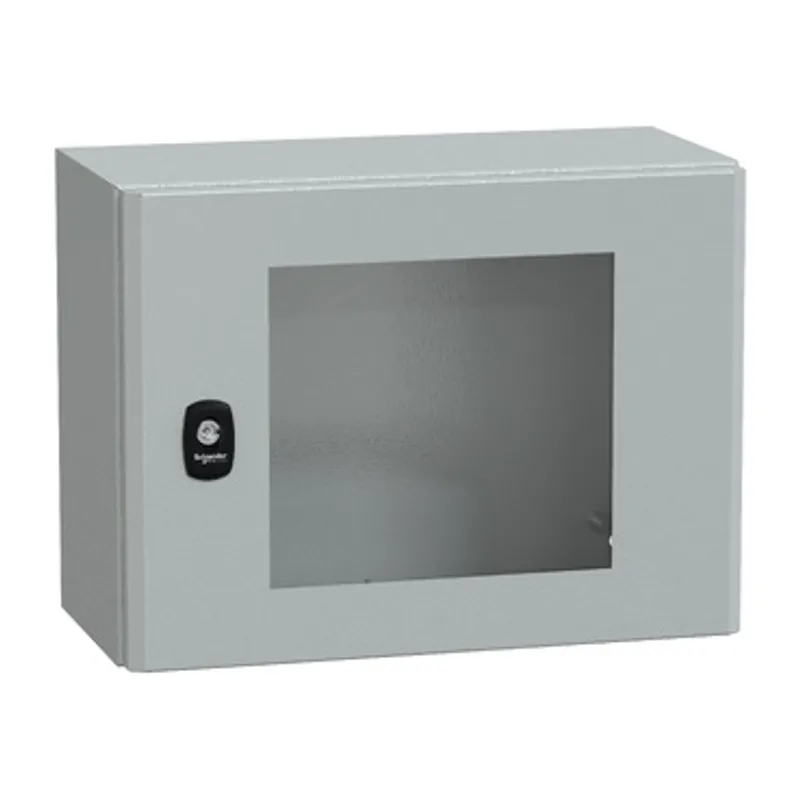

What is the Schneider Electric NSYS3D3420T?
Spacial S3D is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments It has a nominal height, width and depth of 300mm, 400mm and 200mm, respectively The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish It consists of a body, one glazed door, one lock, and one cable gland plate The door can be opened up to 120°, allowing easy access to the equipment inside It is also possible to change the opening side of the door (reversible) The door has a 3mm double-bar lock for added security The door and the cable gland plate can be removed for maintenance purposes The net weight of the enclosure is 5,856kg
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |

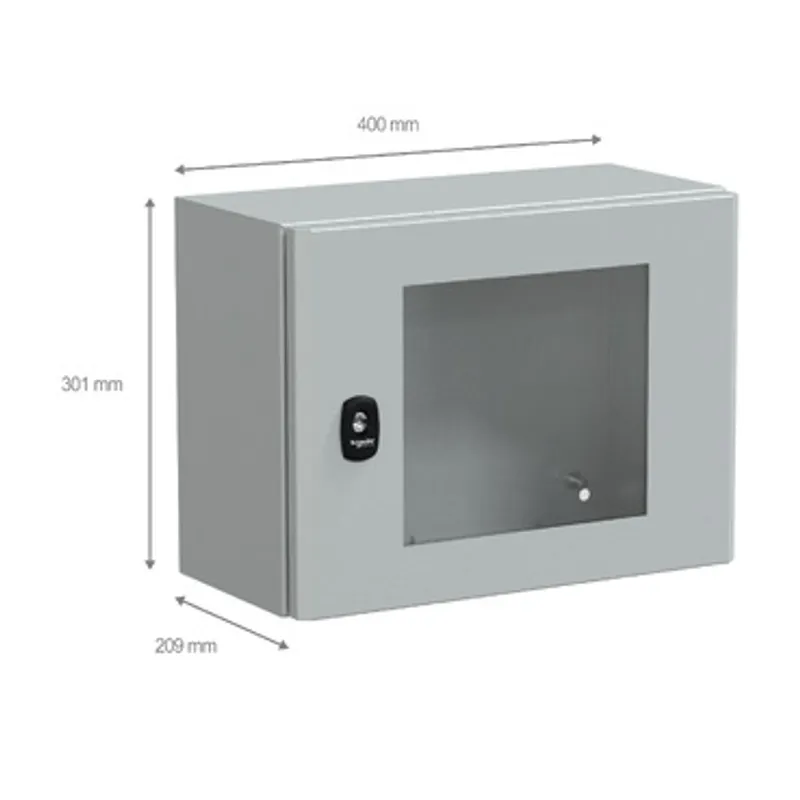

| Enclosure nominal height | 300 mm |
| Enclosure nominal width | 400 mm |
| Enclosure nominal depth | 200 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 1 door, 1 lock, 1 cable gland plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208, UL, CUL |
| Product certifications | UL, BV, cUL, DNV, GL |
| Net weight | 5.856 kg |
| Electromagnetic compatibility | Electromagnetic field immunity test |
| NEMA degree of protection | NEMA 4X/13 |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP66 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 41.000 cm × 31.500 cm × 24.500 cm (L × W × H), 5.856 kg |
| Package 2 | 56 PAM, 120.000 cm × 100.000 cm × 180.200 cm (L × W × H), 341.000 kg |
