Schneider Electric NSYS3D101240DP

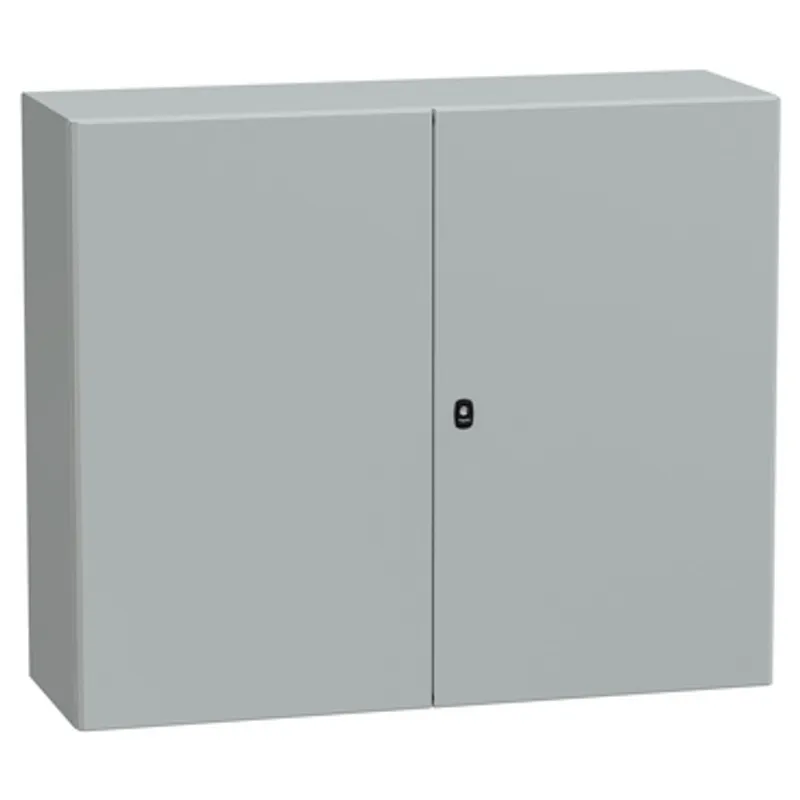

Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1200x400mm, IP55, IK10
- MPN
- NSYS3D101240DP
- EAN
- 3606480160257
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D101240DP?
Spacial S3D is a multi-purpose wall-mounting enclosure from the Spacial range, designed for use in harsh environments It is made of steel with an epoxy-polyester powder finish, and has a nominal height, width and depth of 1000mm, 1200mm and 400mm, respectively It is grey in colour (RAL7035) and has a net weight of 90kg The enclosure is composed of a body, two cable gland plates, two plain doors with a three-point lock and a 3mm double-bar insert, and a galvanised steel mounting plate The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible)
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 1200 mm |
| Enclosure nominal depth | 400 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 2 door with lock, 1 mounting plate |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | UL, GL, cUL, BV, DNV |
| Net weight | 90 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 122.000 cm × 101.000 cm × 45.500 cm (L × W × H), 90.500 kg |
| Package 2 | 2 PAL, 122.000 cm × 101.000 cm × 116.000 cm (L × W × H), 194.000 kg |
