Schneider Electric NSYS3D101240D

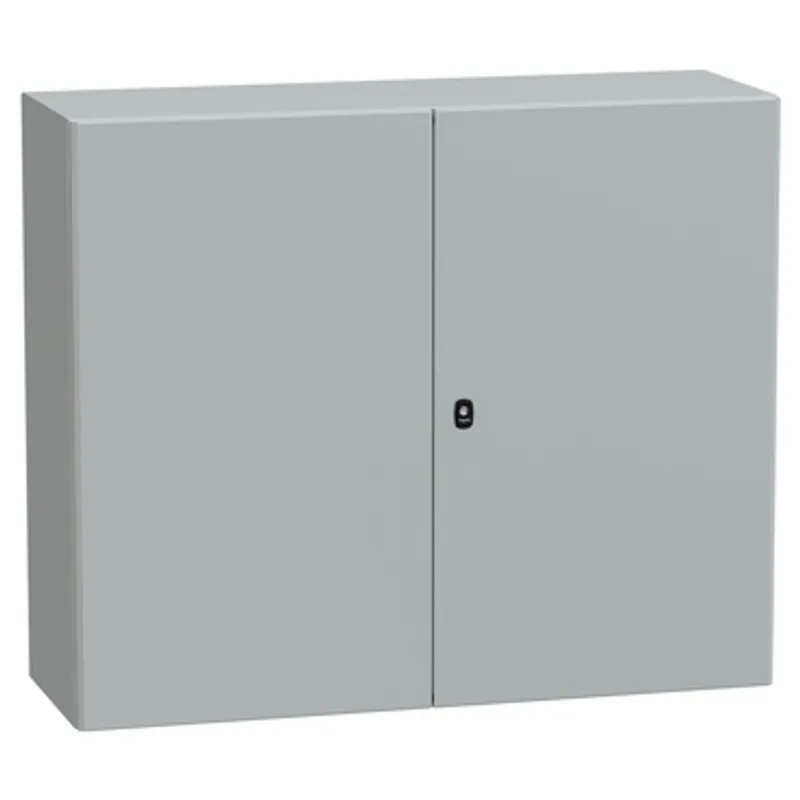

Wall mounted steel enclosure, PanelSeT S3D, double plain door, without mounting plate, 1000x1200x400mm, IP55, IK10
- MPN
- NSYS3D101240D
- EAN
- 3606480160264
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D101240D?
Spacial S3D steel wall-mounting enclosure is designed for multi-purpose applications in harsh environments It has an IK10 (IEC62262) rating, making it highly resistant to impacts, and an IP55 (IEC60529) rating, making it resistant to dust and water The enclosure has a nominal height, width and depth of 1000mm, 1200mm and 400mm, respectively It is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish The enclosure consists of a body, two cable gland plates, two plain doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 1200 mm |
| Enclosure nominal depth | 400 mm |
| Door type | Plain |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 1 lock, 2 door |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Steel |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | cUL, UL, DNV, BV, GL |
| Net weight | 68 kg |
| Electromagnetic compatibility | Electromagnetic field immunity test |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 123.000 cm × 103.000 cm × 45.000 cm (L × W × H), 72.000 kg |
| Package 2 | 2 PAL, 123.000 cm × 100.000 cm × 116.000 cm (L × W × H), 159.000 kg |
