Schneider Electric NSYS3D101030DT

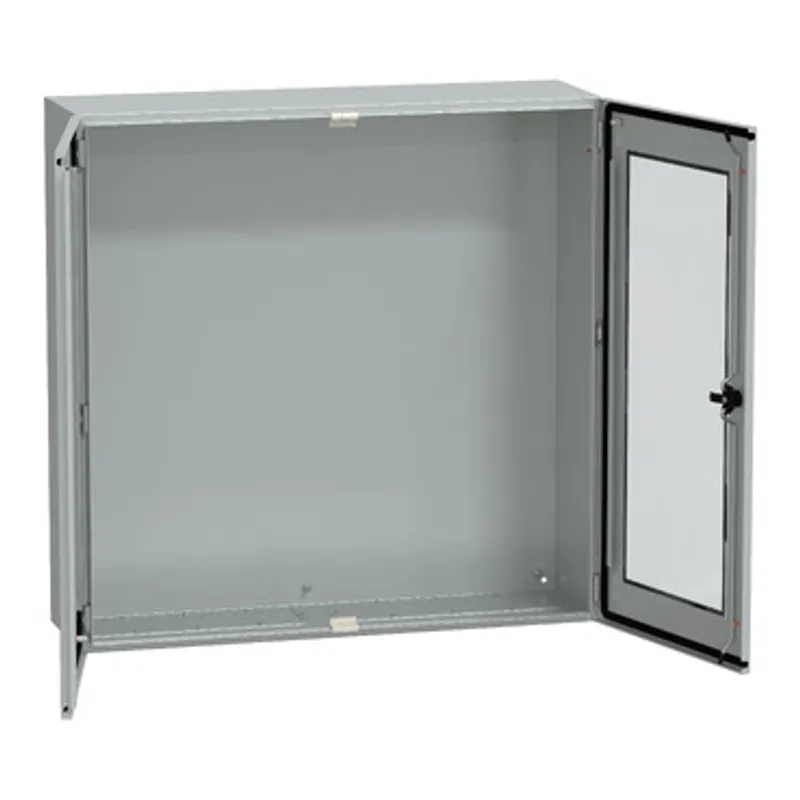

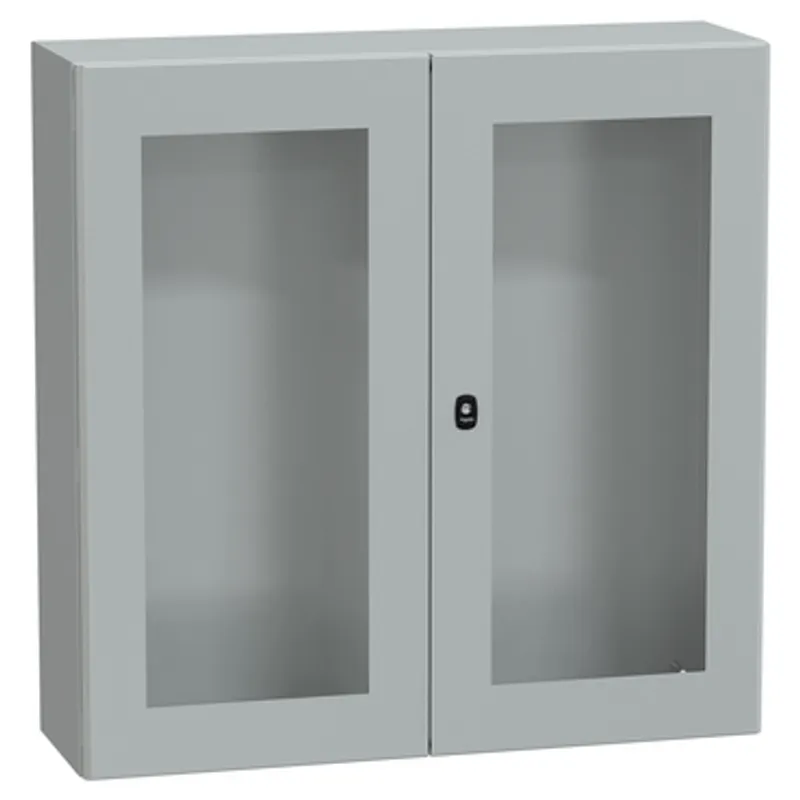

Wall mounted steel enclosure, PanelSeT S3D, double transparent door, without mounting plate, 1000x1000x300mm, IP55, IK08
- MPN
- NSYS3D101030DT
- EAN
- 3606480160318
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D101030DT?
Spacial S3D is a multi-purpose steel wall-mounting enclosure designed for use in harsh environments The enclosure has a nominal height, width and depth of 1000mm, 1000mm and 300mm, respectively It is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish and has a net weight of 45kg The enclosure consists of a body, two cable gland plates, two glazed doors and a lock The doors can be opened up to 120°, allowing easy access to the equipment inside Furthermore, it is possible to change the opening side of the doors (reversible) The doors have a three-point lock with a 3mm double-bar insert The doors and the cable gland plates can be removed for maintenance purposes The enclosure has been certified with BV, LR, UL, GL, DNV and cUL, and has IK08 (IEC62262) and IP55 (IEC60529) ratings for high impact and dust and water resistance
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Glazed |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 1 lock, 2 door |
| body type | Gutter-shaped front rail double sheet thickness, Single piece body |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws |
| Material | Body: steel, Door: steel and security glass |
| Surface finish | Epoxy-polyester powder |
| Colour | Grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | BV, UL, GL, DNV, cUL |
| Net weight | 45 kg |
| Electromagnetic compatibility | Electromagnetic field immunity test |
| IK degree of protection | IK08 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 102.600 cm × 102.400 cm × 35.400 cm (L × W × H), 43.666 kg |
| Package 2 | 3 PAL, 120.000 cm × 101.000 cm × 114.000 cm (L × W × H), 144.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3D101030DT: frequently asked questions
When can NSYS3D101030DT be shipped?
NSYS3D101030DT is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3D101030DT in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3D101030DT and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3D101030DT, subject to availability and destination.
