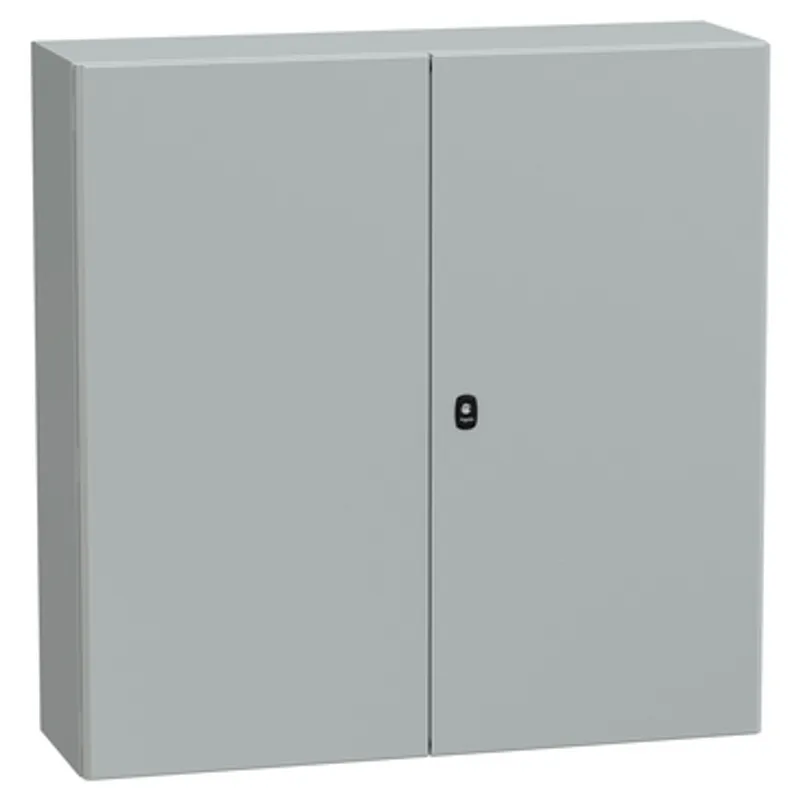

Schneider Electric NSYS3D101030DP
Wall mounted steel enclosure, PanelSeT S3D, double plain door, with mounting plate, 1000x1000x300mm, IP55, IK10
- MPN
- NSYS3D101030DP
- EAN
- 3606480160325
- Category
- PanelSeT S3D
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3D101030DP?
"PanelSeT S3D is a multi-purpose wall-mounting enclosure designed for use in harsh environments" "It is made of steel and has a nominal height, width and depth of 1000mm, 1000mm and 300mm, respectively" "The enclosure is grey-coloured (RAL7035) with an epoxy-polyester powder surface finish" "The enclosure consists of a body, two cable gland plates, two plain doors and a lock" "The doors can be opened up to 120°, allowing easy access to the equipment inside" "Furthermore, it is possible to change the opening side of the doors (reversible)" "The doors have a three-point lock with a 3mm double-bar insert" "The doors and the cable gland plates can be removed for maintenance purposes" "The net weight of the enclosure is 64kg" "The enclosure has a mounting plate made of galvanised steel and is certified by GL, BV, LR, UL, DNV and cUL" "It has an IK10 (IEC62262) rating and an IP55 (IEC60529) rating" "The variant particularity includes a single piece body and a gutter-shaped front rail double sheet thickness" "The accessibility for operation is at the front"
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3D |
| Application | Multi-purpose |
| Category | Compact enclosure |
| Enclosure nominal height | 1000 mm |
| Enclosure nominal width | 1000 mm |
| Enclosure nominal depth | 300 mm |
| Door type | Plain |
| Mounting plate description | Plain |
| Type of gland plate | Standard |
| Installation accessory type | Wall-mounting |
| Device composition | 1 body, 2 cable gland plate, 2 door with lock, 1 mounting plate |
| body type | Single piece body, Gutter-shaped front rail double sheet thickness |
| Number of doors | Front face: 2 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 points lock, 3 mm double-bar |
| Accessibility for operation | Front |
| Removable parts | Door by hinges, Cable gland plate by screws, Mounting plate by fixing element |
| Material | Enclosure: steel, Mounting plate: galvanised steel |
| Surface finish | Enclosure: epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035) |
| Standards | IEC 62208 |
| Product certifications | GL, BV, UL, DNV, cUL |
| Net weight | 64 kg |
| IK degree of protection | IK10 conforming to IEC 62262 |
| IP degree of protection | IP55 conforming to IEC 60529 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 103.000 cm × 102.000 cm × 35.000 cm (L × W × H), 62.400 kg |
| Package 2 | 3 PAL, 120.000 cm × 102.000 cm × 114.000 cm (L × W × H), 200.000 kg |
