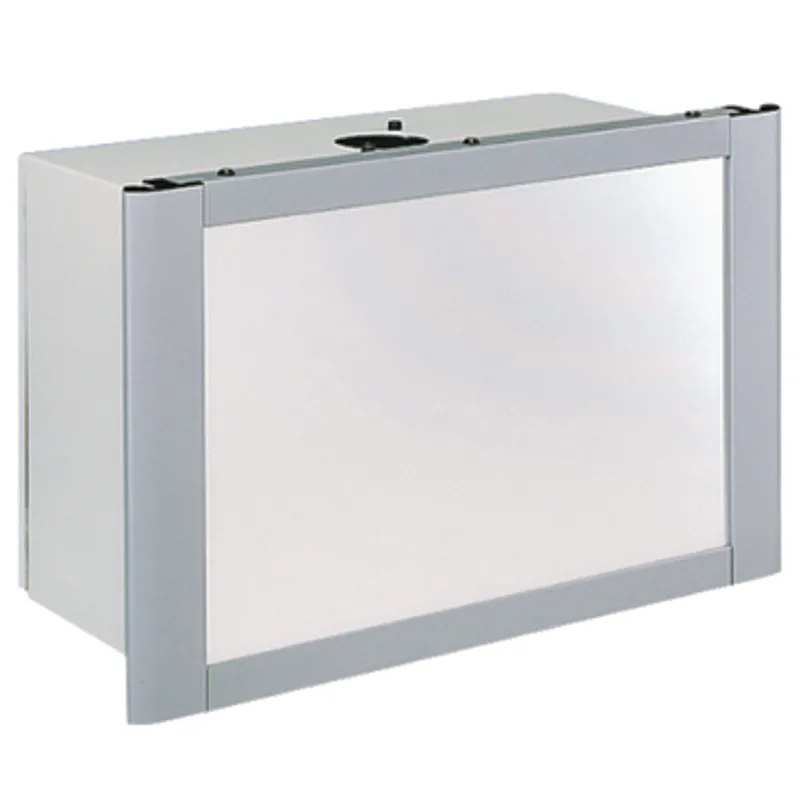

Schneider Electric NSYS3CM406025
HMI encl. PanelSeT S3CM H400xW600xD250 IP54, IK10, RAL7035. Rear door.
- MPN
- NSYS3CM406025
- EAN
- 3606480212918
- Category
- PanelSet S3CM
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Schneider Electric NSYS3CM406025?
Schneider Electric HMI encl. PanelSeT S3CM H400xW600xD250 IP54, IK10, RAL7035. Rear door., manufacturer part number NSYS3CM406025. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| Range | PanelSeT |
| Product name | PanelSeT S3CM |
| Application | Human-machine dialogue application |
| Category | Control enclosure |
| Enclosure nominal height | 400 mm |
| Enclosure nominal width | 600 mm |
| Enclosure nominal depth | 250 mm |
| Installation accessory type | Suspension system |
| Product destination | Interface |
| Device composition | 1 body, 1 door with lock, 2 rail, 1 reinforcement plate, 1 front trim frame, 1 cable gland plate |
| Body type | Single piece body |
| Door type | Plain |
| Number of doors | Rear: 1 door(s) |
| Door opening side | Reversible (120 °) |
| Lock type | 3 mm double-bar lock |
| Mounting plate description | Without mounting plate |
| Type of gland plate | Standard |
| Accessibility for operation | Rear |
| Removable parts | Door by hinges, Trim frame by screws, 2 rails by screws, Cable gland plate by screws |
| Material | Enclosure and front face: steel, Trim frame: aluminium |
| Surface finish | Epoxy-polyester powder |
| Colour | Enclosure: grey (RAL 7035), Front face: grey (RAL 7040) |
| Standards | UL |
| Net weight | 16.7 kg |
| IP degree of protection | IP54 conforming to IEC 60529 |
| IK degree of protection | IK10 conforming to IEC 62262 |
| Coverage | Core product |
Packaging
| Package 1 | 1 PCE, 62.000 cm × 41.000 cm × 26.500 cm (L × W × H), 15.550 kg |
| Package 2 | 26 PAM, 120.000 cm × 100.000 cm × 199.000 cm (L × W × H), 417.000 kg |
Downloads & documentation
Official documents from Schneider Electric, downloaded directly from the manufacturer.
Data sheets & manuals
NSYS3CM406025: frequently asked questions
When can NSYS3CM406025 be shipped?
NSYS3CM406025 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS3CM406025 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS3CM406025 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS3CM406025, subject to availability and destination.
