Available on request

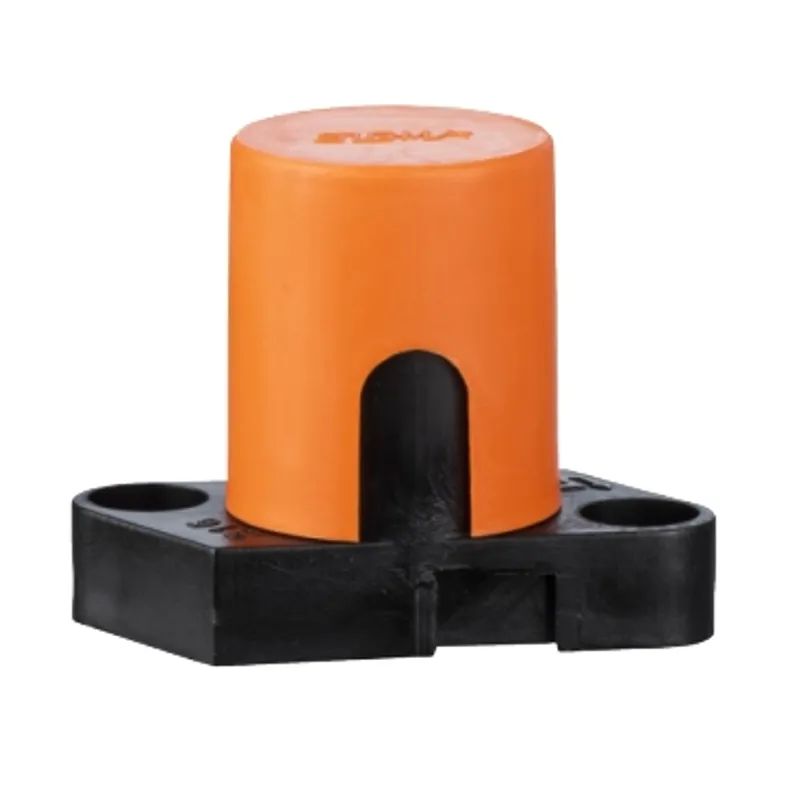

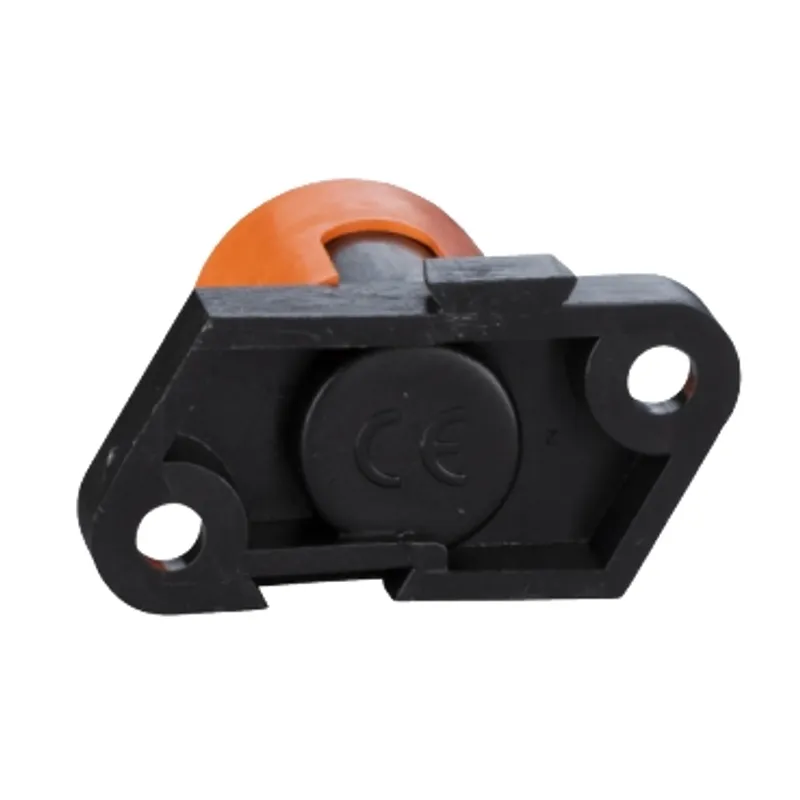

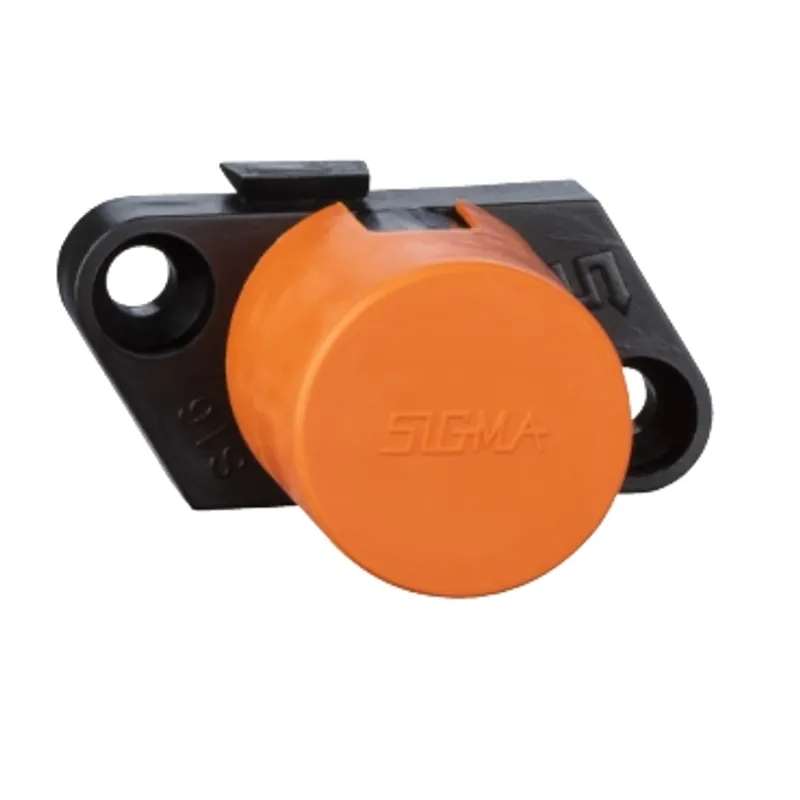

Safety terminals section 1x35mm² . Supply : 20
MPN: NSYS2535 · Brand: Schneider Electric
Price on request
Request a Quote
12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
Quick facts
| Availability | Confirmed on request |
| Category | PanelSeT CRN |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
| Weight | 32 kg |
Shipping & availability
When can NSYS2535 be shipped?
NSYS2535 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up NSYS2535 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for NSYS2535 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for NSYS2535, subject to availability and destination.
Specifications
Specifications
| Accessory / separate part category | Power distribution |
| Product or component type | Safety terminal |
| Device application | Multi-purpose |
| Range compatibility | PanelSeT, Thalassa |
| Device composition | 1 sigma terminal |
| Quantity per set | Set of 20 |
| Nominal cross section | 35 mm² 1 |
| Mounting location | On mounting accessories |
| Material | Polyamide 6 matt black for base, Polypropylene orange for cover, MS-58 brass for terminal, Zinc-plated and dichromated steel for ring |
| Height | 38 mm |
| Width | 23 mm |
| Depth | 46 mm |
| Diameter | 23 mm |
| Unit Type of Package 1 | PCE |
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 13.500 cm |
| Package 1 Length | 0.850 cm |
| Package 1 Weight | 32.000 g |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 20 |
| Package 2 Height | 4.000 cm |
| Package 2 Width | 13.500 cm |
| Package 2 Length | 17.000 cm |
| Package 2 Weight | 640.000 g |
| Unit Type of Package 3 | CAR |
| Number of Units in Package 3 | 560 |
| Package 3 Height | 29.500 cm |
| Package 3 Width | 36.000 cm |
| Package 3 Length | 36.000 cm |
| Package 3 Weight | 17.920 kg |
| Warranty | 18 months |
